48 Mechanical installation – Frames R6 to R9
Unpacking and examining the delivery

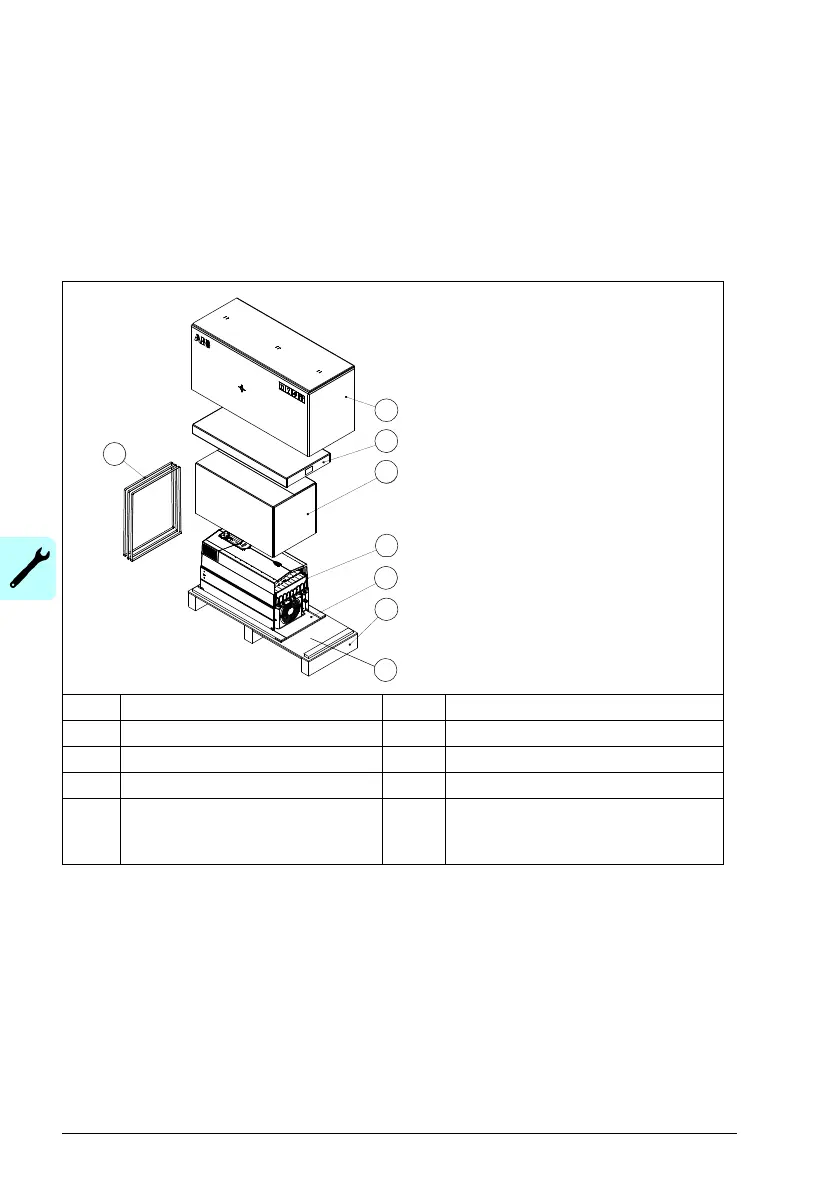

 Transport package contents
The flange mounting kit package is on the side of the drive package or sent
separately. Examine that all items are present and there are no signs of damage.
Read the data on the type designation label of the drive to make sure that the drive is
of the correct type.
To unpack:
• Cut the straps (1).
• Remove the cardboard cover (2).
• Lift the flange mounting kit (3).
• Remove the cardboard sleeve (4).
• Attach lifting hooks to the lifting eyes of the drive (5). Lift the drive with a hoist.
Item Description Item Description
1 Straps 5 Drive with factory installed options
2 Cardboard cover 6 Pallet stopper
3 Flange mounting kit 7 Pallet tray
4 Cardboard sleeve 8 Printed manuals and quick guides,
manuals CD and multilingual residual
voltage warning stickers
5
3
2
4
6
7
1
8

ABB ACS580-01 Series Specifications

General

Series	ACS580-01
Category	DC Drives
Output Voltage	0 to Input Voltage
Output Power Range	0.75 kW to 250 kW
Communication Protocols	Modbus RTU
Protection Features	Overcurrent, overvoltage, undervoltage, overload, short circuit, overtemperature
Enclosure Rating	IP21
Ambient Temperature Range	-15 to 50 °C
Dimensions	Varies by model (refer to datasheet for specific dimensions)
Weight	Varies depending on frame size
Control Method	Scalar Control (V/f)
