Mechanical installation – Frames R6 to R9 49

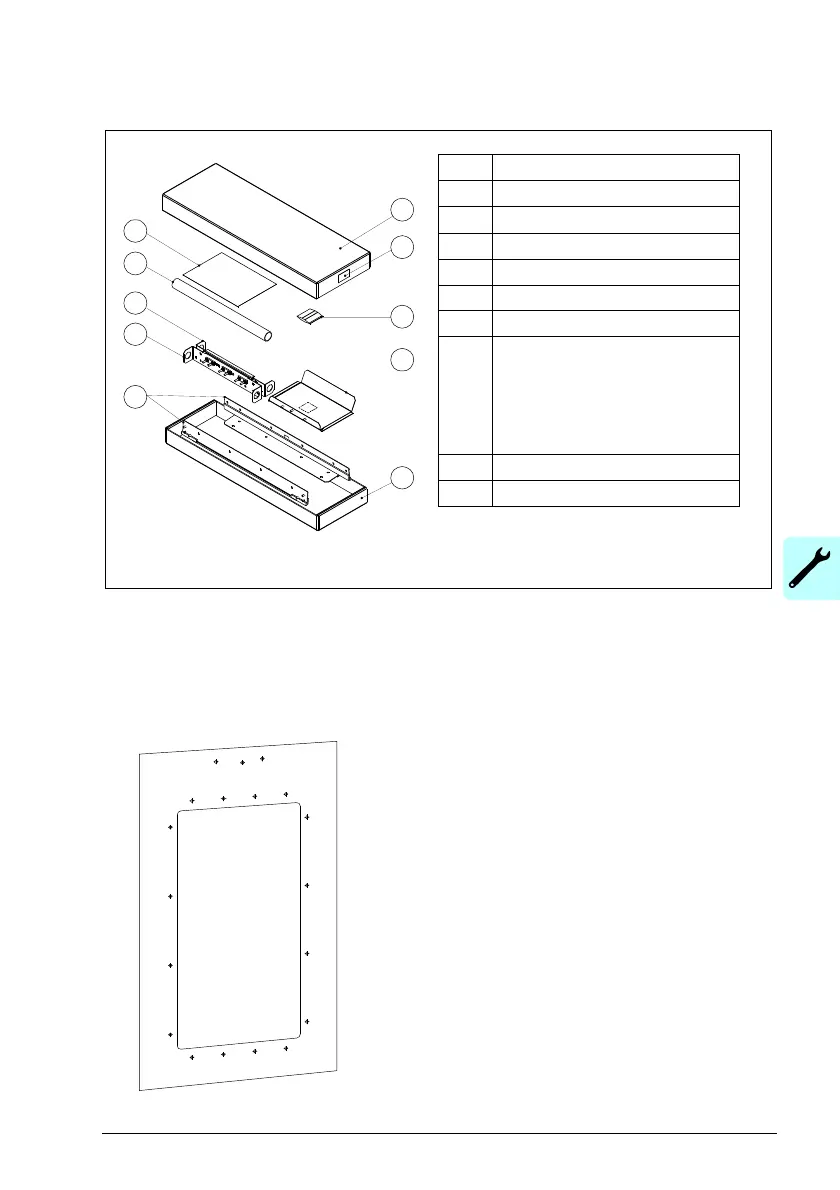

Flange kit contents
Mounting template
The flange mounting kit package includes a template in actual size for drilling the
attaching holes and cutting the hole in the mounting plate.
An example template is shown below.
* The delivery does not include the Rivet or Kalei
nuts for the M6 screws.
1 Quick guide
2 Mounting template
3Top bracket
4 Bottom bracket
5 Side brackets
6 Top cardboard cover
7 Option kit package label
8 Screw package:
• M6 nut (11 pcs)
• M6×10 T30 (12 pcs) *
• M6×25 T25 (R6…R8: 16 pcs,
R9: 18 pcs)
9 Hood (required for UL type 12)
10 Cardboard tray
8
2
1
7
5
3
4
6
9
10
