3.4.3.1 Insert new day routines

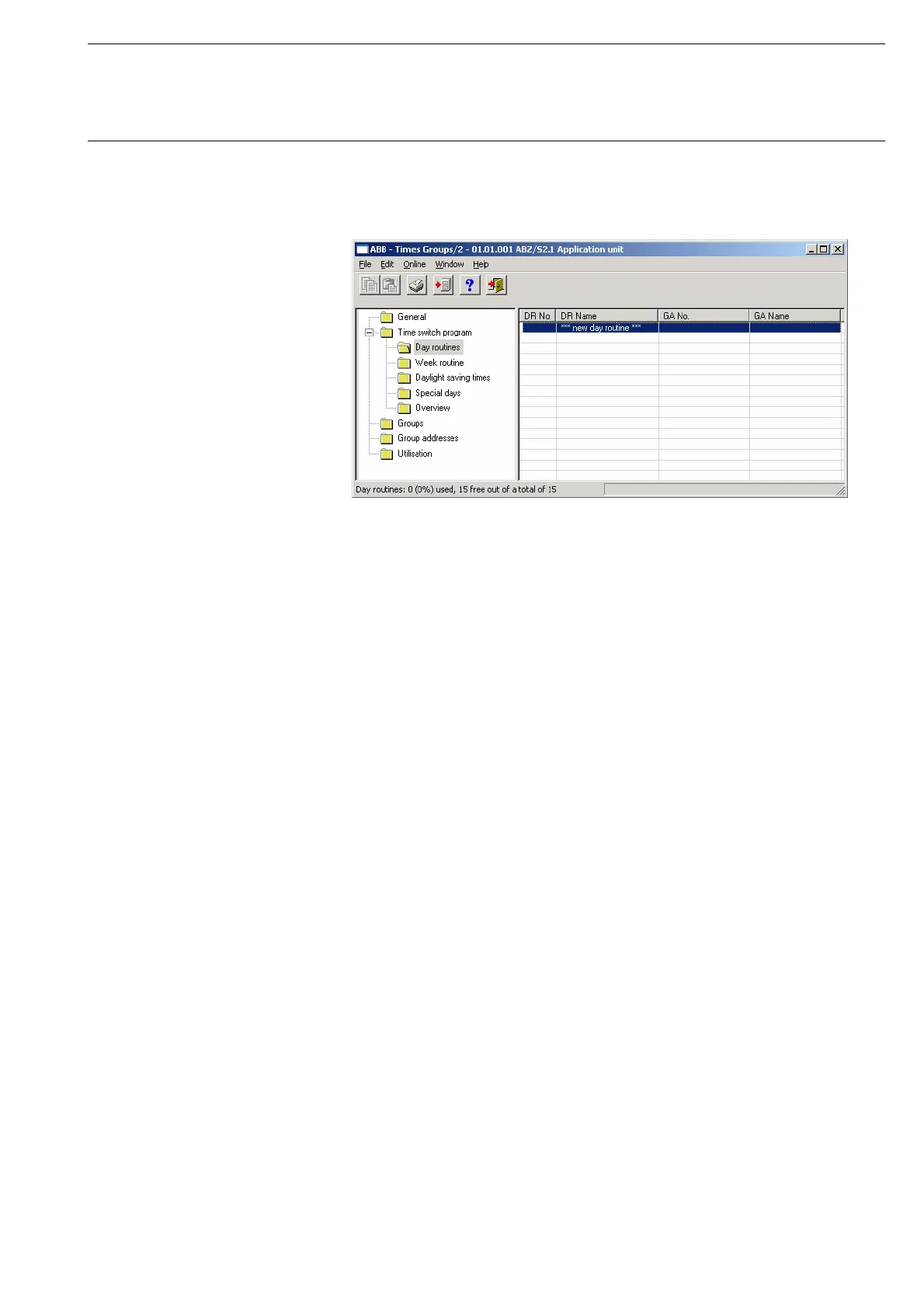

Fig. 46: Dialog window: “Insert new day routines”
To insert a day routine, first select Time switch program in the selection area
followed by Day routines.
The relevant table is activated in the right-hand window.
The table is divided into DR No., DR Name, GA No. and GA Name.
The meaning of the individual columns is as follows:
DR No., DR Name
This column displays the consecutive number of the day routine (DR No.)
and the name of the day routine (DR Name).
GA No., GA Name
If a telegram is able to activate a day routine, then the associated number
(DR No.) and the name (DR Name) of the group address is displayed which
can activate or deactivate this day routine.
Note: Day routines can be activated and/or deactivated by the time
switch program and/or by a telegram.
