ABB i-
bus
®
KNX
Planning and application
244
2CDC508134D
0202 | FC
A/S 1
.x.x.1
4.1.6

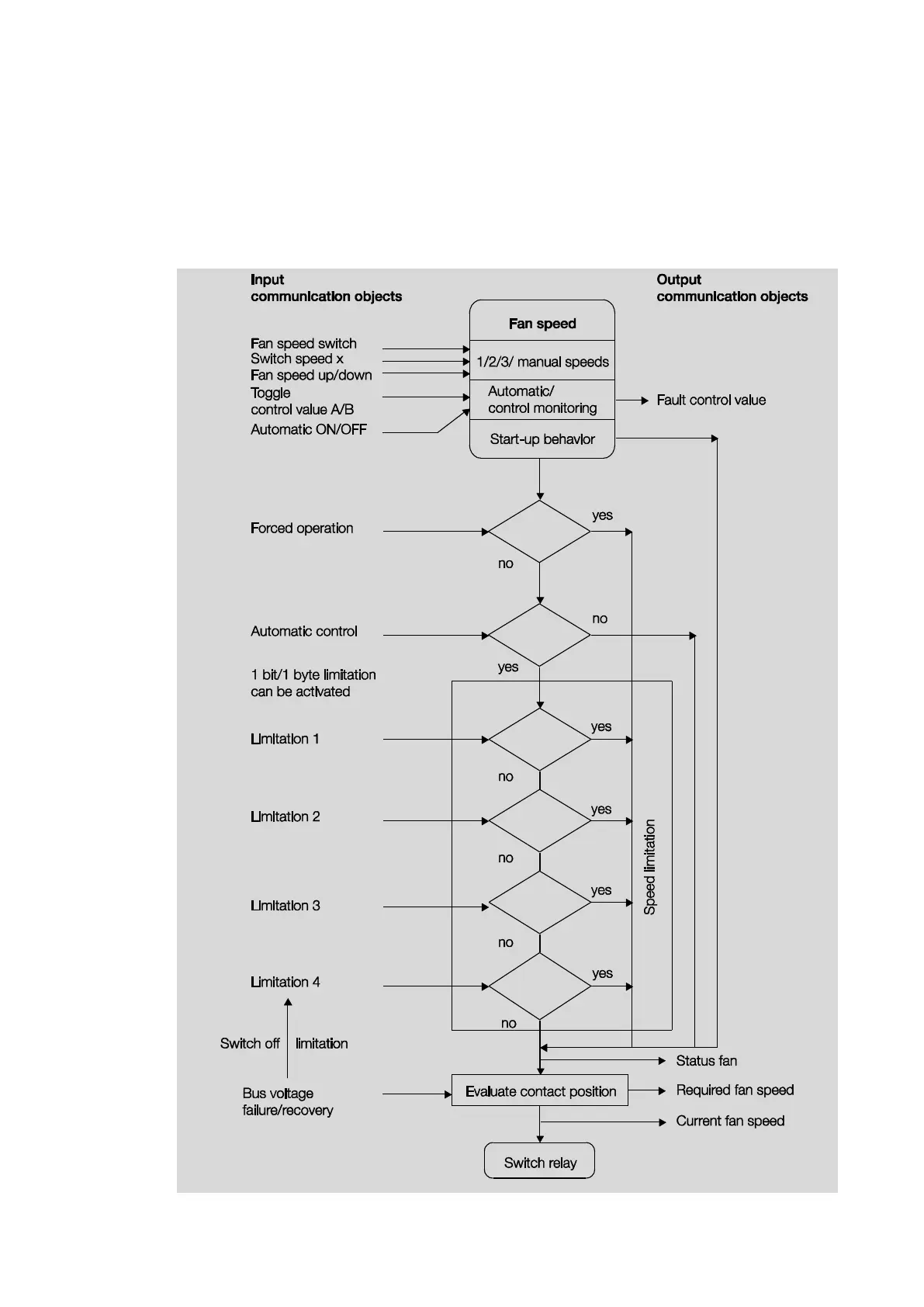

Fan operation functional diagram
The following illustration indicates the sequence in w
hich the fan control functions are processed.
communication objects, which lead to the same box, have the same priority and are processed in the
sequence in which the telegrams are received.
245
247
