ABB i-bus EIB User Manual

ABB i-bus
®
KNX
Commissioning
FCA/S 1.x.x.1 | 2CDC508134D0202 191
3.2.4.4 Parameter window a: PT100, PT1000 and KTY

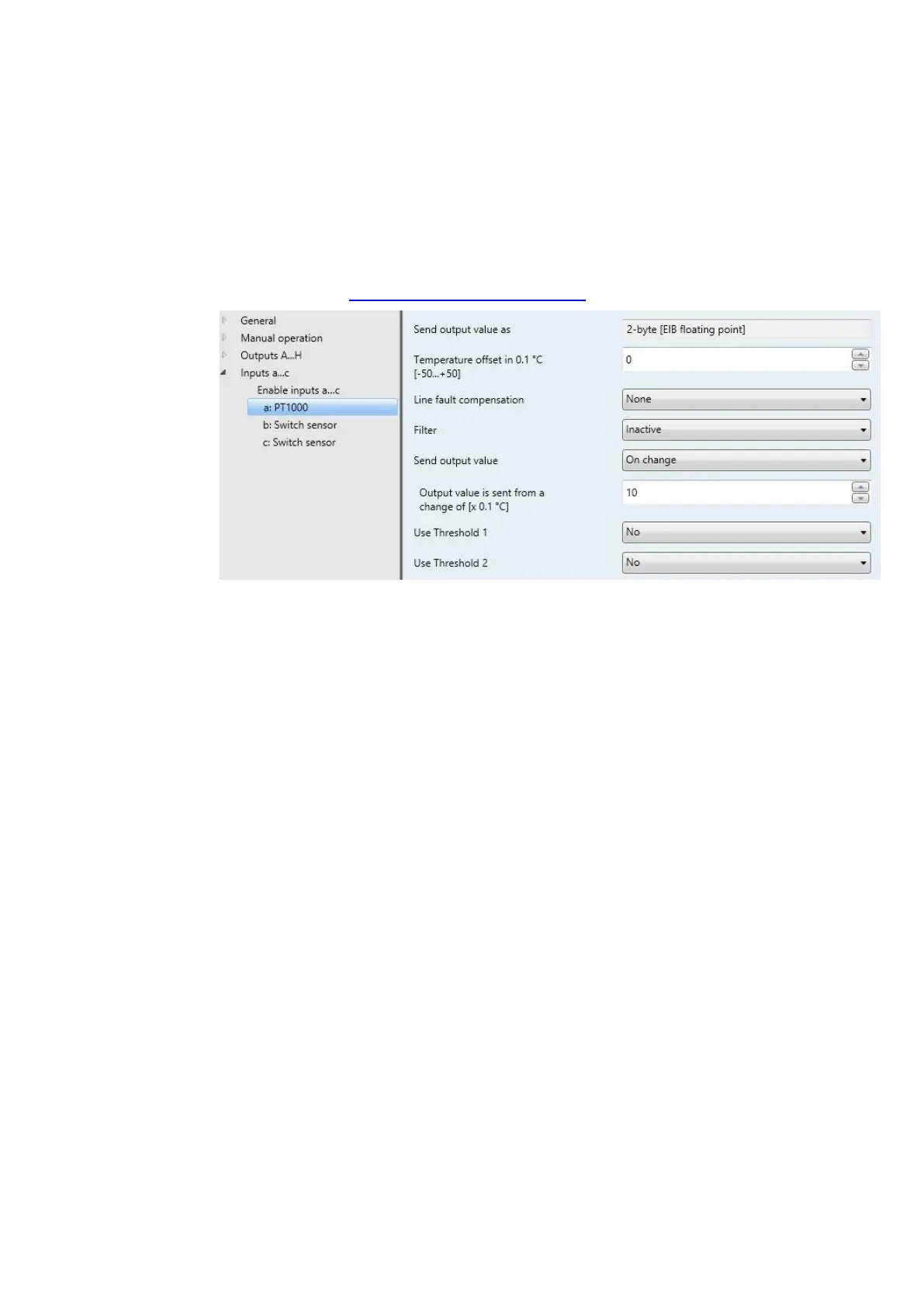

3.2.4.4.1 Parameter window a: PT100/PT1000
This operating mode allows the sending of temperature values.
This parameter window is visible if one of the options PT100 or PT1000 has been selected in the
parameter Input a in Parameter window Enable inputs a…c, p. 170.
The Sensor output is set with these parameters. The data can be found in the sensor manufacturer's
technical documentation.
Send output value as
This parameter is fixed to 2-byte [EIB floating point].
What is the output value?
The Analogue Input records a sensor measured value, converts it according to the set parameters
and sends it on the bus. This sent value is designated as the output value.
