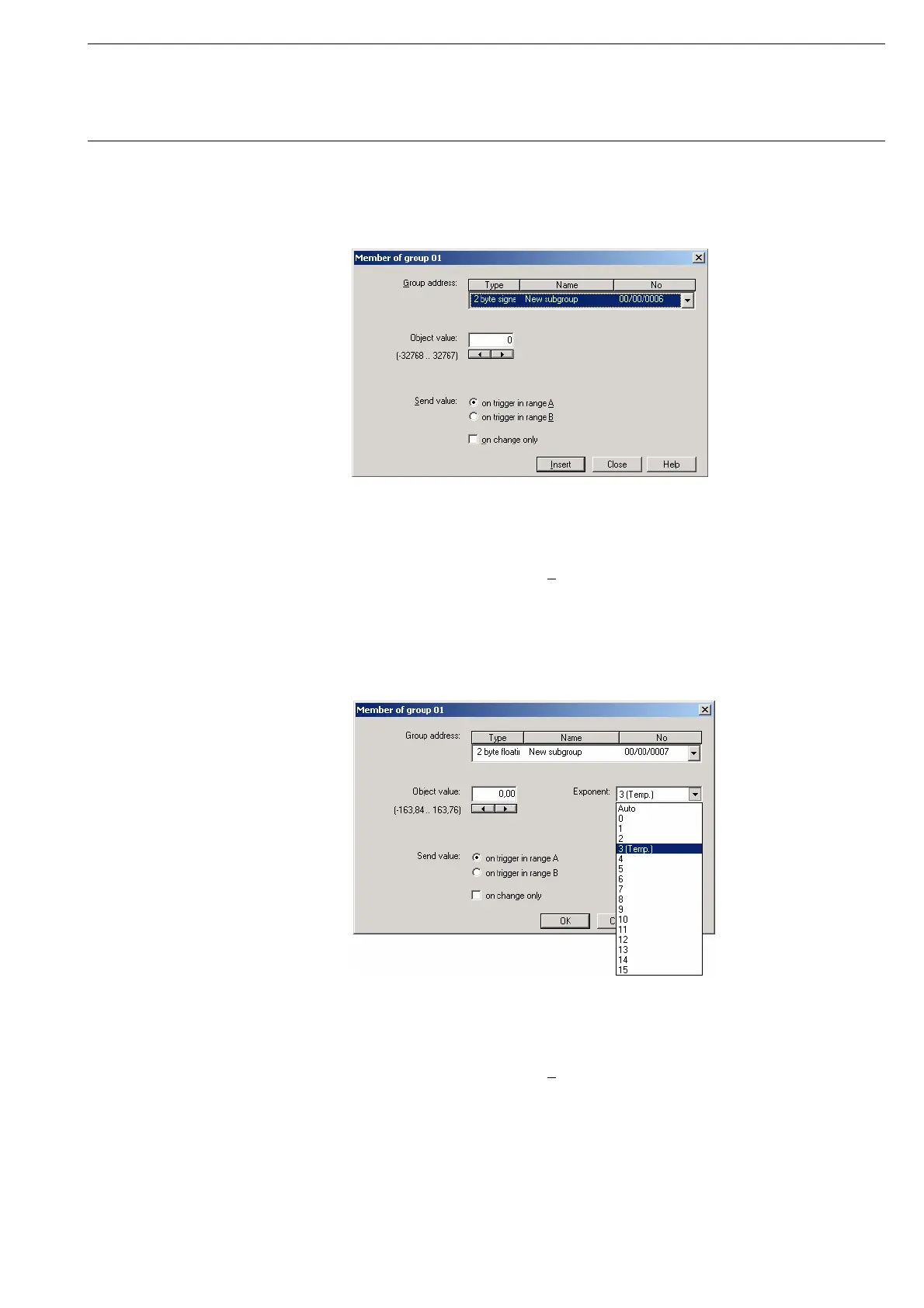

3.3.2 Communication objects General
No.
Functionality
communication object name
Data type
Flags
0
In operation
General
1 bit
DPT 1.002
C, R, T
The communication object is enabled if the parameter Enable communication object "In operation", 1-bit has been selected
with the option Send value 0/1 cyclically in Parameter window General – Settings, p. 69.
In order to regularly monitor the presence of the device on the KNX, an in-operation monitoring telegram is sent cyclically on
the bus.
As long as the communication object is activated, it sends a programmable in operation telegram.
Telegram value:
1 = System in operation with option Send value 1 cyclically
0 = System in operation with option Send value 0 cyclically
1
Request status values
General
1 bit
DPT 1.017
C, W, T
This communication object is enabled if the parameter Enable communication object "Request status values" 1-bit has been
selected with the option Yes in Parameter window General – Settings, p. 69.
If the communication object receives a telegram with the value x (x = 0; 1; 0 or 1), all Status communication objects are sent
on the bus, as long as these have not been programmed with the option On change, After request or After a change or
request.
Option x = 1 produces the following function:
Telegram value:
1 = All status messages are sent
0 = No reaction
2
Block manual operation
General
1 bit
DPT 1.003
C, W
The communication object is enabled if the parameter Manual operation has been selected with the option Enable/disable
via comm. object in Parameter window Manual operation – Settings, p. 72.
Using this communication object the Manual operation is enabled or disabled.
Using the value 0, the button is blocked on the device. If the device is in Manual operation, it toggles immediately to KNX
operation.
Using the value 0, the button is blocked on the device.
Telegram value:
1 = button enabled
0 = button disabled
3
Status Manual operation
General
1 bit
DPT 1.003
C, R, T
The communication object is enabled if the parameter Enable communication object "Status Man. operation" (1-bit) has
been selected with the option Yes in Parameter window Manual operation – Settings, p. 72.
This communication object indicates whether manual operation is activated.
The Status Manual operation is sent On change, After request or After a change and request as programmed.
Telegram value:
0 = Manual operation not active
1 = Manual operation active
