ABB LMT Series User Manual

LMT100 AND LMT200 | MAGNETOSTRICTIVE LEVEL TRANSMITTERS | FF OI/LMT100/200/FF-EN REV. A
51

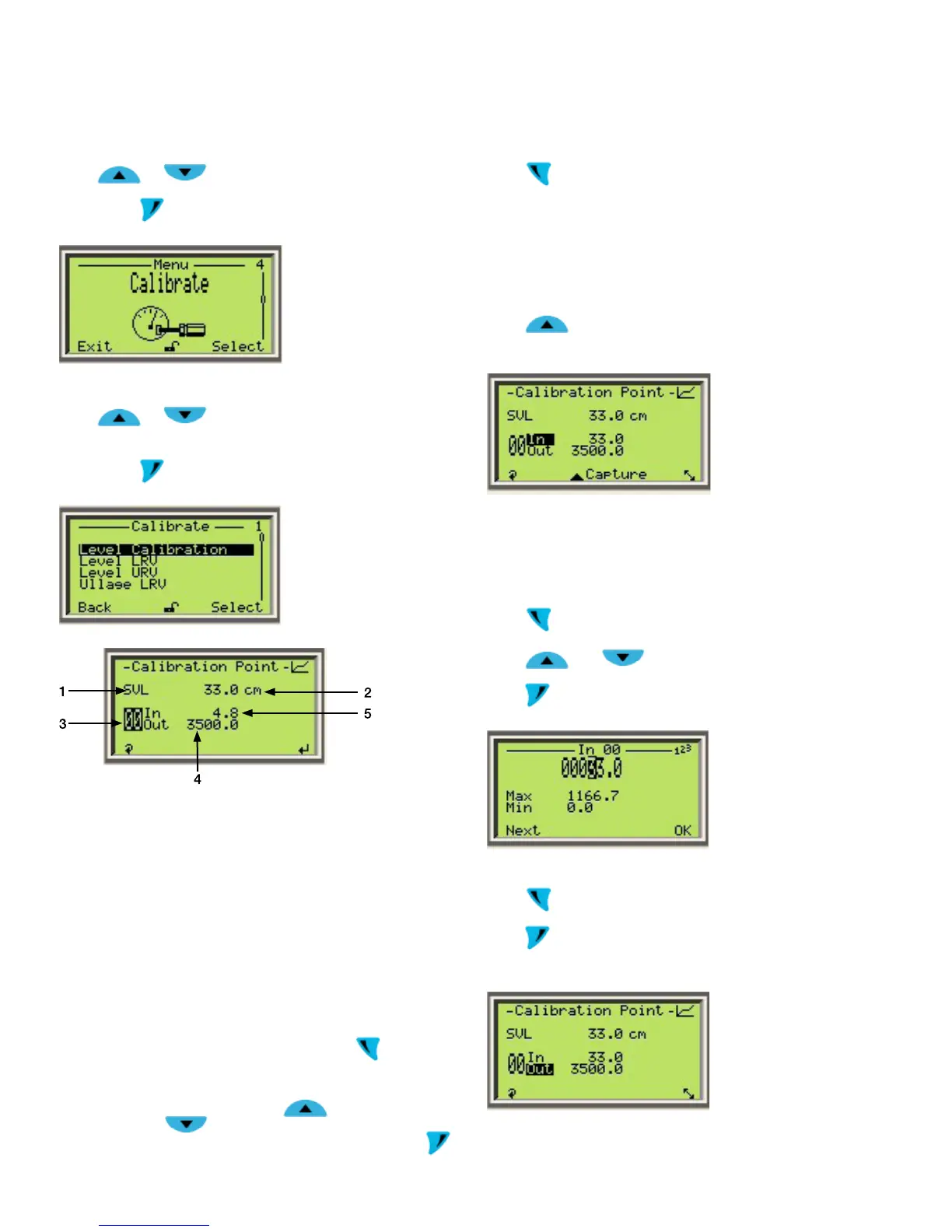

STEP 3:
Press
or to navigate to the Calibrate menu
Press Select
to enter the menu
STEP 4:
Press
or to navigate to the Level Calibration
menu
Press Select
to enter the menu
IMPORTANT (NOTE)
Calibration points menu description
1 Sensor Value label
2 Current sensor value is the raw factory level being measured
currently
3 Calibration point index (options 00 and 01)
4 Level value (LVL) or output value of the cal. point
5 Sensor value (SVL) or input value of the cal. point
• The scroll function accessed by pressing the
key allows
navigation between the point number “00”, the Input Value
<In>, and the Output Value <Out>.
• To change between points, press
when “00” is
highlighted or
when “01” is highlighted.
• To edit the input or output value of the points press the
key when <In> or <Out> are highlighted respectively.
STEP 5:
Press
to scroll to <In>, which corresponds to the input
value of point 00
For wet calibration, the float must be at the position where the
cal. Point 00 is wanted
For dry calibration, skip to Step 6
Press
to capture the Current SVL and apply it to the
input value of the point
STEP 6:
For dry calibration, when the float or level cannot be moved to
the desired position for point 00, press <right> to edit the
input value
Press
to scroll from one digit to another
Press
and to edit each digit
Press
to confirm the input value
STEP 7:
Press
to scroll to <Out>
Press
to edit the output value. Follow the same procedure
as in Step 6 to edit the digits
