ABB MNS R User Manual

16 ABB SACE
PABC
1025 450 525 50
1200 450
400 350
525 225
1400 450
525 425
650 300
1600 450
525 625
650 500

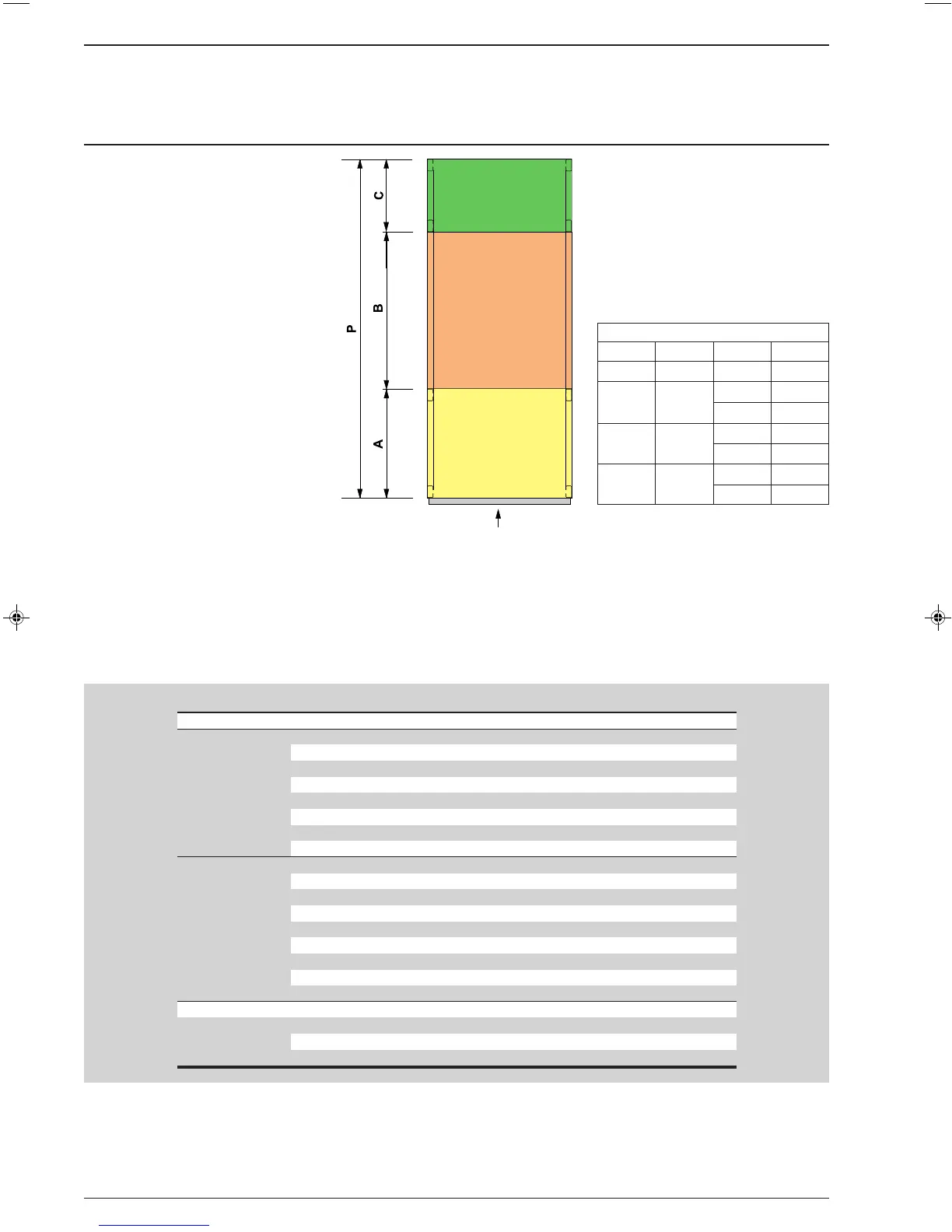

FRONT
Switchgear depth
The switchgear can have different
depths. Selection mainly depends on
the rated current of the main busbar
system, on the short-time withstand
current and on the space needed for
feeder connections.
Depth
Standardisation
Switchgear depth in relation to the main busbars rated current
Amperes Depth
Max. 50 kA 400 1200
630 1200
800 1200
1000 1200
1250 1200
1600 1200
2000 1200
2500 1200
Max. 75 kA 400 1025-1200
630 1025-1200
800 1025-1200
1000 1025-1200
1250 1025-1200
1600 1025-1200-1400
2000 1025-1200-1400
2500 1025-1200-1400
3200 1025-1200-1400-1600
Max. 100 kA 3200 1400-1600
4000 1400-1600
5000 1400-1600
6300 1400-1600
ABB PC30 23-11-2009, 8:1416
