ABB MNS R User Manual

22 ABB SACE

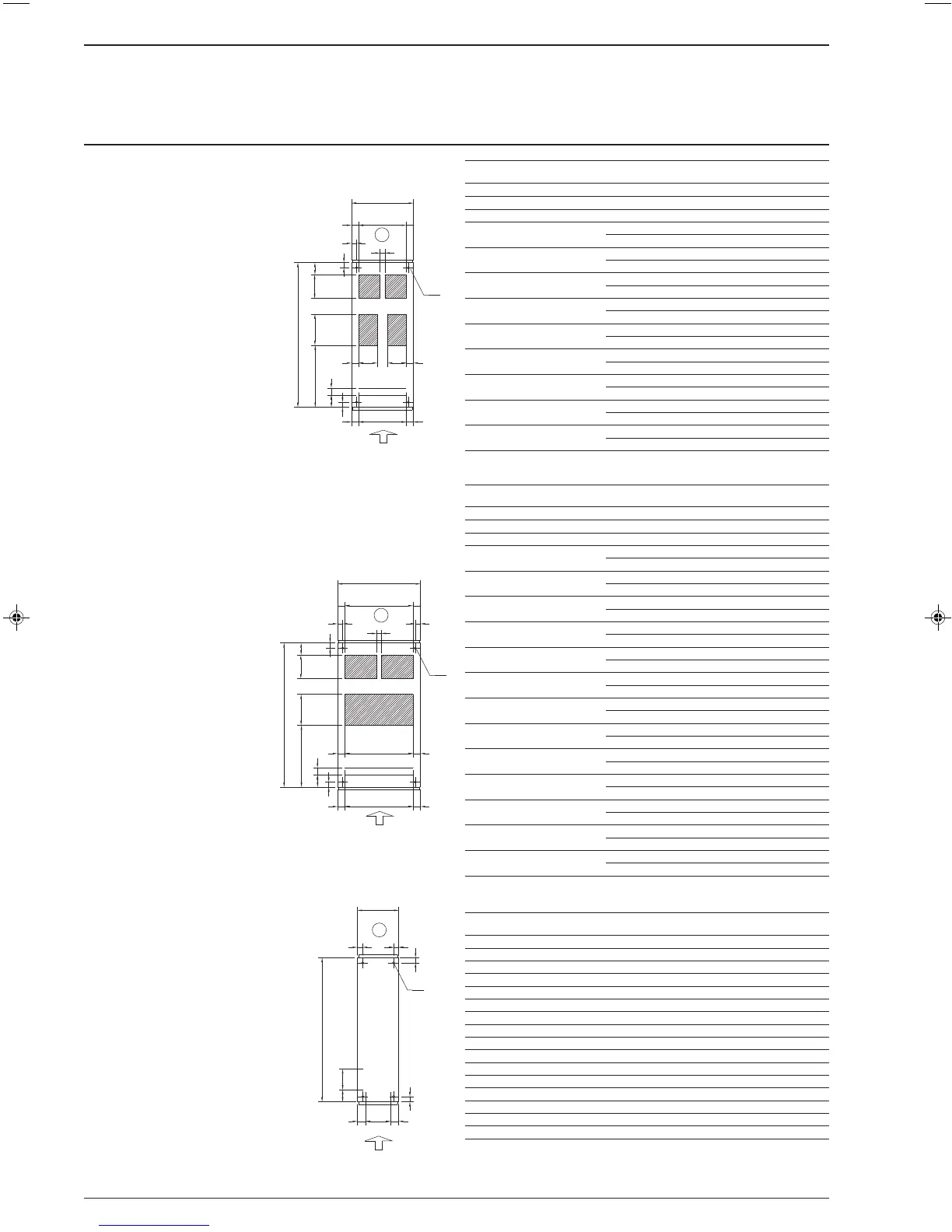

Installation
Column for incoming
cables and for installation
of moulded-case
c.bs. in Vertical pos.
50
= A =
50
C
Depth (D)
117
D
70
117
B
50
= =
NB.2
=
2
=
50
A
48
A
(L)
FRONT
Depth (D)
50
50
200117
FRONT
=
50 5050
3
NB.2
(L)
Column for
busbar riser
A=
Distances valid for standard
columns with busbar compartment:
- 525 mm size for columns with
1025-1200-1400- 600 mm depth
- 650 mm size for columns with
1400 and 1600 mm. depth
For other overall dimensions, please
contact ABB SACE – L.V.
Switchgear and Systems Division
Ø15 mm holes for M12 expansion
dowels
45
==
NB.2
A
48
=
1
D
A=
(L)
Depth (D)
Column with lateral descent.
Installation for moulded-case
c.bs. in horizontal position.
50
50
EE45
50
C
B
117
70
117
FRONT
Column Dim.
Type D x W Model A B C D E
1 1025x400 VS.525 220 – 270 638 110
1 1025x600 VS.525 420 – 270 638 210
1 1025x800 VS.525 620 – 270 638 410
1 1200x400
VS.400 220 170 250 563 110
VS.525 220 58 370 593 110
1 1200x600
VS.400 420 170 250 563 210
VS.525 420 58 370 593 210
1 1200x800
VS.400 620 170 250 563 410
VS.525 620 58 370 593 410
1 1400x400
VS.525 220 240 270 697 110
VS.650 220 120 438 649 110
1 1400x600
VS.525 420 240 370 697 210
VS.650 420 120 438 649 210
1 1400x800
VS.525 620 240 270 697 410
VS.650 620 120 438 649 410
1 1600x400
VS.525 220 440 270 697 110
VS.650 220 320 438 649 110
1 1600x600
VS.525 420 440 270 697 210
VS.650 420 320 438 649 210
1 1600x800
VS.525 620 440 270 697 410
VS.650 620 320 438 649 410
Column Dim.
Type D x W Model A B C D E
2 1025x400 VS.525 220 – 370 538
2 1025x600 VS.525 420 – 370 538
2 1025x800 VS.525 620 – 370 538
2 1200x400
VS.400 220 170 250 563
VS.525 220 58 370 593
2 1200x600
VS.400 420 170 250 563
VS.525 420 58 370 593
2 1200x800
VS.400 620 170 250 563
VS.525 620 58 370 593
2 1400x400
VS.525 220 240 370 597
VS.650 220 120 438 649
2 1400x600
VS.525 420 240 370 597
VS.650 420 120 438 649
2 1400x800
VS.525 620 240 370 597
VS.650 620 120 438 649
2 1400x1000
VS.525 820 240 370 597
VS.650 820 120 438 649
2 1400x1200
VS.525 1020 240 370 597
VS.650 1020 120 438 649
2 1600x400
VS.525 220 440 370 597
VS.650 220 320 438 649
2 1600x600
VS.525 420 440 370 597
VS.650 420 320 438 649
2 1600x800
VS.525 620 440 370 597
VS.650 620 320 438 649
2 1600x1000
VS.525 820 440 370 597
VS.650 820 320 438 649
2 1600x1200
VS.525 1020 440 370 597
VS.650 1020 320 438 649
Column Dim.
Type D x W A
3 1025x200 100
3 1025x300 120
3 1025x400 220
3 1025x600 420
3 1200x200 100
3 1200x300 120
3 1200x400 220
3 1200x600 420
3 1400x200 100
3 1400x300 120
3 1400x400 220
3 1400x600 420
3 1600x200 100
3 1600x300 120
3 1600x400 220
3 1600x600 420
Fixing the units
to the floor
ABB PC30 23-11-2009, 8:1522
