ABB SACE 5
Circuit-breaker compartment
The compartment is suitable to accept both air and
moulded-case circuit-breakers and it is accessible from the
front side by means of a locked hinged door. The circuit-
breakers can be installed in all the available versions, fixed,
plug-in and withdrawable. With all the widrawable circuit-
breakers, in order do guarantee the maximum safety level
to the operator, the apparatus handling can be carried out
with the door closed.

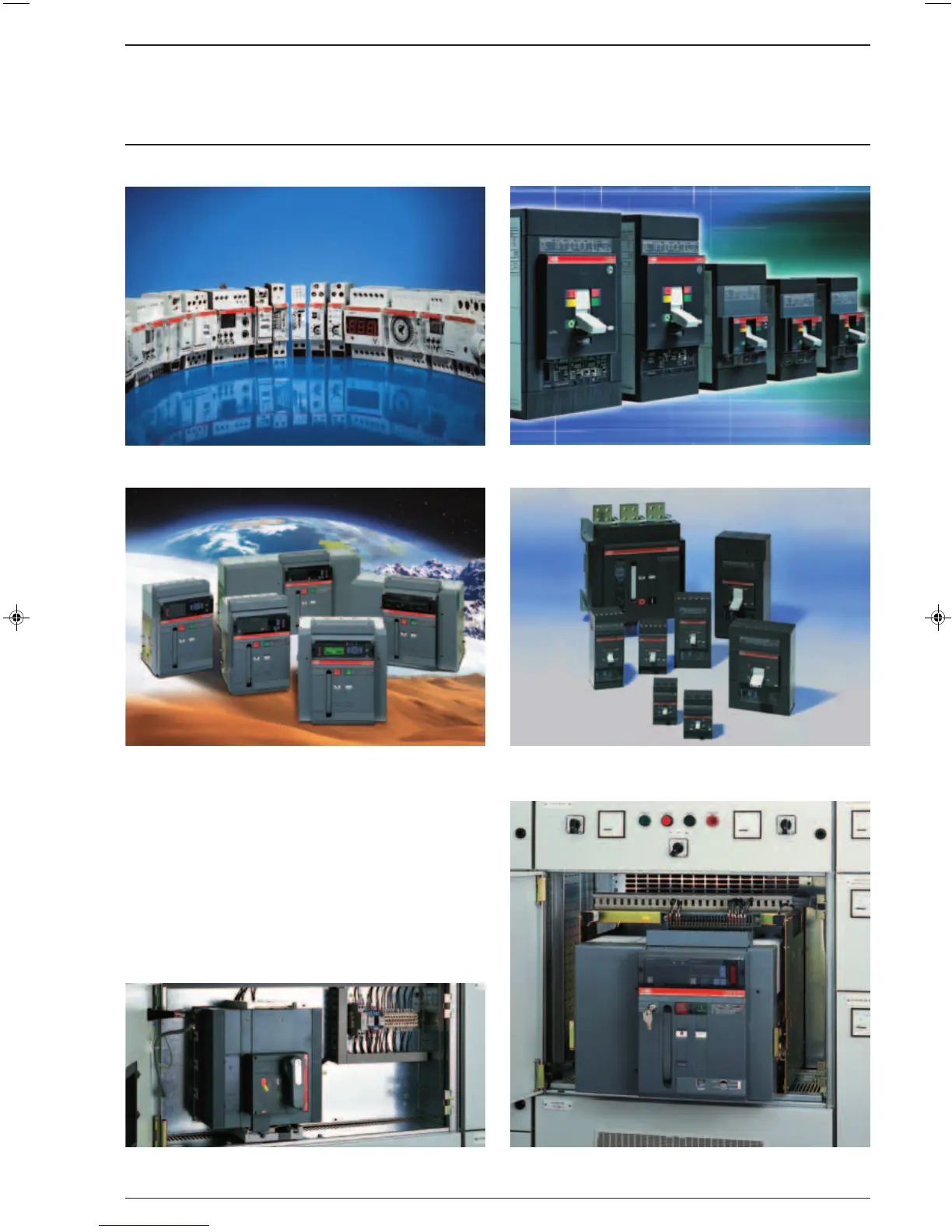

Circuit-breaker compartment with EmaxCircuit-breaker compartment with Isomax
Circuit-breakers used
System Pro M modular circuit-breakers (MCBs)
SACE Emax air circuit-breakers (ACBs)
SACE Isomax S moulded-case circuit-breakers (MCCBs)
Tmax moulded-case circuit-breakers (MCCBs)
ABB PC30 23-11-2009, 8:135
