ABB NALF Series User Manual

61
—

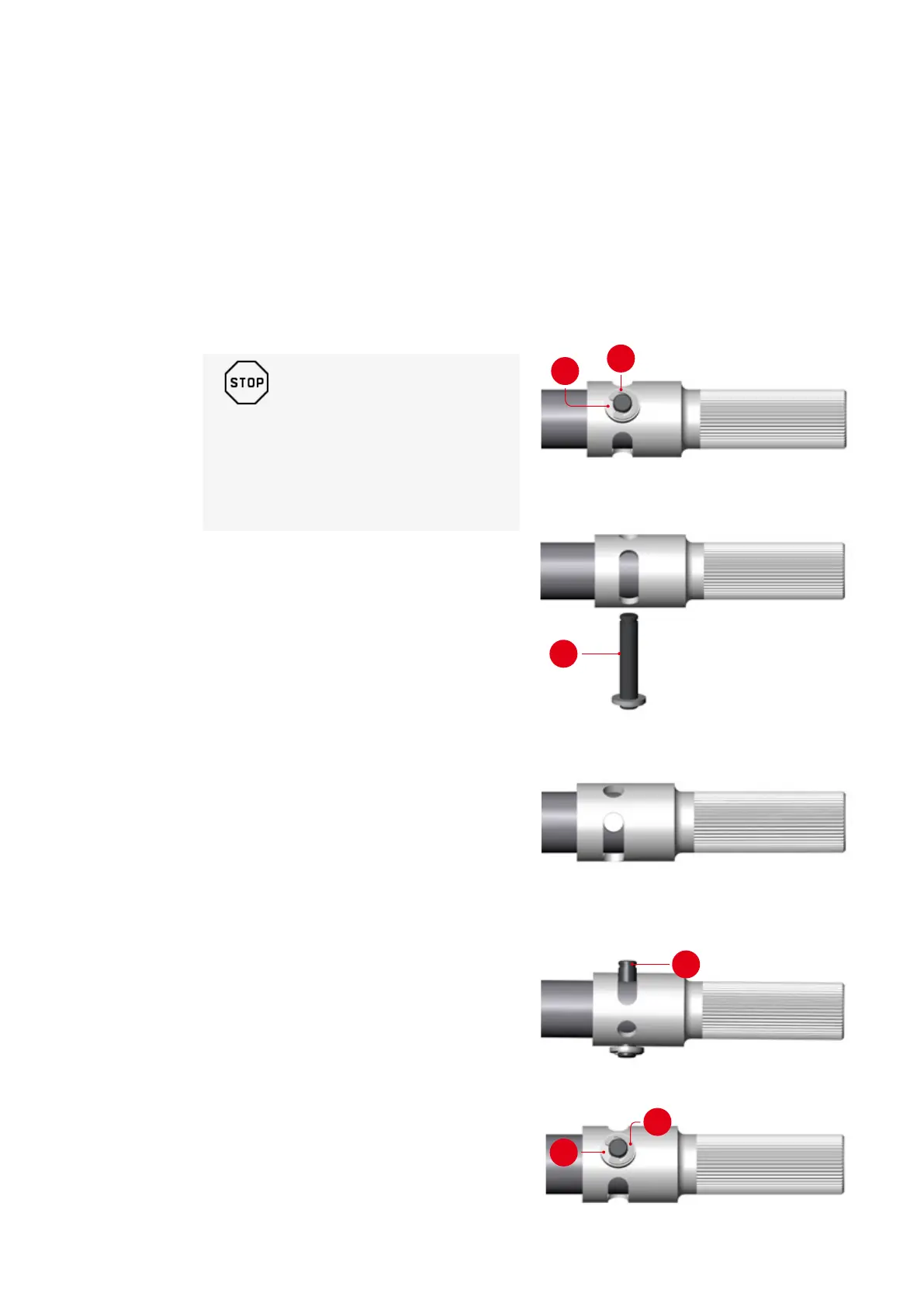

123 Remove the retaining ring [1] and washer [2]
—
124 Remove the pin [3] from the hole
—
125 Turn the splined shaft to the position
shown in the picture below
—
126 Insert pin [3] in the shaft hole
—
127 Put on washer [2] and safety ring [1]
—
22.0 Adjustment of splined shaft end
for earthing switch. Fig. 123- 127.
_
CAUTION!
In case of changing the operating side
of earthing switch (and mechanical
interlocking), splined shaft end location
should be updated accordingly.
1
2
3
3
1
2
