Softstarters Type PSE18...PSE370 Installation and commissioning manual 1SFC132057M020166 Chapter 7
7.5.8 Kick Start
This parameter makes it possible to tune the kick start voltage level which is ap-
plied for a short time duration, before a normal start ramp is performed. Kick Start
provides enough torque during start, but still ensuring a soft start.
It can be set on any of the predened voltage levels. For each voltage level there is
a xed time duration relation (t), which is increasing with the different kick voltage
levels. This function can be useful for applications with high initial friction or having
a need of extra power in the rst part of the start, as jammed pumps or conveyor

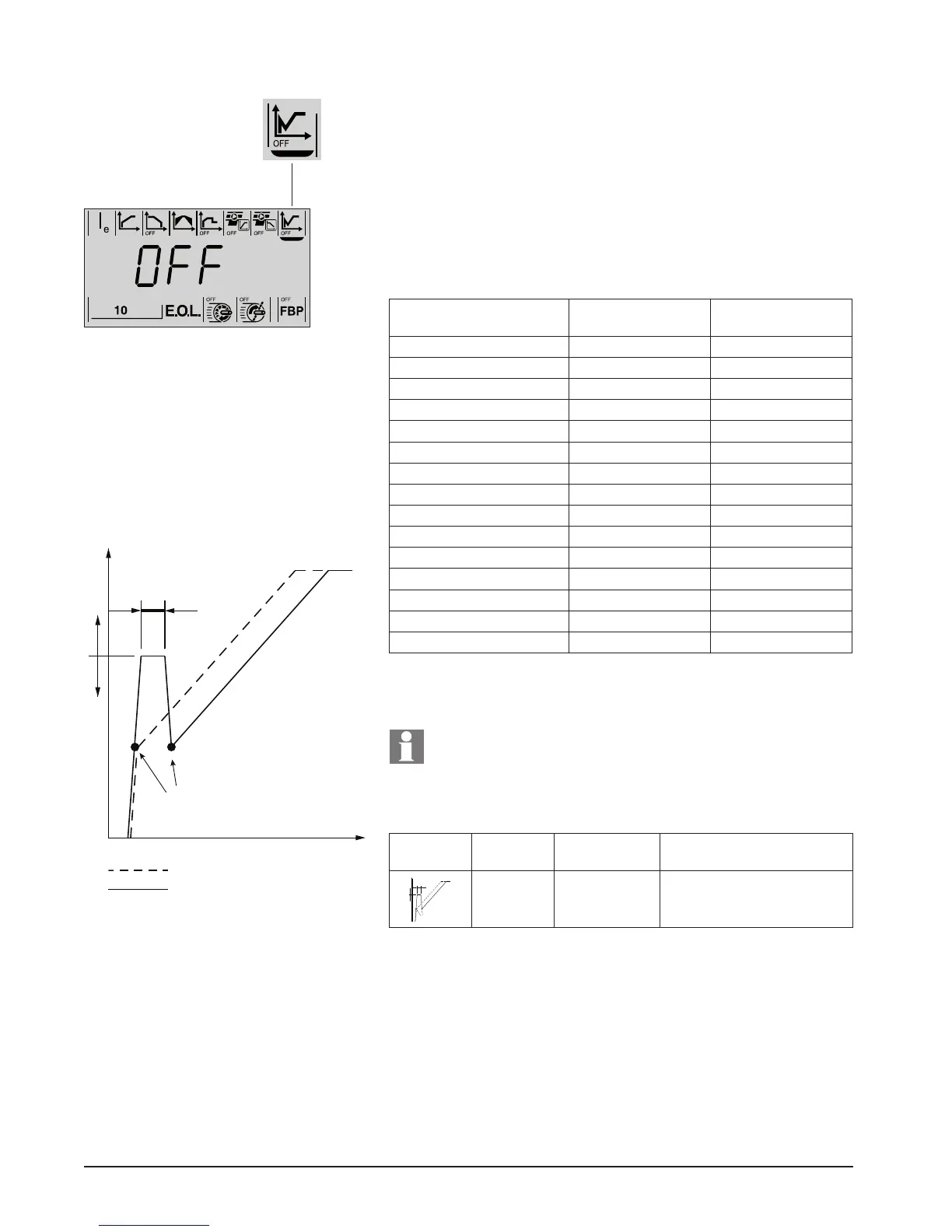

belts. See table 7.2 and graph in gure 7.19.
Table 7.2 Kick Start settings
Kick start setting Kick start voltage
U
e
(percent)
Kick start time
t (s)
30 30 0.30
35 35 0.35
40 40 0.40
45 45 0.45
50 50 0.50
55 55 0.55
60 60 0.60
65 65 0.65
70 70 0.70
75 75 0.75
80 80 0.80
85 85 0.85
90 90 0.90
95 95 0.95
100 100 1.00
Note that the Current Limit function is not working during Kick Start.
Display Default
value
Setting range Description
Operational time
Normal ramp
Ramp with Kick Start
t
U
e
Set Initial Voltage
OFF OFF, 30...100 % Level of Kick Start
Figure 7.18: Kick Start parameter displayed
Figure 7.19: The function of Kick Start
Operational time
Normal ramp
Ramp with Kick Start
t
U
e
Set Initial Voltage
