4.6.3 Lever for RHDE1250 / RHDE2500
Pos: 11.34 /Technische Da ten / Datenblatt/Ak torik/Antriebe/Sc hwenkantriebe/El. Schwenkantriebe RHD 125 0 / RHD 2500 (Contrac)/ Maßbild Hebeltrieb @ 5\mod_1153 894291312_3101.doc @ 36177
45°
L
74,9
Ø26
24,5
104,5
25
32
30
110 ... 140
I = L - 250
120
70
200
75
250
300
350
460
120
100
20
Ø60
Ø52,5
(Ø48.5 US)
35
+ 0.076
+ 0.030
- 0.022
- 0.074
+0,2
110 ... 140
4
3
2
1
M00114

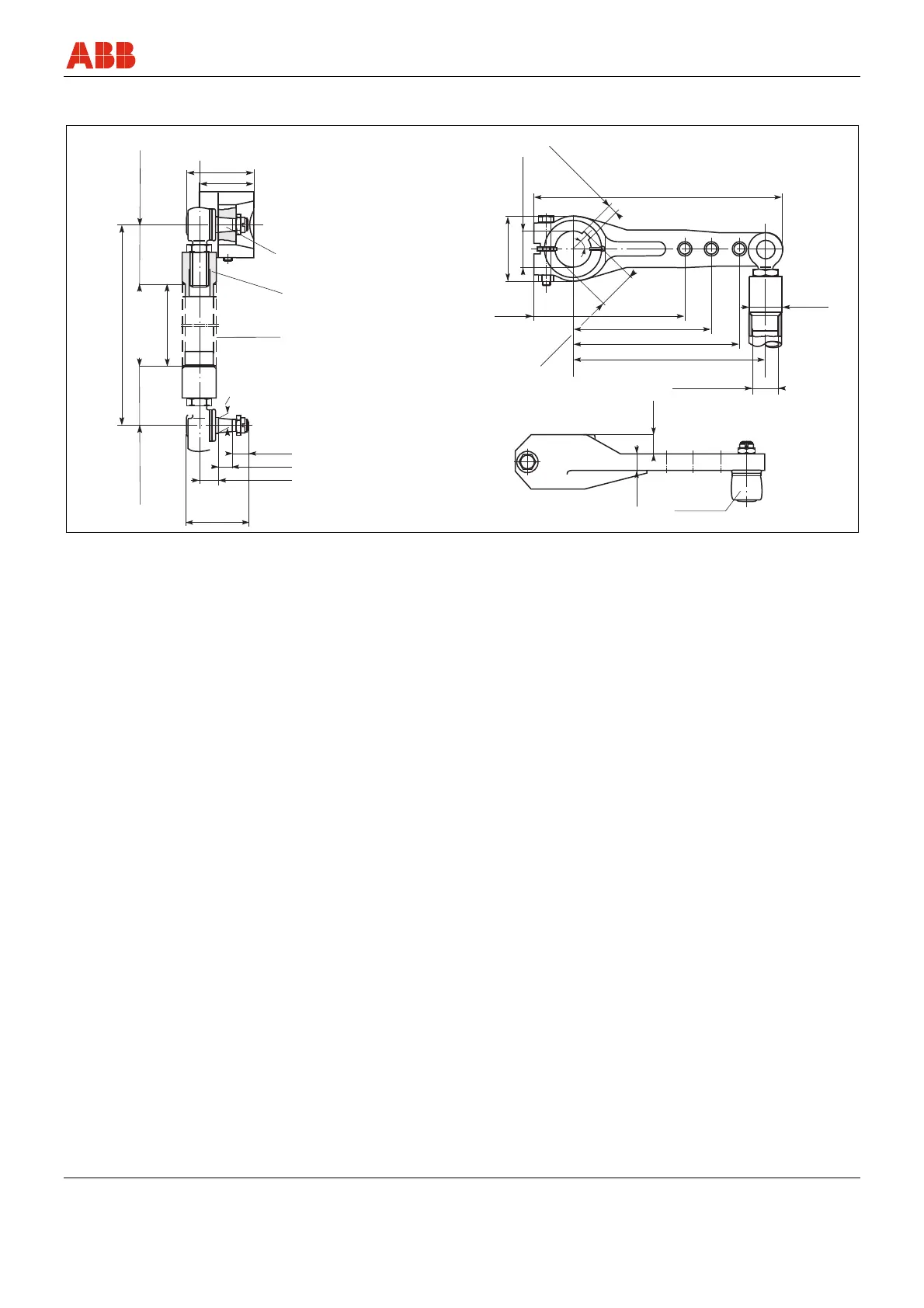

Fig. 10: Dimensions in mm
1 Cone 1 : 10
2 Welding bushings are part of shipment
3 Connection pipe 2” DIN 2440 resp. 2” schedule 80 pipe size “L”
acc. to requirements. The pipe is not included in shipment.
4 Angular deflection of ball and socket joint:
Pointing towards the actuator: max. 3°
Pointing away from the actuator: max. 10°
