ABB TPS44-F Series User Manual

Operation Manual / TPS44-F.. - TPS61-F..
Disassembly and assembly
8

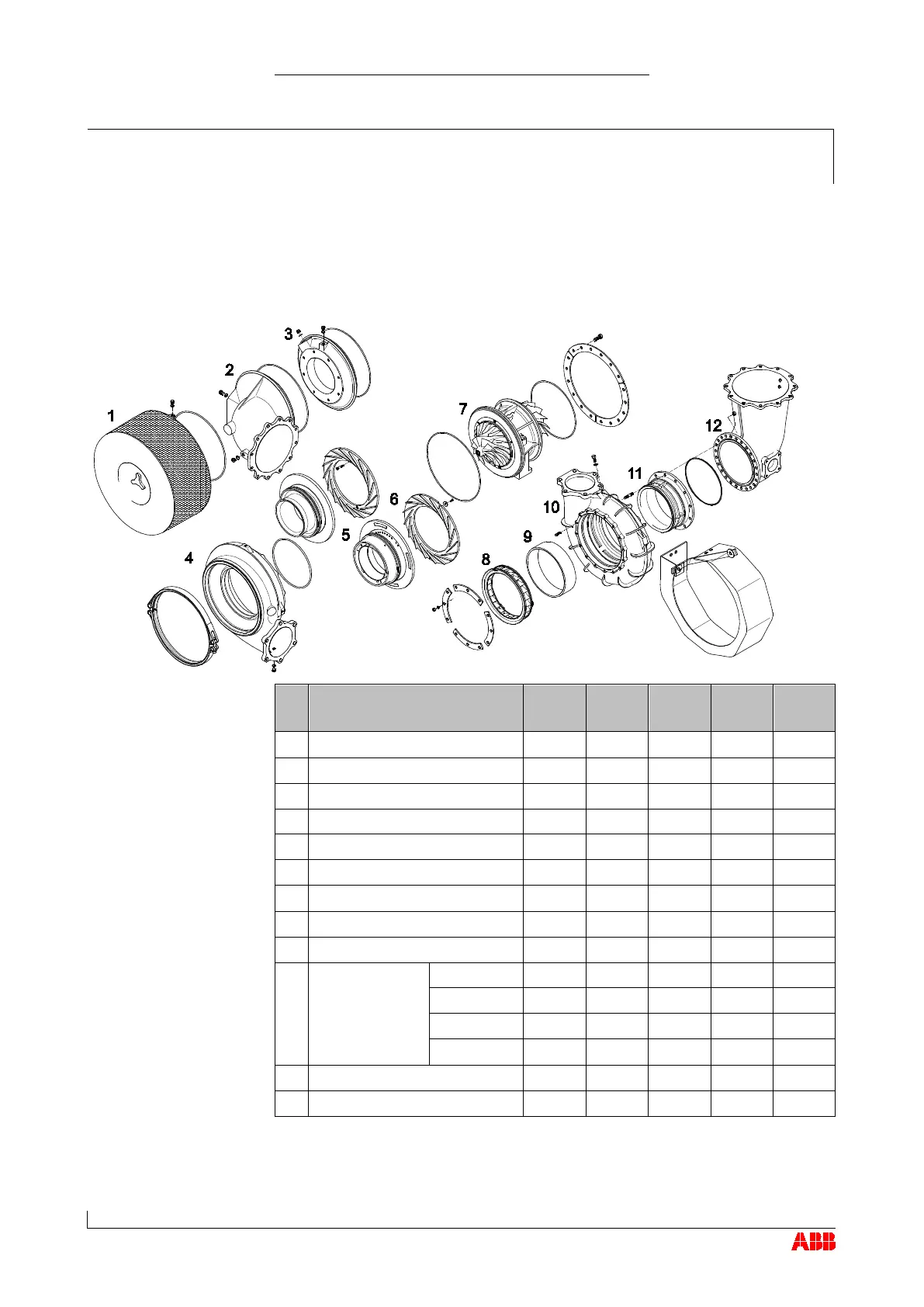

Module weights
8.2
Page 92
April 2015 HZTL2412_EN Revision E
Module weights
8.2
The specified weights of individual parts or assemblies are guides
rounded off to the next highest value.
Description
TPS44
[kg]
TPS48
[kg]
TPS52
[kg]
TPS57
[kg]
TPS61
[kg]
1 Filter silencer 15 19 30 40 65
2
Radial air suction branch
5
6
8
11
21
3 Axial air suction branch 3 4 4 6 9
4
Compressor casing
17
24
35
55
90
5 Wall insert 4 7 10 13 30
6 Diffuser 2 2 3 6 10
7 Cartridge group 25 35 50 85 140
8
Nozzle ring
1
1
2
3
6
9 Burst ring 1 2 3 5 12
10
Turbine casing
with external
burst protection
1 inlet
30
35
50
80
130
2 inlets 30 35 50 90 150
3 inlets - - 55 95 170
4 inlets - - - 95 170
11
Gas outlet flange
4
4
8
16
30
12 Exhaust manifold 16 18 25 40 60
8.2
© Copyright 2015 ABB. All rights reserved.
