Absen KL II Series User Manual

23 KL II Series User Manual
5 CABLE CONNECTION
5.1 LED Panel connection
Preparation before connection
Before connecting: Before supplying power to the entire screen, please carefully check whether the
power cable between the cabinets is connected, and whether the main power cable between the screen
and the distribution box is properly connected; check and confirm the AC power input port of each box
"L" wire, "N" wire, and "PE" wire, confirm that there is no short circuit between the three (measured with
a multimeter).
And before providing control signals, Please calculate the power cord connection instructions according
to the maximum power consumption and select the appropriate power distribution box or socket model.
For specific options, please consult your electrician or power distribution cabinet manufacturer. The
input voltage of the cabinet is 100-240V/AC, and a 3X1.5mm² power cord is used from the distribution
box to the cabinet. Please confirm the input voltage, different voltages and different product models, and
each power cord carries a load of the cabinet The quantity will be different (when unable to confirm,
please contact our customer service department!).

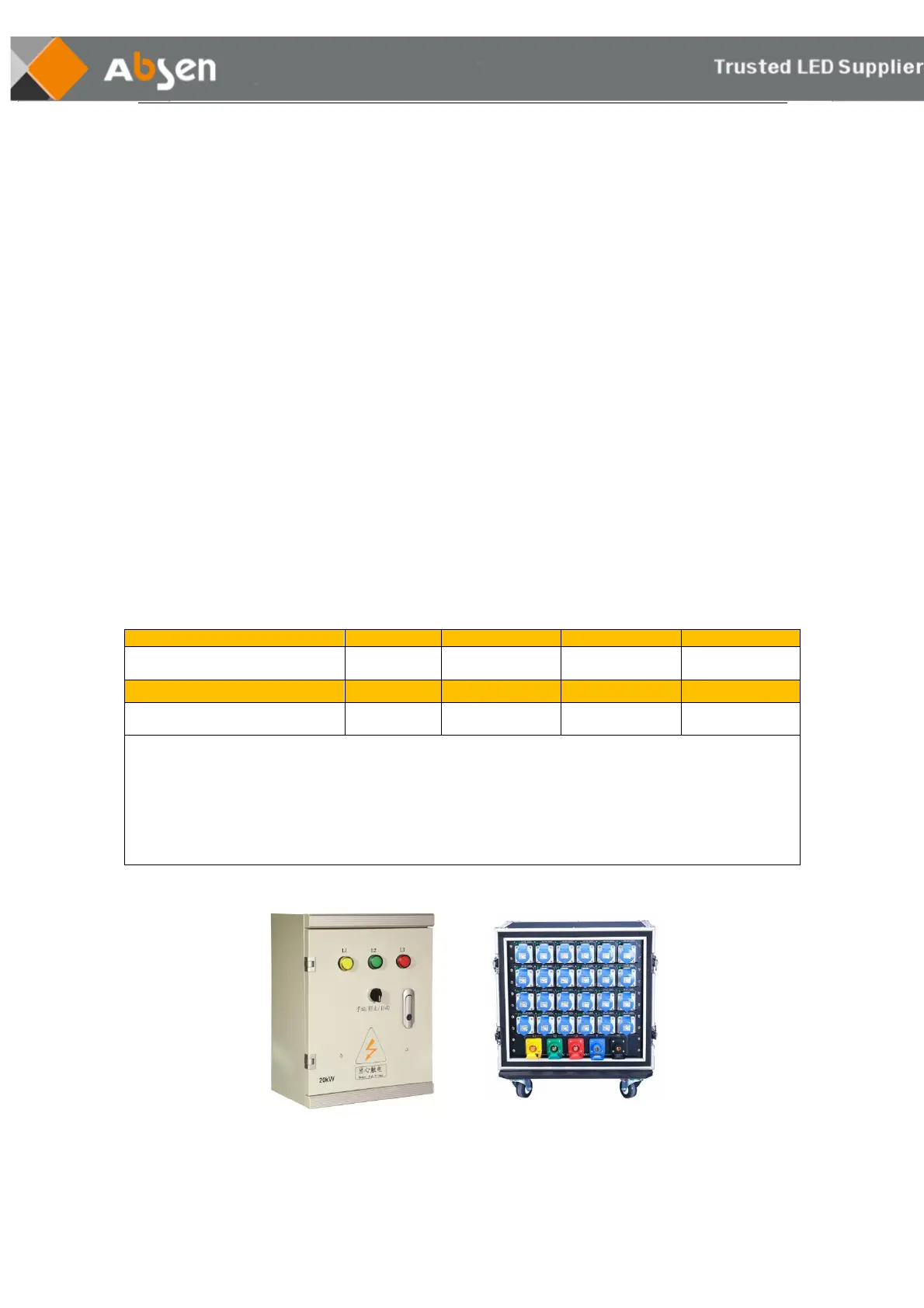

According to power points, our distribution boxes are mainly 15KW, 30KW, 60KW, 90KW, 120KW,
150KW, 180KW, etc.
According to the control method, there are intelligent distribution boxes and ordinary distribution boxes.
According to the type of use, it is divided into: fixed assembly electric box and leased distribution box.
Distribution box and main cable selection
Distribution box specifications
15KW
30KW
45KW
60KW
International copper core cable
model mm²
4*4+1*2.5
4*10+1*6
4*16+1*10
4*25+1*16
Distribution box specifications
90KW
120 KW
150 KW
180 KW
International copper core cable
model mm²
4*50+1*35
4*70+1*35
4*95+1*50
4*120+1*70
Remark:
In the above table, the calculation is based on a three-phase voltage of 380V and a single-phase voltage
of 220V as an example;
The input terminal of the distribution box is a three-phase five-wire system with a three-phase voltage of
380V, and the output terminal is a single-phase voltage of 220V;
The meaning of 4*X+1*X in the table: 4 represents the L+L+L+N line, 1 represents the PE line, and X
represents the size of the main cable;
If the single-phase voltage is 110V, the international copper core cable type must be doubled;
