Accu-Chek Compact Plus Owner's Booklet

94

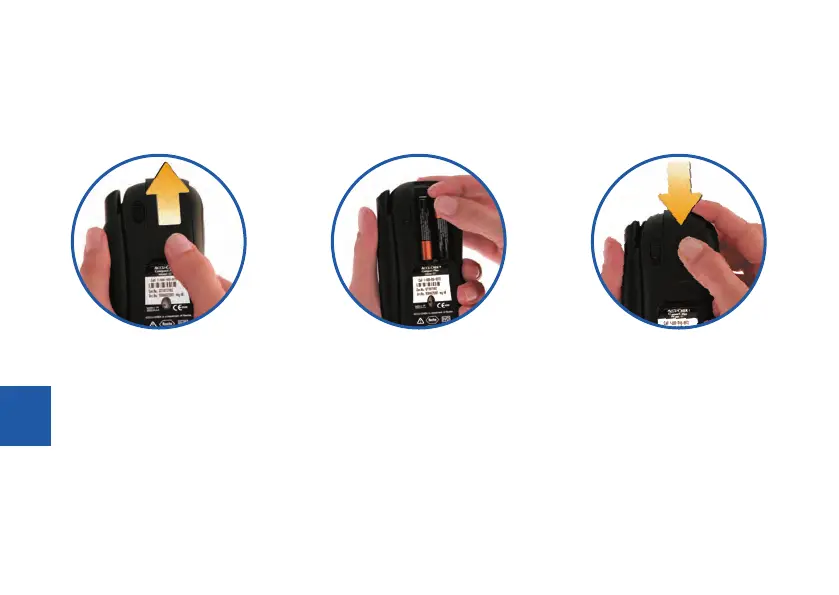

1. Open the battery door on the
back of the meter by pushing it
in the direction of the arrow
and pulling the door up.
Remove the old batteries.
2. Insert the new batteries with
the + and – end matching the
marks in the battery
compartment.
3. Place the battery door over the
batteries. The battery door
MUST BE at and almost
closed. The small tab attached
to the battery door still shows.
Push in the direction of the
arrow shown to lock the
battery door in place.
Changing the Batteries
man_07699336001_01_EN.indb 94 28.09.2015 13:27:03

Accu-Chek Compact Plus Specifications

General

Measurement Range	10-600 mg/dL
Sample Size	1.5 µL
Test Time	5 seconds
Automatic Coding	Yes
Display	LCD
Measurement Method	Electrochemical
Battery Type	2 x AAA
Battery Life	Approx. 1000 tests
Data Transfer	Infrared (IR)
Storage Conditions	-25°C to +70°C
Operating Conditions	10-40°C, 10-90% RH
