Acer AL1716 User Manual

7
OPERATING INSTRUCTIONS
GENERAL INSTRUCTIONS
Press the power button to turn the monitor on or off. The other control buttons
are located at front panel of the monitor (See Figure 4). By changing these
settings, the picture can be adjusted to your personal preferences.
• The power cord should be connected.
• Connect the video cable from the monitor to the video card.
• Press the power button to turn on the monitor position. The power indicator
will light up.

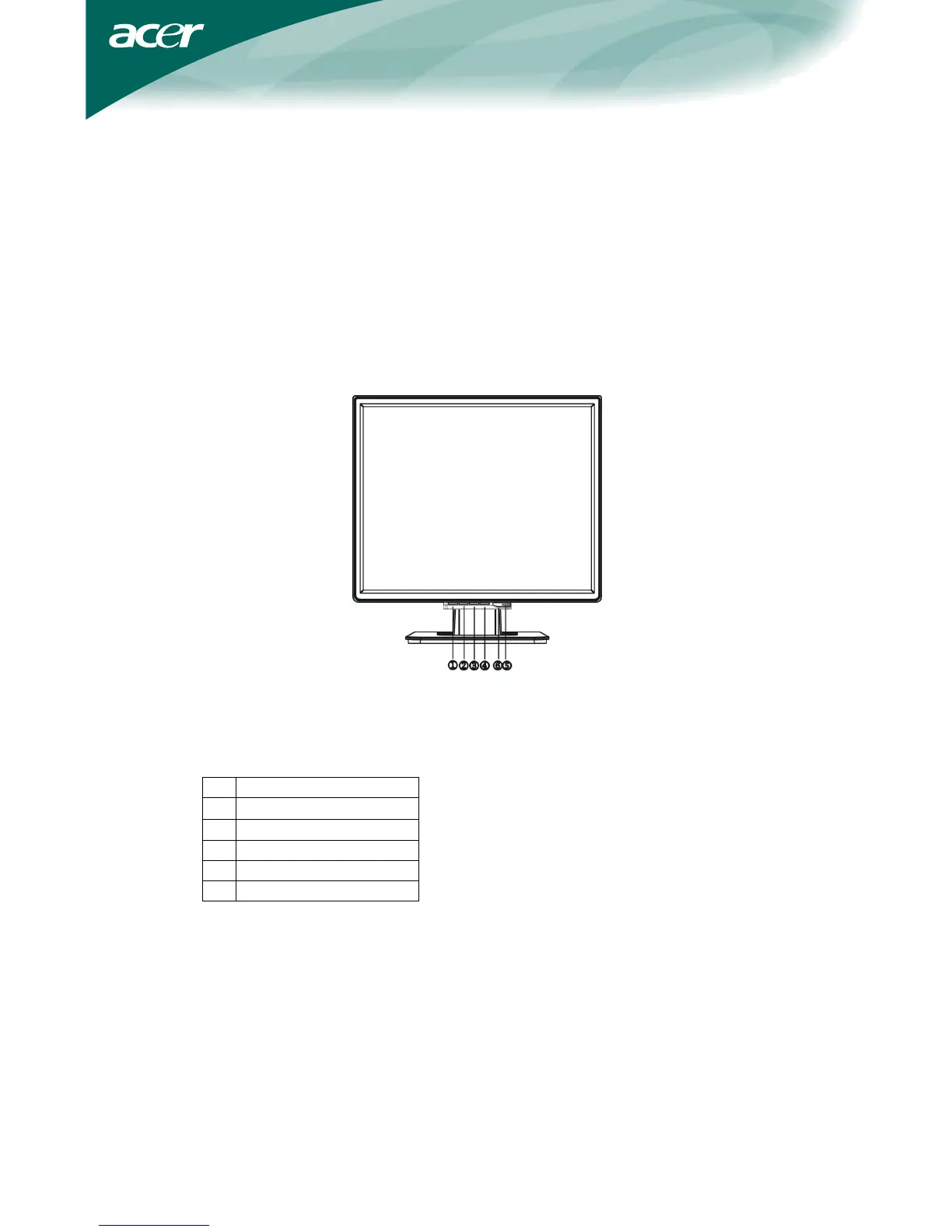

Figure 4 External Control Button
EXTERNAL CONTROLS
1. Auto Config / Exit
3.
4. MENU / ENTER
5. Power Indicator
6. Power Button
2. <
>

Acer AL1716 Specifications

General

Pixel pitch	0.294 x 0.294 mm
Response time	8 ms
Display diagonal	17 \
Display resolution	1280 x 1024 pixels
Vertical scan range	56.3 - 75 Hz
Horizontal scan range	31 - 81 kHz
Viewable size, vertical	270 mm
Viewing angle, vertical	130 °
Contrast ratio (typical)	500:1
Viewable size, horizontal	338 mm
Viewing angle, horizontal	140 °
Display brightness (typical)	300 cd/m²
Certification	ISO 13406-2, UL, EN60950, EN - 55022, MPR 1990, CSA, CB, TUV-GS, FCC-B, CE, TCO'99
Product color	Silver
Market positioning	-
Plug and Play	Yes
Power consumption (off)	2 W
Power consumption (typical)	44 W

Weight and Dimensions

Depth (without stand)	393 mm
Width (without stand)	377 mm
Height (without stand)	182 mm
Weight (without stand)	4600 g
