Acer ASPIRE 5532 User Manual

Chapter 3 107

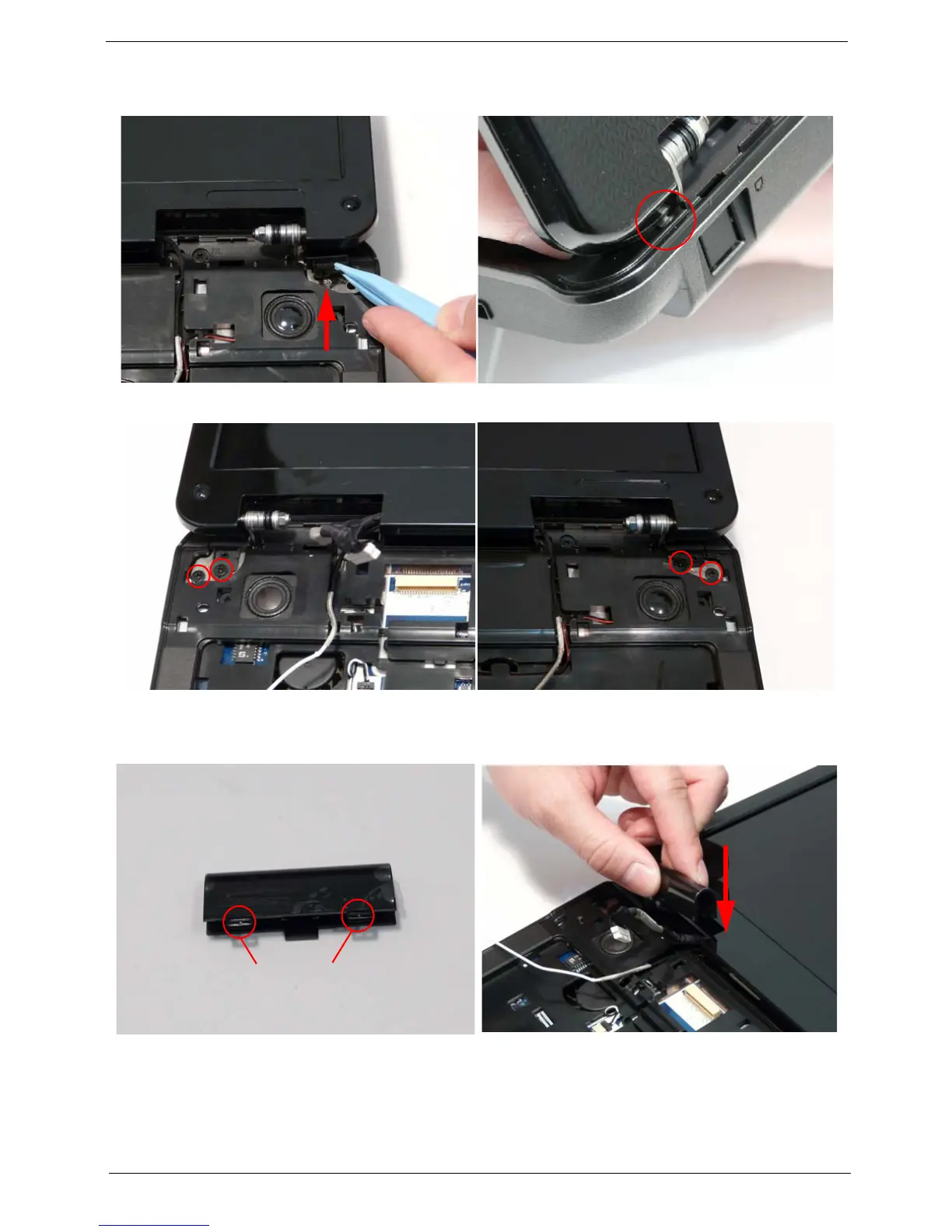

4. Replace the right screw cover as shown. Ensure that the securing tab on the rear of the cover is seated
correctly in the Upper Cover.
5. Replace the four (4) screws securing the LCD Module to the Upper Cover.
6. Ensure that the Hinge Covers are replaced
correctly. Identify the rear edge of the covers by the
two (2) securing clips.
7. Align the left Hinge Cover as shown and press
down to replace the cover.
8. Repeat the process for the right side Hinge Cover.
Rear Securing
Clips

Acer ASPIRE 5532 Specifications

General

RAM	Up to 4 GB DDR2
Graphics	ATI Radeon HD 3200
Battery	6-cell Li-ion
Weight	2.7 kg (5.95 lbs)
Storage	160 GB HDD
Display	15.6" HD (1366x768) LCD
Operating System	Windows Vista Home Premium
