Acer Aspire M5810 User Manual

4 Chapter 1

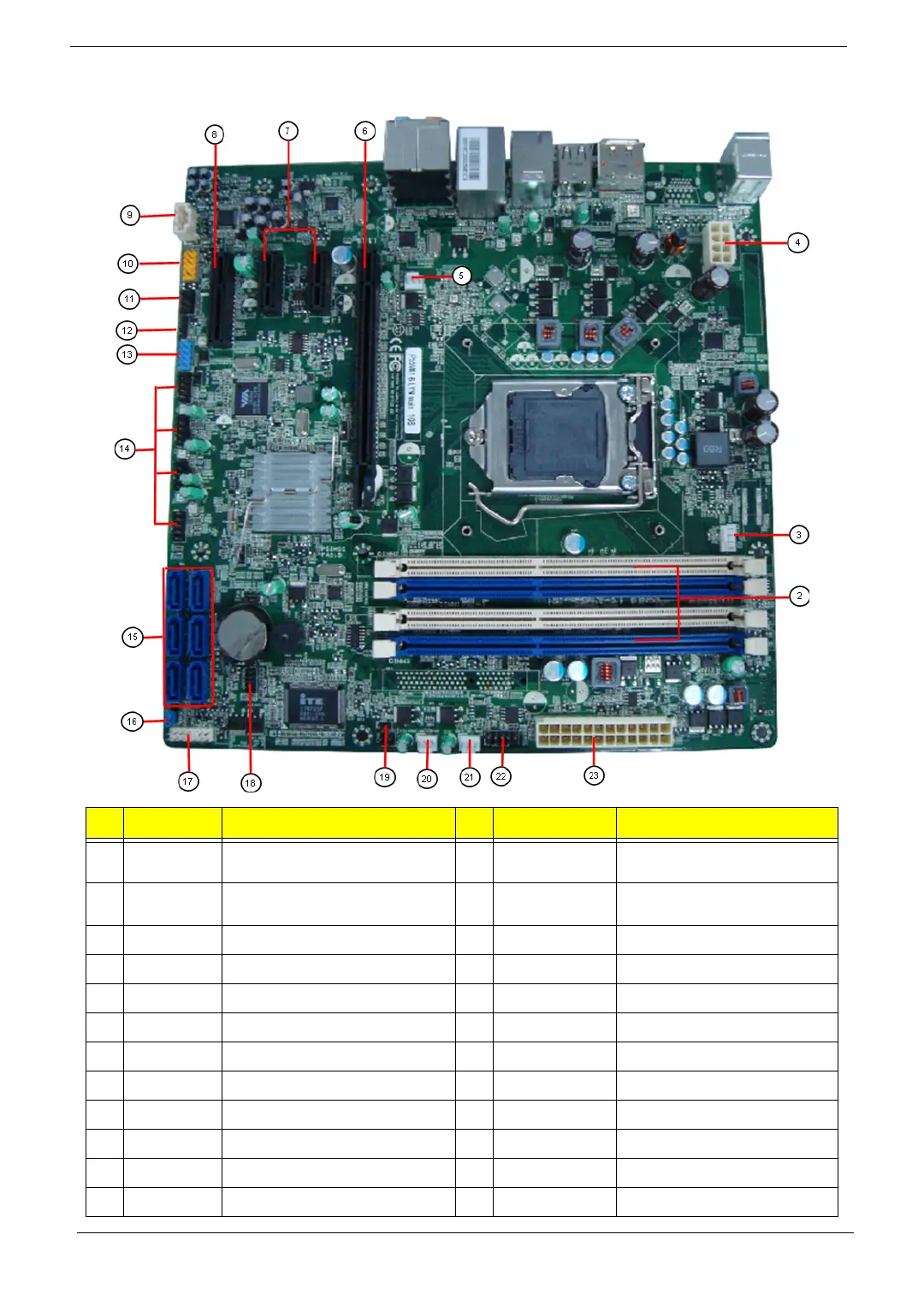

M/B Placement
No Label Description No Label Description
1 CPU Socket CPU Socket,0.914mm,15u",Black,SMD-
1,156
13 F_1394_HEADER Front 1394 header
2 DIMM CONN,DIMM,DDR
III,1.5V,VT,Blu,15u,G,DIP-240
14 F_USB Front panel USB header
3 CPU_FAN CPU fan power header 15 SATA SATA data transfe connector
4 PWR2 CPU Power connector 16 CLR_CMOS Clear CMOS jumper
5 REAR_FAN Rear Fan Header 17 FRONT_PANEL1 Front panel header
6 PCIE_16x PCIE_x16socket 18 DEBUG_HEADER Debug header
7 PCIE_1x PCIE_1x socket 19 INTR Chassis intrusion alarm header
8 PCIE_4x PCIE_4x socket 20 FRONT_FAN Front fan header
9 AUX_IN Audio Aux input connector 21 AUXILLIARY_FAN1 Auxilliary fan header
10 F_AUDIO Front panel audio header 22 BIOS_FLASH Bios flash header
11 SPEAKER Internal speaker header 23 PWR1 M/B main power connector
12 SPDIF1 SPDIF header

Acer Aspire M5810 Specifications

General

Tcase	72.7 °C
Bus type	DMI
Stepping	B1
Processor cache	8 MB
System bus rate	2.5 GT/s
Processor family	Intel® Core™ i5
Processor series	Intel Core i5-700 Desktop Series
Processor socket	LGA 1156 (Socket H)
Processor threads	4
Processor codename	Lynnfield
Processing Die size	296 mm²
Processor frequency	2.66 GHz
Processor cache type	Smart Cache
Processor lithography	45 nm
Processor manufacturer	Intel
Processor front side bus	1333 MHz
PCI Express slots version	2.0
Processor boost frequency	3.2 GHz
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x16, 2x8
Thermal Design Power (TDP)	95 W
CPU multiplier (bus/core ratio)	20
Maximum number of PCI Express lanes	16
Memory types supported by processor	DDR3-SDRAM
Number of Processing Die Transistors	774 M
Memory clock speeds supported by processor	1066, 1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
Maximum internal memory supported by processor	16 GB
Internal memory	6 GB
Memory channels	Dual-channel
Maximum internal memory	8 GB
HDD interface	SATA
Optical drive type	DVD±RW
Card reader integrated	Yes
Total storage capacity	1000 GB
Compatible memory cards	miniSD, MMC, MS Duo, MS Micro (M2), MS PRO, MS PRO Duo, MS PRO-HG Duo, SD, xD
Networking features	Gigabit Ethernet
Discrete graphics card model	NVIDIA® GeForce® GT 220
Maximum graphics card memory	2.431 GB
Discrete graphics card memory	1024 GB
Audio system	High Definition Audio
Product type	PC
Bundled software	Acer eRecovery Management, Acer Arcade Deluxe, eSobi, Adobe Reader, MyWinLocker, Nero 9 Essentials, Oberon GameZone
Operating system installed	Windows 7 Home Premium
PS/2 ports quantity	2
Serial ports quantity	0
USB 2.0 ports quantity	10
Firewire (IEEE 1394) ports	1
Power supply	500 W
Chassis type	Tower
Processor ARK ID	42915
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2
Intel® Turbo Boost Technology	1.0
Physical Address Extension (PAE)	36 bit

Weight and Dimensions

Depth	443 mm
Width	180 mm
Height	373 mm
