36 Chapter 3

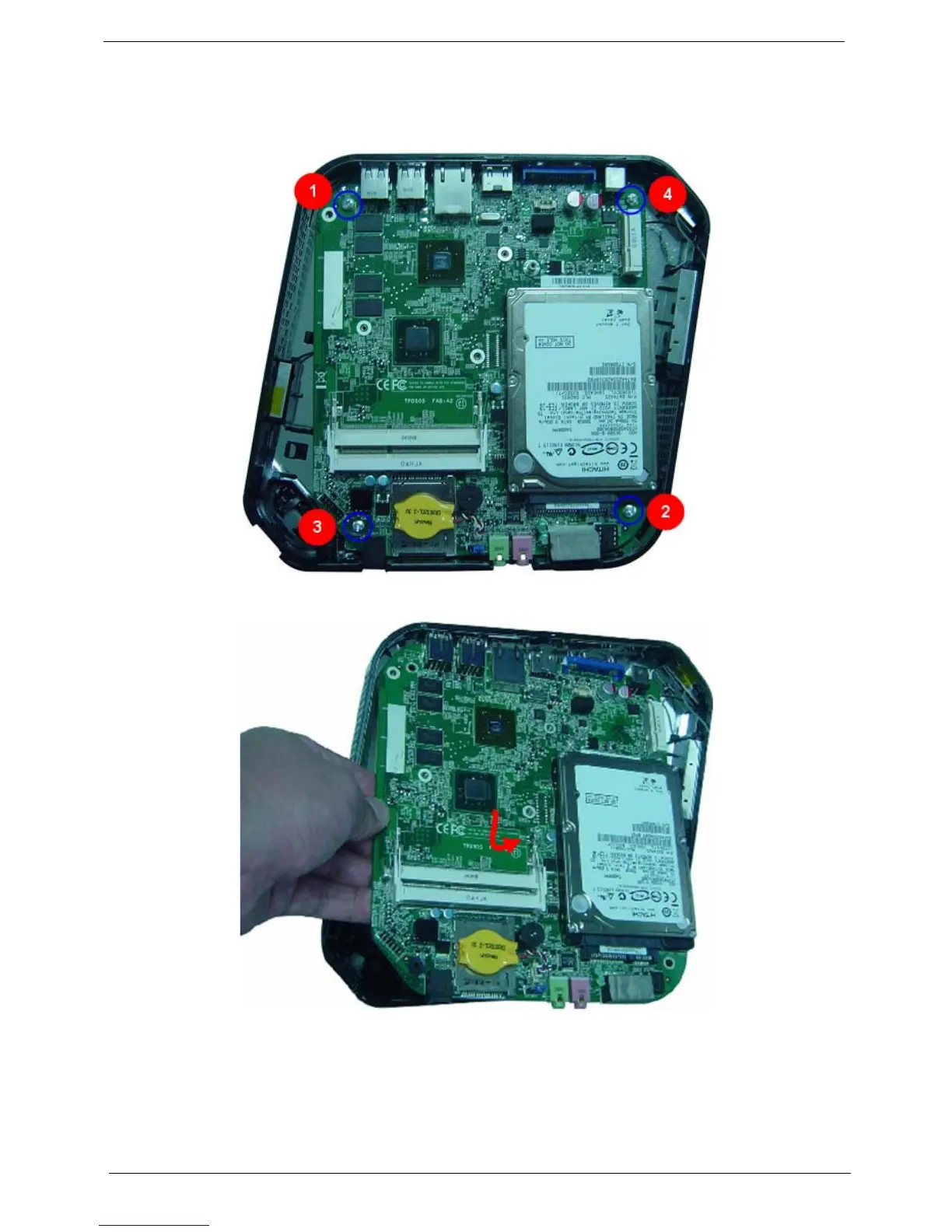

Removing the Main Board
WARNING:Please be careful when lift the motherboard,in order not to damage the EMI shielding.
1. Remove the four screws that secure the main board to the chassis.
2. Lift the board from the chassis.
