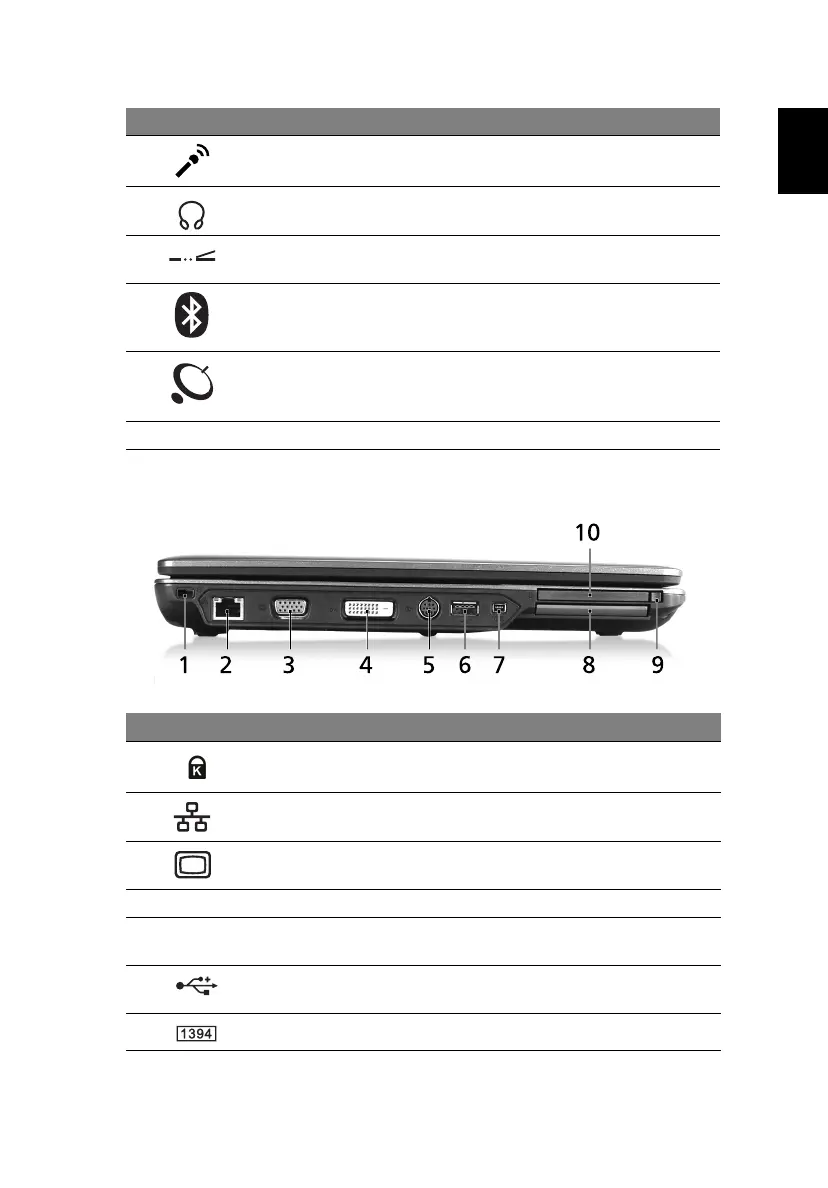

Left view
Microphone jack
Accepts inputs from external microphones.
Headphones/
speaker/line-out jack
Connects to audio line-out devices
(e.g., speakers, headphones).
4 Infrared port Interfaces with infrared devices (e.g.,
infrared printer and IR-aware computer).
5Bluetooth
communication
switch
Enable/disable the Bluetooth function.
Indicates the status of Bluetooth
communication (manufacturing option).
Wireless
communication
switch
Enable/disable the wireless function.
Indicates the status of wireless LAN
communication (manufacturing option).
6 Latch Locks and releases the lid.
Icon Item Description
1 Kensington lock
slot
Connects to a Kensington-compatible
computer security lock.
2 Ethernet (RJ-45)
port
Connects to an Ethernet 10/100/1000-based
network.
3 External display
(VGA) port
Connects to a display device (e.g., external
monitor, LCD projector).
4
DVI-D
DVI-D port Supports digital video connections.
5 S-Video/TV-out
(NTSC/PAL) port
Connects to a television or display device
with S-video input.
6 USB 2.0 port Connects to USB 2.0 devices (e.g., USB
mouse, USB camera).
7 IEEE 1394 port Connects to IEEE 1394 devices.
