Acer GN246HL User Manual

EN-9
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1. Red 9. +5V
2. Green 10. Logic Ground
3. Blue 11. Monitor Ground
4. Monitor Ground 12. DDC-Serial Data
5. Self Test 13. H-Sync
6. R-Ground 14. V-Sync
7. G-Ground 15. DDC-Serial Clock
8. B-Ground

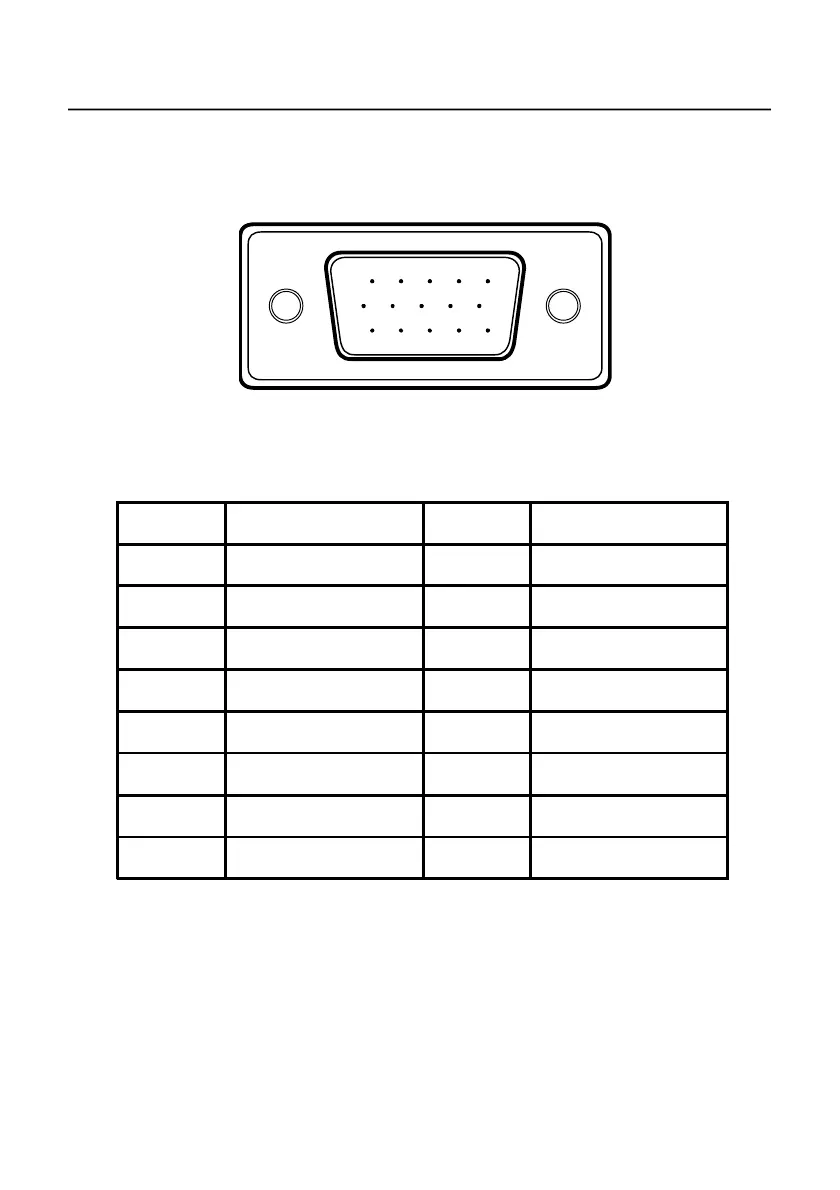

CONNECTOR PIN ASSIGNMENT
15-Pin Color Display Signal Cable
1
6
11
5
10
15

Acer GN246HL Specifications

General

3D	Yes
Panel type	TN+Film
Screen shape	Flat
Display diagonal	24 \
Display technology	LED
Native aspect ratio	16:9
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	100000000:1
Contrast ratio (typical)	-
Display number of colors	16.78 million colors
Viewing angle, horizontal	170 °
Display brightness (typical)	350 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
Feet color	Black/Red
Certification	MPR II
Product color	Black
Market positioning	Gaming
Sustainability certificates	REACH, ENERGY STAR
AC input voltage	100 - 240 V
Power consumption (off)	0.45 W
Power consumption (standby)	0.49 W
Power consumption (typical)	23 W
Package type	Box
Cables included	AC, DVI, VGA
Tilt angle range	-5 - 15 °
Panel mounting interface	100 x 100 mm

Weight and Dimensions

Depth (with stand)	178.9 mm
Height (with stand)	400.9 mm
Weight (with stand)	3520 g
Depth (without stand)	- mm
Width (without stand)	565 mm
Weight (without stand)	3071 g
