Acer H7850 User Manual

9
English
Getting Started

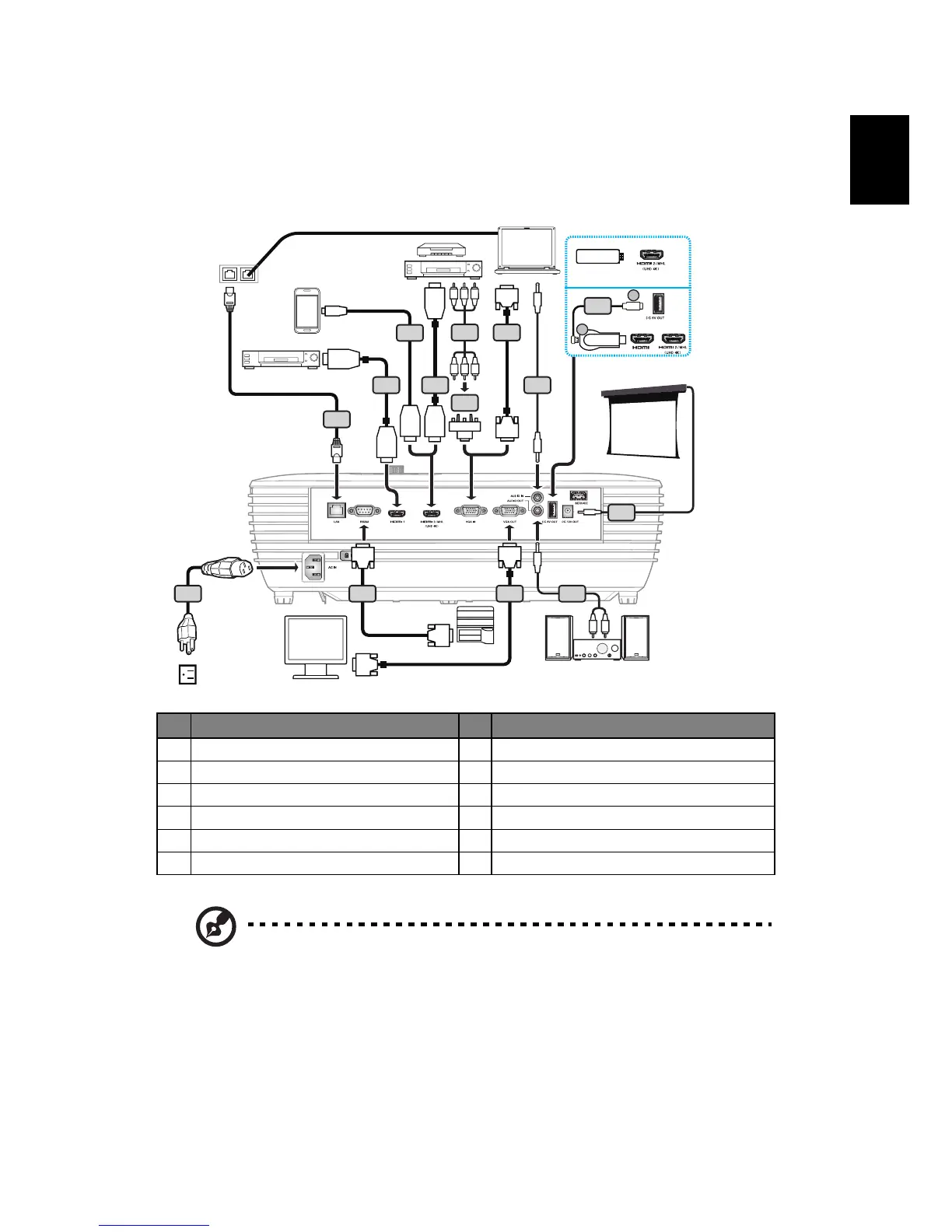

Connecting the Projector
Note 1: To ensure the projector works well with your computer,
please make sure the timing of the display mode is compatible
with the projector.
Note 2: Functions vary depending on model definition.
Note 3:
USB cable needs powered extender if the length is over 5 m.
Note 4: Some smartphones require a converter (supplied by
smartphone maker) to enable the MHL function.
Note 5: USB DC 5V out connector support 5V/1.5A power output
for HDMI dongle charging only when MHL source is not detected.
Note 6: DC 12V out connector support 12V/100mA power for
screen control only.
# Description # Description
1 Power cord 7 VGA cable
2 LAN cable 8 Audio cable Jack/Jack
3 HDMI cable 9 USB cable for charging device
4 MHL cable (MicroUSB to HDMI) 10 12V DC cable
5 3 RCA component cable 11 Audio cable Jack/RCA
6 VGA to component/HDTV adapter 12 RS232 cable
HDTV adapter
RBG
R
BG
D-Sub
D-Sub
R
W
RS232
RS232
RS232
D-Sub
D-Sub
HDMI
HDMI
HDMI
USB
MHL
HDMI
HDMI
Acer MHL Dongle
Note: For WirelessCast, Please switch to MHL
at the side of dongle.
Chromecast
1
or
1
2
1
2
3 3 8
10
4
5 7
6
11
7 12
9
Audio output
DVD player
DVD player,
Set-top Box,
HDTV receiever
Internet

Acer H7850 Specifications

General

Number of colors	1.073 billion colors
Native aspect ratio	16:9
Projection distance	1.3 - 9.3 m
Vertical scan range	24 - 120 Hz
Horizontal scan range	15 - 135 kHz
Projection technology	DLP
Supported aspect ratios	4:3, 16:9
Contrast ratio (dynamic)	1000000:1
Contrast ratio (typical)	-
Screen size compatibility	26 - 300 \
Projector native resolution	2160p (3840x2160)
Vertical synchronization (max)	0.12 kHz
Vertical synchronization (min)	0.024 kHz
Horizontal synchronization (max)	135 kHz
Horizontal synchronization (min)	15 kHz
Focus	Manual
Digital zoom	2 x
Optical zoom	1.6 x
Zoom capability	Yes
Focal length range	20.91 - 32.62 mm
Aperture range (F-F)	2.5 - 3.26
Lamp type	UHP
Lamp power	240 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	15000 h
HDMI connector type	Full-size
USB 2.0 ports quantity	1
Number of bulbs	1 bulb(s)
Noise level	29 dB
Projection modes	Ceiling, Front, Rear
Noise level (economic mode)	27 dB
RMS rated power	5 W
Power source	AC
AC input voltage	120 - 230 V
Power consumption (standby)	- W
Power consumption (typical)	315 W
Power consumption (economy mode)	260 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	White
Market positioning	Home cinema
Built-in display	No
Supported video modes	2160p
Supported graphics resolutions	3840 x 2160

Weight and Dimensions

Weight	5300 g
