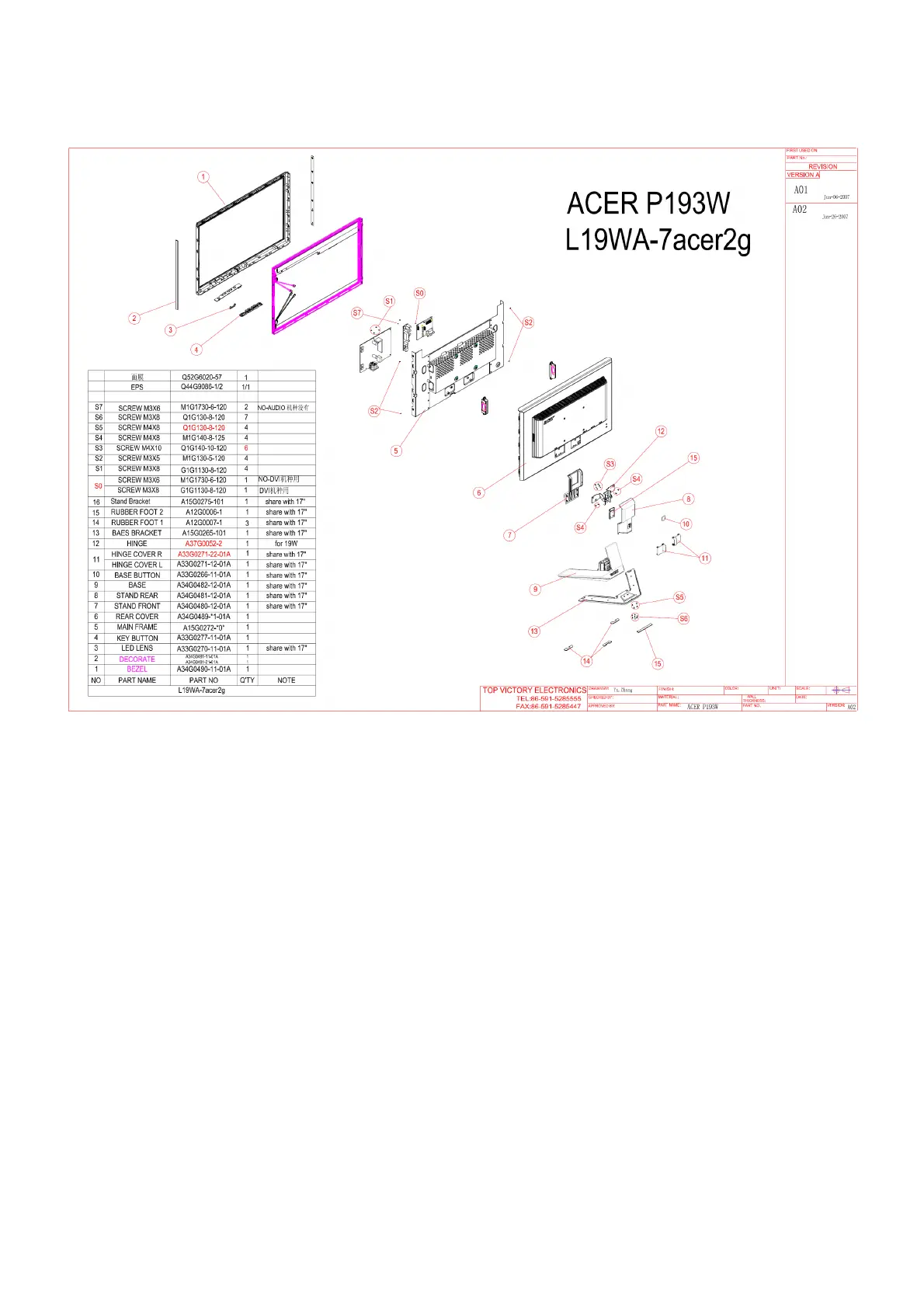

Exploded Diagram (Model: P193W)

Questions and Answers:

D
David DaltonAug 11, 2025
How to fix an Acer P193W with no power?
- D
  David FlowersAug 11, 2025
  If your Acer Monitor has no power, try these steps: First, reinsert the power cable and ensure the AC power is within the normal range of 100-240V. If that doesn't work, reinsert the power cable or inspect the power section. You may also need to measure specific points: U301 Pin2 should be 3.3V, and U304 Pin 2 should be 1.8V. Also, measure CN301 Pin3 to see if it's 5V. Check if the X201 oscillate waveforms are normal. If these steps don't resolve the issue, consider replacing components like U301, U304, X201, or U203.
M
Michelle CochranAug 18, 2025
What to do if my Acer P193W Monitor has no picture?
- D
  David FreemanAug 18, 2025
  If your Acer Monitor is displaying no picture, try these troubleshooting steps: First, measure U301 Pin2 to see if it's 3.3V and U304 Pin 2 to see if it's 1.8V. If not, consider replacing U301 and U304. Also, check if the X201 oscillate waveforms are normal; if not, replace X201. Ensure the sync signal from your computer is being output and that the video cable is properly connected. Try inputting the sync signal from the computer or changing the cable. As a last resort, replace U203.
