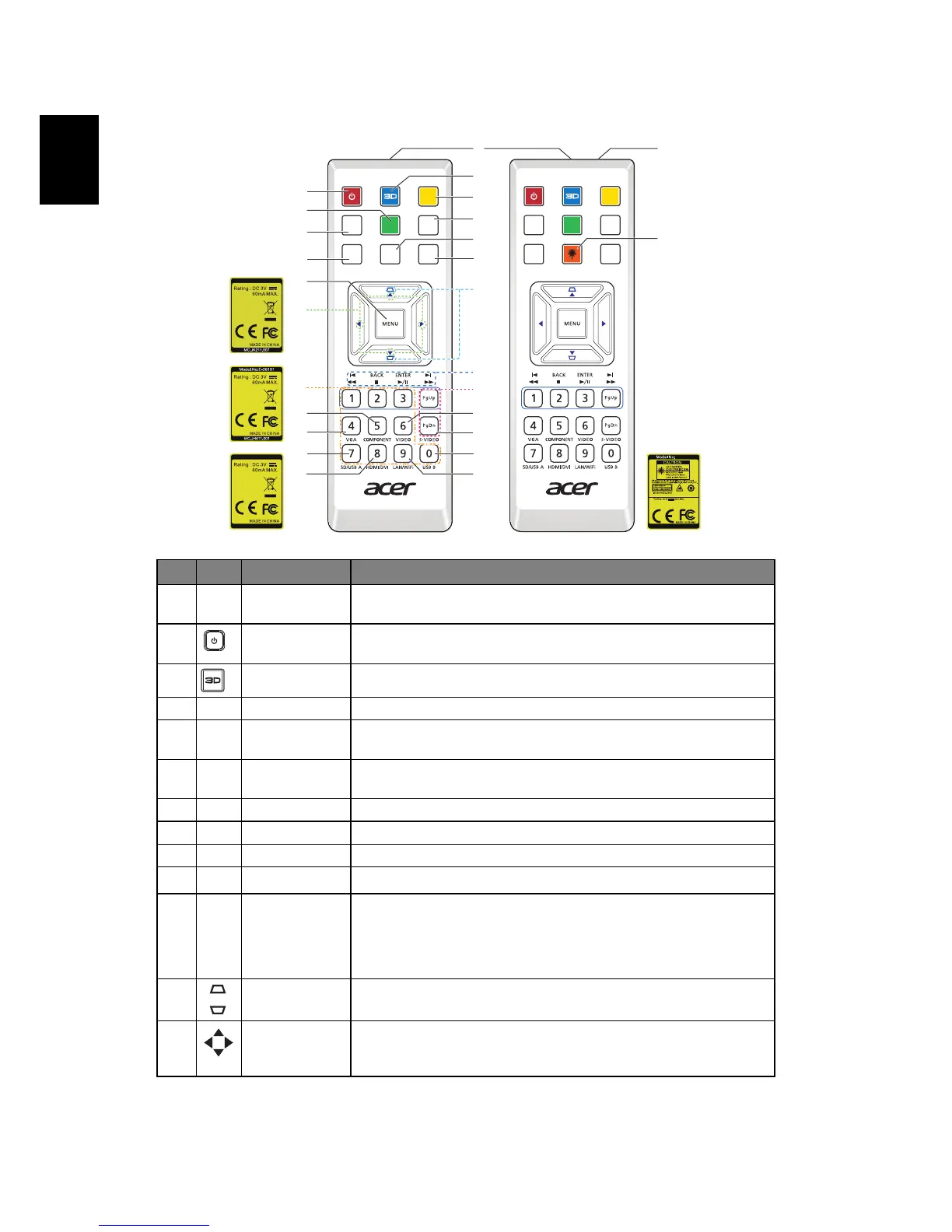

Remote Control Layout
# Icon Function Description
1 Infrared
transmitter
Sends signals to the projector.
2 POWER Refer to the "Turning the Projector On/Off" section.
3 3D Press "3D" to select 3D models.
4 SOURCE Changes the active source.
5 MODE Press "MODE" to select the display mode from Bright,
Presentation, Standard, Video, Game, Education and User.
6 HIDE Momentarily turns off the video. Press "HIDE" to hide the
image, press again to display the image.
7 MEDIA_SETUP No function.
8 RATIO To choose the desired aspect ratio.
9 ZOOM Zooms the projector display in or out.
10
FREEZE
To pause the screen image.
11 MENU
• Press "MENU" to launch the Onscreen display (OSD)
menu, back to the previous step for the OSD menu
operation or exit the OSD menu.
• Confirm your selection of items.
12 KEYSTONE Adjusts the image to compensate for distortion caused by
tilting the projector.
13 Four
directional
select keys
Use up, down, left, right buttons to select items or make
adjustments to your selection.
HIDE
RATIO
SOURCE
MODE
MEDIA
SETUP
ZOOM
FREEZE
3
6
8
10
12
16
14
20
22
24
4
1
5
7
9
11
13
15
19
17
21
23
2
18
HIDE
MEDIA
SETUP
MODE
SOURCE
ZOOM
FREEZE
26
25
Model No:E-26171
MC.JG811.009
E-26110
BONTECH ELECTRONICS(K.S) CO ., LTD .
No. 2018, Zhonghuayuan west road,
Yushan town,Kunshan city, China
LASER MODULE : M-5.2-6.5x10-5.5x5.5
MC.JK211.004
Model No:E-26281

Acer P5515 Specifications

General

Number of colors	1.073 billion colors
Native aspect ratio	16:9
Projection distance	1 - 7.1 m
Projection technology	DLP
Supported aspect ratios	4:3
Contrast ratio (typical)	12000:1
Screen size compatibility	- \
Projector native resolution	1080p (1920x1080)
Keystone correction, vertical	±40 °
Vertical synchronization (max)	120 kHz
Vertical synchronization (min)	24 kHz
Horizontal synchronization (max)	100 kHz
Horizontal synchronization (min)	15 kHz
Digital zoom	2 x
Focal length range	15.98 - 21.42 mm
Aperture range (F-F)	2.50 - 2.93
Lamp type	UHP
Lamp power	260 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	5000 h
Full HD	Yes
Analog signal format system	NTSC, PAL, SECAM
DVI port	No
USB 2.0 ports quantity	-
Noise level	33 dB
Noise level (economic mode)	29 dB
RMS rated power	10 W
Placement	Desktop
Product type	Large venue projector
Product color	Black
Market positioning	Presentation
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	325 W

Weight and Dimensions

Depth	223 mm
Width	314 mm
Height	93 mm
Weight	2500 g
