Chapter 3
63

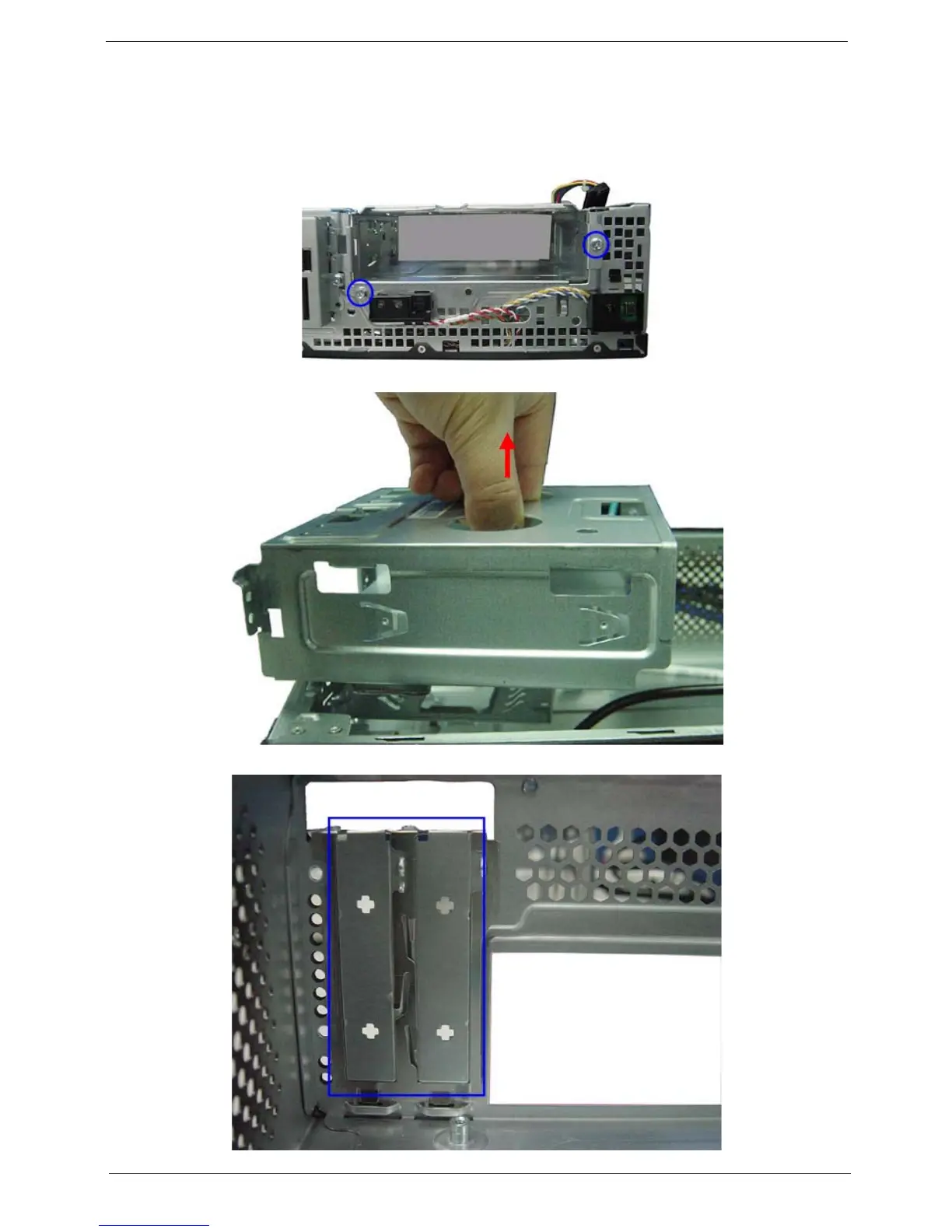

Remove the Front Bezel and the ODD Bracket
1.
Remove the front panel.(Refer to “Removing the Front Bezel” on page 30)
2.
Remove the ODD bracket.
a.
Remove the two screws.
b.
Pull the ODD bracket from the chassis.
3.
Punching in PCI Shelf slice then you can remove it.
