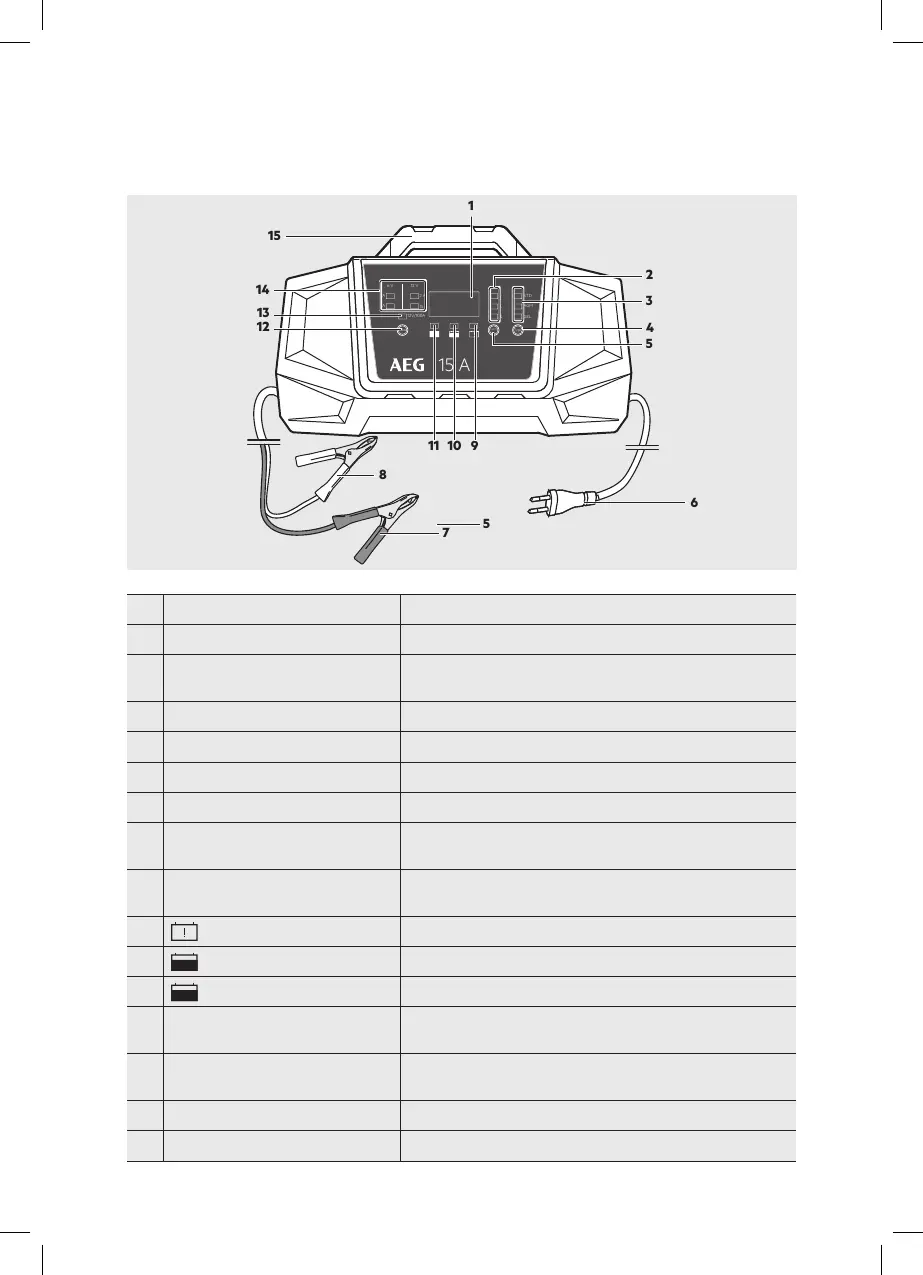

No. Description Function
1 indicates the parameters.
2 LED V / A / %
Switch with the button (3).
3 LED "STD / EFB / AGM / GEL”
4 TYPE button
5 „V / A / %“ button
6 Power cable with power plug
7
Terminal connection cable (-)
with clamp (black)
8
Terminal connection cable (+)
with clamp (red)
9
LED Error
10
LED Charge
lights up during charging.
11
LED Full
12
LED (see no. 14).
13 LED jump start mode 12V/100A
jump starting function is activated.
14 LED’s Indicate the selected charging voltage. Switch with the button (12).
15 Handle
5
15 A
8 A
2 A STD
AGM
GEL
2 A
15 A
V
A
%
12V/100A
6 V 12 V
V/A/%
Type
Mode
1
11 10 9
3
4
5
6
7
8
12
13
2
14
15
5
