Alienware m15 R7 User Manual

Steps

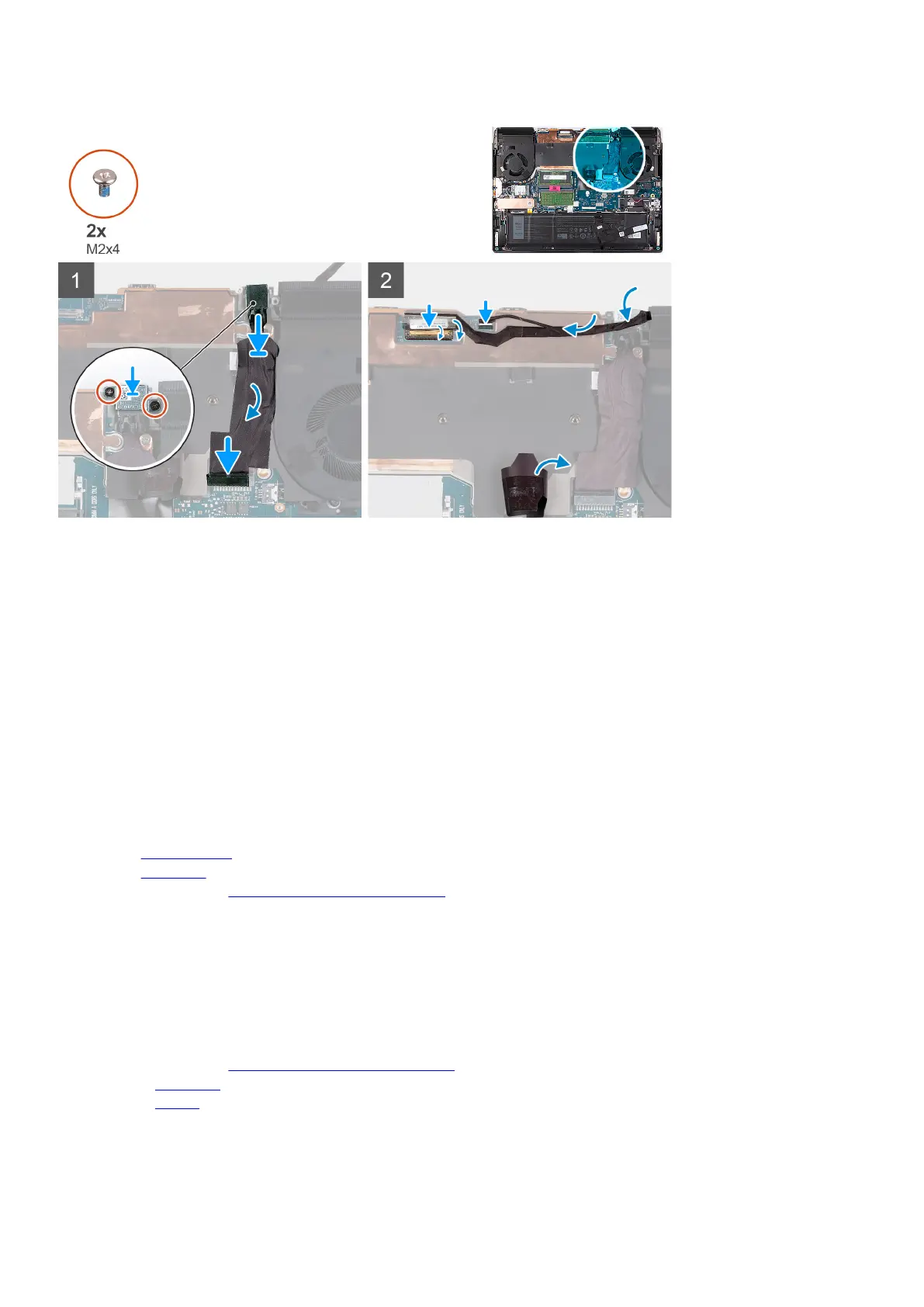

1. Lift the corner of the Mylar that covers the system board.
2. Slide the power-adapter port at an angle into the slot on the palm-rest and keyboard assembly and adhere the power-adapter
port cable to the Mylar.
3. Connect the power-adapter port cable to the system board.
4. Place the power-adapter port bracket on the power-adapter port.
5. Align the screw holes on the power-adapter port bracket to the screw holes on the palm-rest and keyboard assembly.
6. Replace the two screws (M2x4) that secure the power-adapter port bracket to the palm-rest and keyboard assembly.
7. Connect the Alien head LED-cable to the system board.
8. Adhere the display cable to the system board.
9. Connect the display cable to the system board and close the latch to secure the cable.
10.Adhere the tape that secures the display-cable connector latch to the system board.
Next steps
1. Install the
rear-I/O cover.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Touchpad
Removing the touchpad
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task
The following image(s) indicate the location of the touchpad and provides a visual representation of the removal procedure.
41

Alienware m15 R7 Specifications

General

Processor cache	24 MB
Processor cores	14
Processor model	i7-12700H
Processor family	Intel® Core™ i7
Processor frequency	- GHz
Configurable TDP-down	35 W
Processor manufacturer	Intel
On-board graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 3070 Ti
On-board graphics card model	Intel Iris Xe Graphics
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	NVMe, PCI Express
Storage media	SSD
SSD form factor	M.2
Optical drive type	No
Total storage capacity	1000 GB
Number of SSDs installed	1
Trial software	Microsoft Office 30 Day
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Memory slots	2x SO-DIMM
Internal memory	32 GB
Memory clock speed	4800 MHz
Memory form factor	SO-DIMM
Internal memory type	DDR5-SDRAM
Color name	Dark Side of the Moon
Form factor	Clamshell
Product type	Laptop
Product color	Gray
Market positioning	Gaming
Panel type	WVA
Color gamut	99 %
Pixel density	188.3 ppi
RGB color space	DCI-P3
Display diagonal	15.6 \
Anti-glare screen	Always gives an optimal view, even in direct sunlight.
Display brightness	400 cd/m²
Native aspect ratio	16:9
Maximum refresh rate	240 Hz
Contrast ratio (typical)	1000:1
Audio chip	Realtek ALC3254
Speaker power	2 W
Number of built-in speakers	2
Front camera HD type	HD
Video capturing speed	30 fps
Front camera resolution	1280 x 720 pixels
Front camera resolution (numeric)	0.92 MP
Antenna type	2x2
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Killer Wi-Fi 6E 1675i
Ethernet LAN data rates	10, 100, 1000, 2500 Mbit/s
WLAN controller manufacturer	Killer
Charging port type	DC-in jack
USB 2.0 ports quantity	0
Power adapter barrel connector	7.4 mm
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Pointing device	Touchpad
Keyboard language	German
Keyboard backlit color	RGB
Keyboard number of keys	86
Battery weight	340 g
Battery voltage	13.35 V
Battery capacity	86 Wh
Battery recharge time	3 h
Number of battery cells	6
AC adapter power	240 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.5 A
AC adapter output voltage	19.5 V
Operating shock	110 G
Operating altitude	-15.2 - 3048 m
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating altitude	-15.2 - 10668 m
Non-operating vibration	1.3 G
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	AC
Other materials content per package	218 g
Polystyrene (PS) content per package	0 g
Corrugated cardboard content per package	1102 g
Corrugated cardboard content per box for accessories	101 g
Polyethylene terephthalate (PET) content per package	15 g
Corrugated cardboard content per shipping (inner) case	128 g
Corrugated cardboard content per sleeve for accessories	873 g
Pallet width	1000 mm
Pallet length	1200 mm
Pallet weight	413000 g
Quantity per pallet	81 pc(s)
Pallet volume weight	73600 g
Quantity per pallet layer	27 pc(s)
Number of layers per pallet	3 pc(s)
Maximum number of stacking cartons	6 pc(s)
Quantity per intermodal container (20ft)	1620 pc(s)
Quantity per intermodal container (40ft)	3402 pc(s)
Package depth	553 mm
Package width	345.5 mm
Package height	76 mm
Package weight	5000 g
Package material	Corrugated cardboard, Polyethylene terephthalate (PET)
EPEAT rating	82.55 %

Weight and Dimensions

Depth	272.5 mm
Width	356.2 mm
Weight	2690 g
Height (rear)	20.6 mm
Height (front)	12.9 mm
