Alienware P111F User Manual

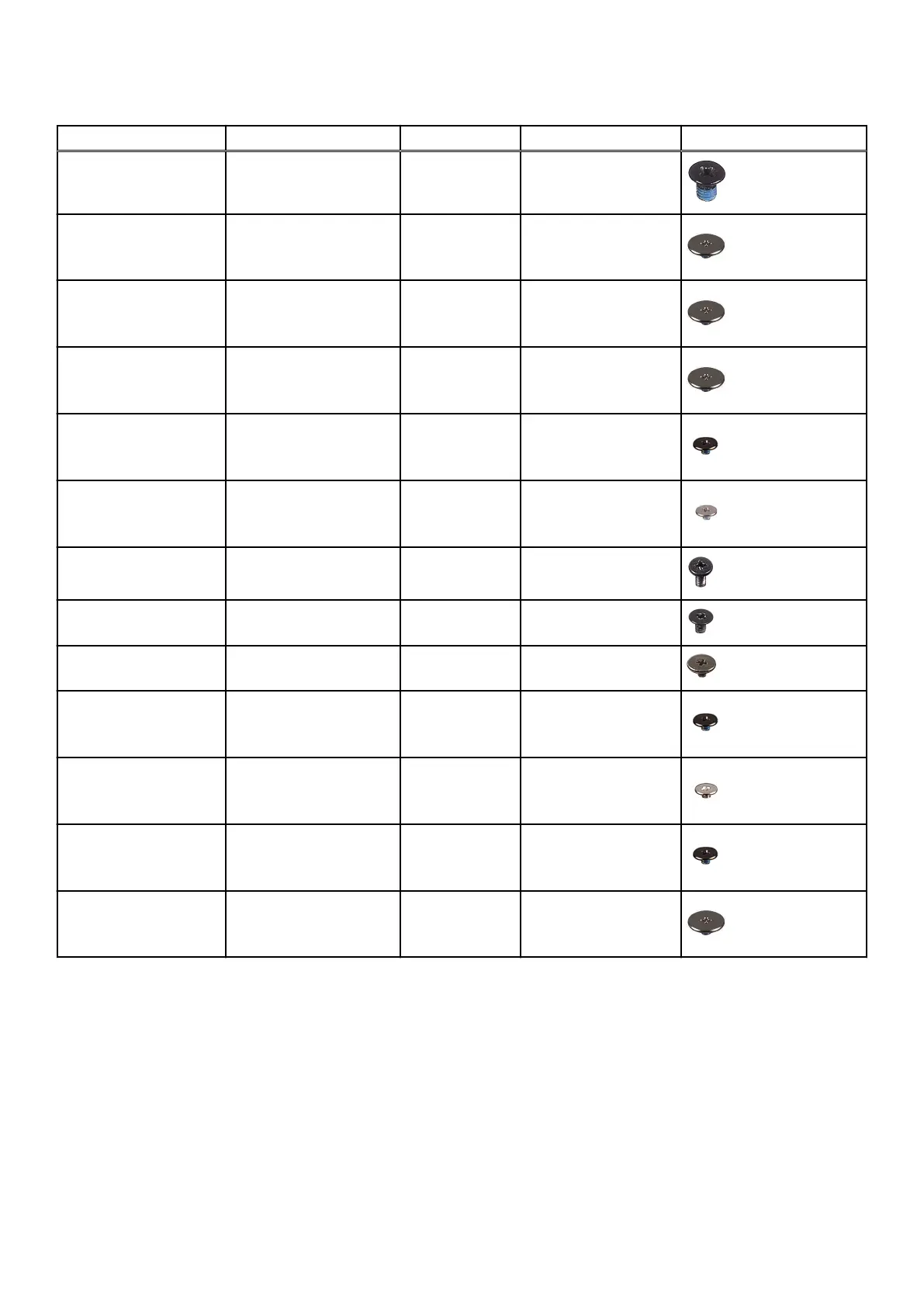

Table 1. Screw list (continued)
Component Secured to Screw type Quantity Screw image
Display assembly Palm-rest and antenna
assembly
M2.5x3.5 6
Keyboard-controller
board bracket
Palm-rest and antenna
assembly
M2x1.9 2
Touchpad bracket Palm-rest and antenna
assembly
M2x1.9 2
Touchpad Palm-rest and antenna
assembly
M2x1.9 2
Touchpad Palm-rest and antenna
assembly
M1.2x1.5 5
Keyboard-controller
board
Palm-rest and antenna
assembly
M1.6x1.6 2
System board Palm-rest and antenna
assembly
M2x4 5
Fan and heat-sink
assembly
System board M2x3 9
I/O-board Palm-rest and antenna
assembly
M1.6x1.8 4
Keyboard bracket Palm-rest and antenna
assembly
M1.2x1.5 15
Keyboard Palm-rest and antenna
assembly
M1.2x1.2 32
Power-button bracket Palm-rest and antenna
assembly
M1.2x1.5 2
Power-button bracket Palm-rest and antenna
assembly
M2x1.9 2
Major components of Alienware x15 R1
The following image shows the major components of Alienware x15 R1.
