About this task

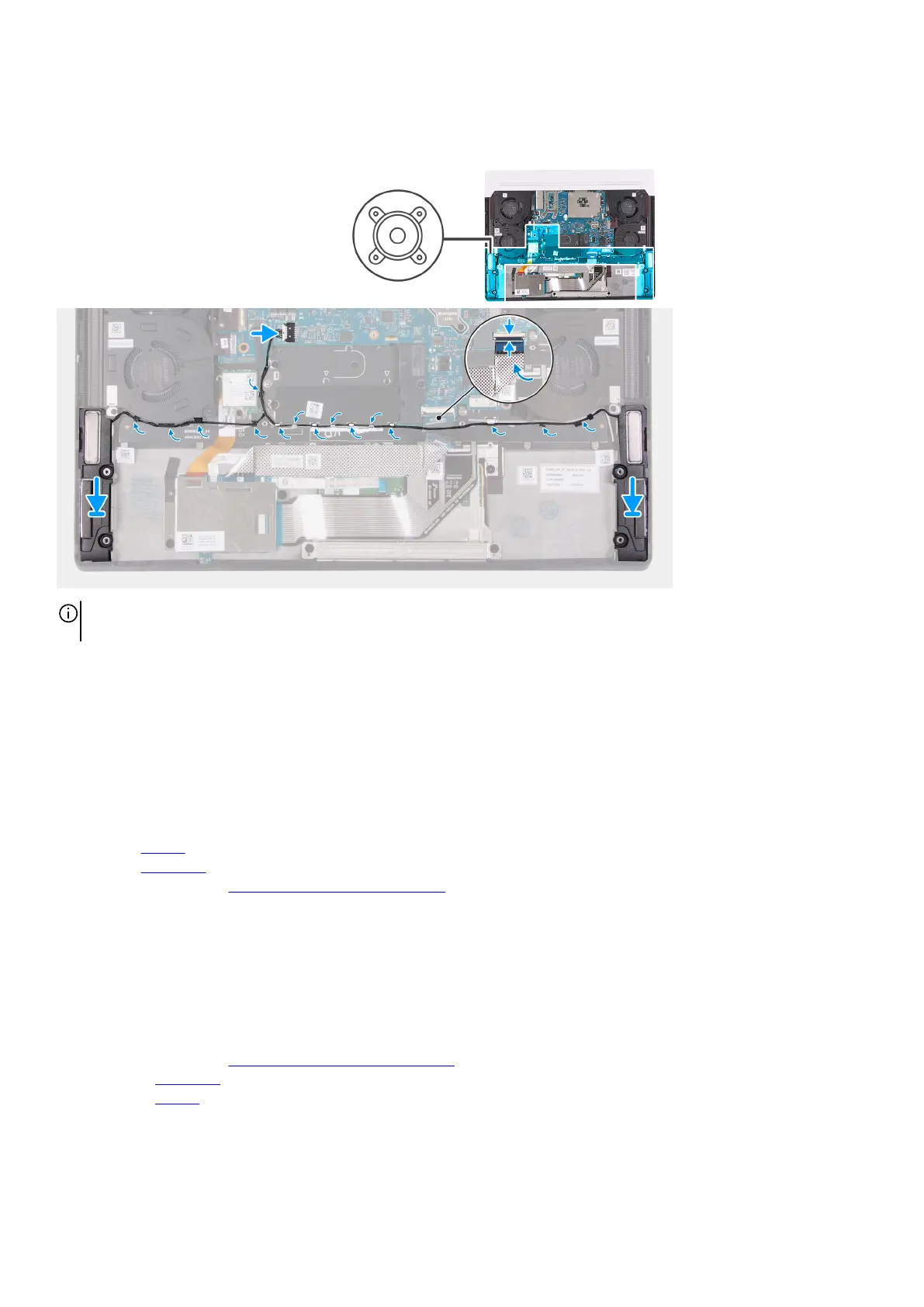

The following image(s) indicate the location of the speakers and provides a visual representation of the installation procedure.
NOTE: If the rubber grommets are pushed out of the speakers when removing the speakers, push them back in place before
replacing the speakers.
Steps
1. Using the alignment posts, place the left and right speakers into their slots on the palm-rest and keyboard assembly.
2. Route the speaker cable through the routing guides on the palm-rest and keyboard assembly.
3. Adhere the tape that secures the speaker cable to the palm-rest and keyboard assembly.
4. Connect the keyboard-controller board cable to the system board and close the latch to secure the cable.
5. Connect the speaker cable to the system board.
Next steps
1. Install the
battery.
2. Install the
base cover.
3. Follow the procedure in After working inside your computer.
Touchpad
Removing the touchpad
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task
The following image(s) indicate the location of the touchpad and provides a visual representation of the removal procedure.
