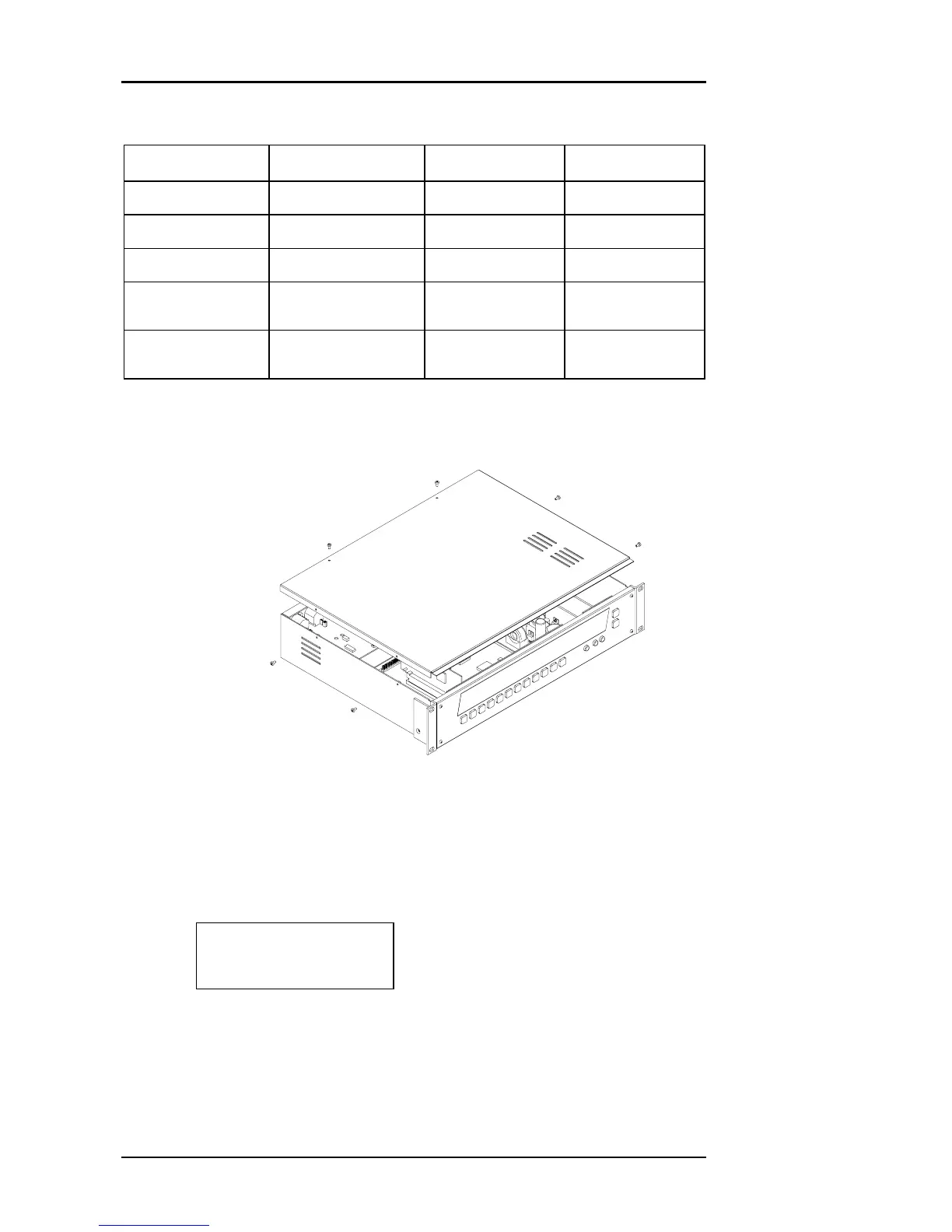

26 Hardware Configuration
DR128 U
SER
G
UIDE
%&&&'
Setting Adjustment Made Factory Setting Notes
Mic Input Gain On rear panel Gain minimum Fully anti-clockwise
Mic/Line Pad Links on Mic In PCB Pad not enabled Links fitted
Mic Phantom Power Links on Mic In PCB Phantom Power On Links fitted
Line In Sensitivity Internal trimmer on
Line Out PCB
-10dBV sensitivity Trimmer fully
clockwise
Output Sensitivity Internal trimmer on
Line Out PCB
+4dBu sensitivity Trimmer fully anti-
clockwise
&()$*+,
,*
Signal Levels
-&-().
&&/"0*1&&.*
,"/&2(
Green on at -36 dBFS
Red on at -6 dBFS
%3!45(
60/.&*7!
,
