ALLEN & HEATH GLD User Manual

GLD User Guide 11 AP8561 iss.3

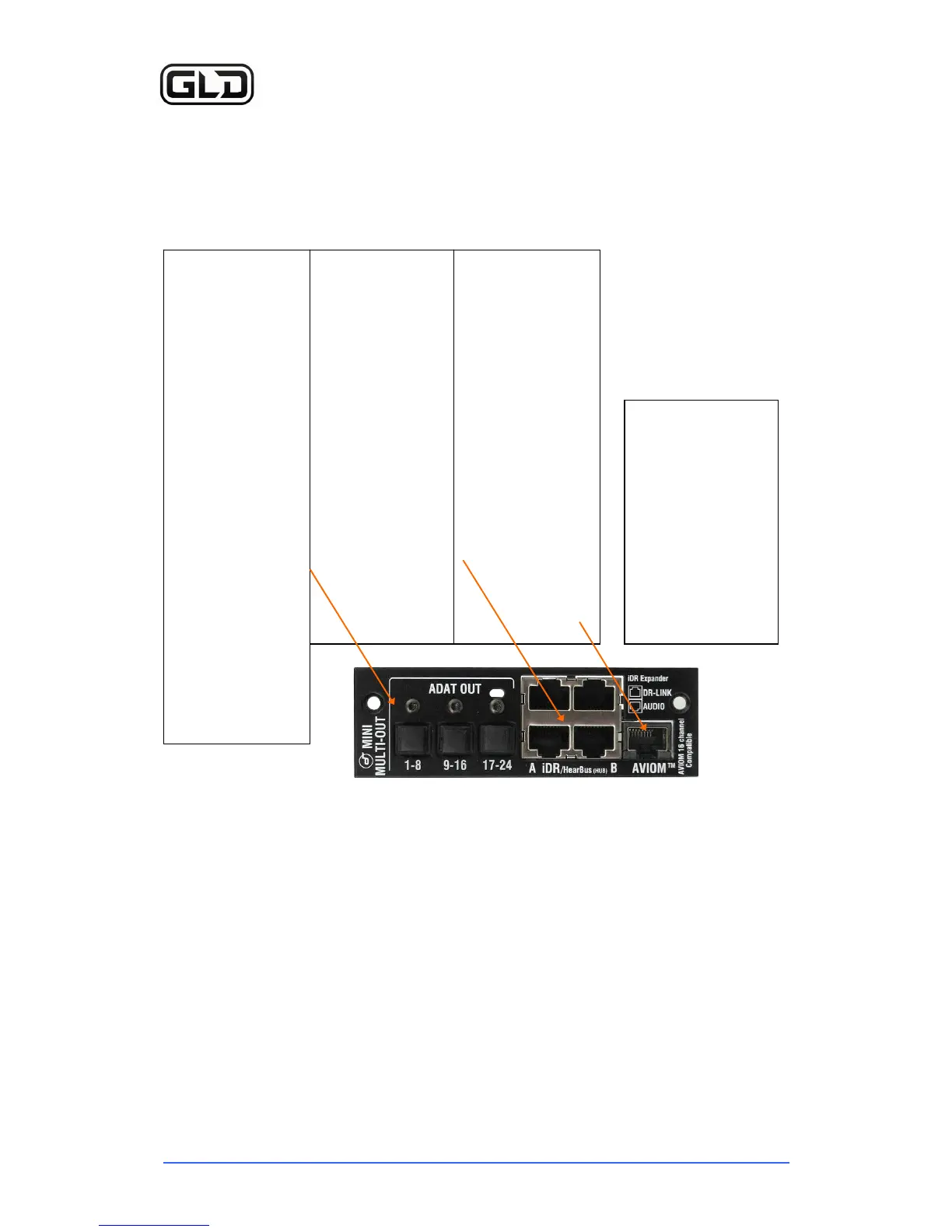

I/O Port fitted with MMO card option
Up to 64 GLD inputs and 64 outputs can be assigned to an audio option card fitted to the GLD rear panel
I/O Port. The MMO (Mini Multi Out) card provides several output formats – 24 channels of ADAT optical
out, two 8 channel iDR links to connect the Allen & Heath iDR-8 or iDR-4 mix processors, or the iDR-Out
or iDR-Dout output expander, and also compatible with the HearBus hub, and a 16 channel output
compatible with Aviom
®
A-Net 16 or the Allen & Heath ME personal mixing system running in Aviom mode.
The card uses 56 channels from the port. These are assigned using the I/O / Port Out screen. The port
channels map to the MMO sockets as below:
GLD Port Map
Port Out: MMO:
ADAT
1 ADAT 1
2 ADAT 2
3 ADAT 3
4 ADAT 4
5 ADAT 5
6 ADAT 6
7 ADAT 7
8 ADAT 8
9 ADAT 9
10 ADAT 10
11 ADAT 11
12 ADAT 12
13 ADAT 13
14 ADAT 14
15 ADAT 15
16 ADAT 16
17 ADAT 17
18 ADAT 18
19 ADAT 19
20 ADAT 20
21 ADAT 21
22 ADAT 22
23 ADAT 23
24 ADAT 24
GLD Port Map
Port Out: MMO:
iDR A
25 iDR-A 1
26 iDR-A 2
27 iDR-A 3
28 iDR-A 4
29 iDR-A 5
30 iDR-A 6
31 iDR-A 7
32 iDR-A 8
iDR B
33 iDR-B 1
34 iDR-B 2
35 iDR-B 3
36 iDR-B 4
37 iDR-B 5
38 iDR-B 6
39 iDR-B 7
40 iDR-B 8
GLD Port Map
Port Out: MMO:
Aviom
®
41 Aviom 1
42 Aviom 2
43
Aviom 3
44
Aviom 4
45
Aviom 5
46
Aviom 6
47
Aviom 7
48
Aviom 8
49 Aviom 9
50
Aviom 10
51
Aviom 11
52
Aviom 12
53
Aviom 13
54
Aviom 14
55
Aviom 15
56
Aviom 16
A
ssign each output:
• Unassigned
• Input Direct Out
• Group
• Aux
• Main Mix
• Matrix
• Rack FX
• USB playback
• Input socket
• I/O Port input
• PAFL monitor
• Wedge/IEM monitor
