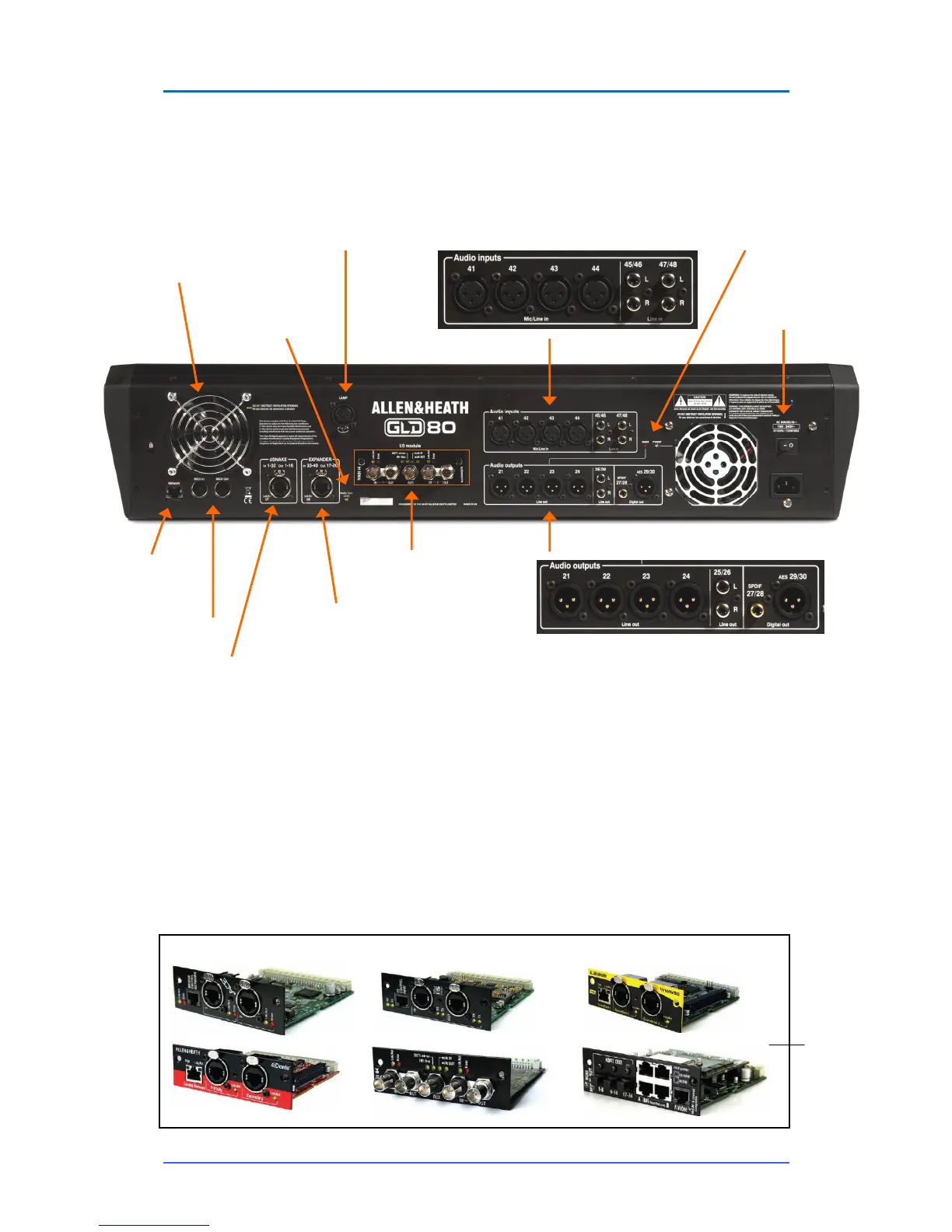

Surface audio inputs 8 analogue inputs:
4 mic/line XLR (skt 41-44)
2 stereo RCA pairs (skt 45-48)
Any socket can be patched to any channel.
The default is one-to-one mapping of sockets
to channels.
dSNAKE link
This is the GLD mixer to
AR2412 AudioRack link. It
carries audio inputs from skt 1-
32 and outputs to skt 1-16. It
also carries the audio sends to
the AudioRack MONITOR port.
Connect using a CAT5 cable up
to 120m (396’) long.
The Lnk/Err indicator flashes at
a steady rate when the link is
established.
MIDI in and out
4-pin XLR Lamp socket.
We recommend the use
of the Allen & Heath
LEDlamp with built-in
dimmer.
Mains power IEC
input socket and
On/Off switch.
Surface audio outputs 6 analogue and 4
digital outputs
4 XLR line out (skt 21-24)
1 stereo RCA pair (skt 25/26)
1 SPDIF 2 channel digital out (skt 27/28)
1 AES 2 channel digital out (skt 29/30)
Any GLD signal can be patched to any socket.
Power On indicator
Ready indicator –
Lights yellow when
the output sockets
are ready to pass
audio after power up.
EXPANDER link
You can plug an AR84 expander
in here. This carries audio inputs
from skt 33-40 and outputs to skt
17-20.
The AR84 can be located near
the GLD mixer to provide more
I/O at the mixer, or up to 120m
away to provide more I/O on
stage or at a remote location.
Connect to using a CAT5 cable
up to 120m (396’) long.
The Lnk/Err indicator flashes at
a steady rate when the link is
established.
I/O Port See below
