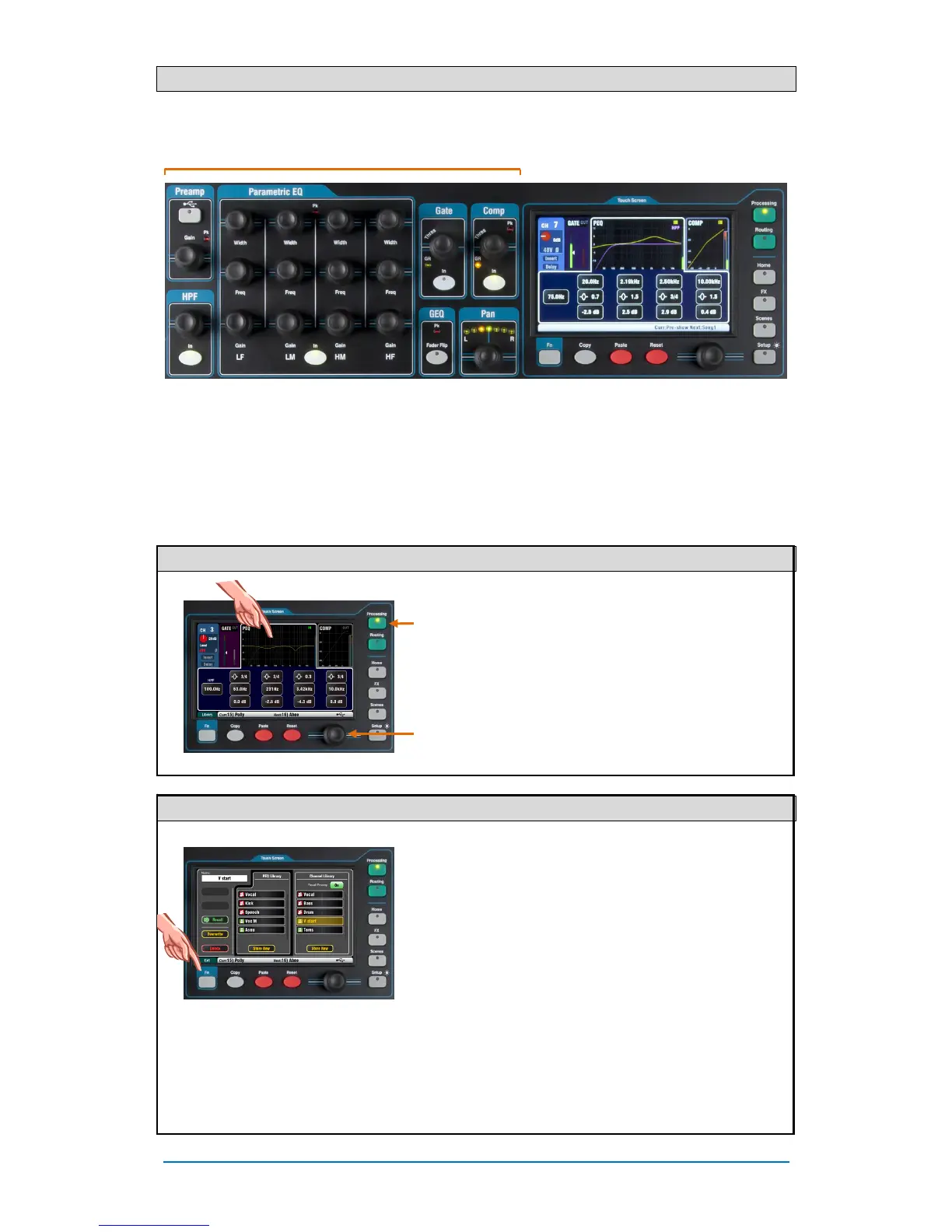

6.3 Channel Processing
The SuperStrip provides familiar, analogue feel, one function per knob control of channel and mix
master processing such as equalisers and dynamics. The Touch Screen displays the parameter values
and provides additional related controls while in the Processing screen. This processing is accessed
using the fader strip Sel keys.
The following processing is available:
Mono input CH = Source, Preamp, HPF, Gate, PEQ, Compressor, Delay, Stereo Linking
Stereo input ST1-3 = Source, Preamp, HPF, Gate, PEQ, Compressor, Delay
FX Return 1-4 = FX parameters, PEQ
Groups (not Qu-16) = Parametric EQ, Graphic EQ, Compressor, Delay
Mix1-10, LR = Parametric EQ, Graphic EQ, Compressor, Delay
Matrix (not Qu-16) = Parametric EQ, Graphic EQ, Compressor, Delay
6.4 Working with the Processing:
 Press a fader strip Sel key. The Processing Block
controls become active for that channel.
 Press the Processing key to work with the parameters
on the Touch Screen.
 Touch the top part of the Touch Screen to open the
tabs for the available processing blocks.
 View values in the lower part of the screen. Touch
screen buttons and use the screen rotary to adjust
parameter values.
6.5 Working with Processing Libraries:
 Press the ‘Library’ Fn key to open and close the related
Library page.
 Use the left hand list for individual processing libraries
or the right hand list for complete input channel
processing libraries including the preamp.
 Store - Touch ‘Store New’. Enter a name using the
screen keypad to store a new User Library. You can
store up to 128 Libraries.
 Recall - Highlight a library item and touch ‘Recall’ to
instantly recall its settings. Turn on ‘Recall Preamp’ if
you want to recall the preamp settings.
 Edit – Highlight a library item and touch ‘Overwrite’ to
overwrite an existing library with the current settings, or
‘Delete’ to delete it from the list. Touch the ‘Name’ box
to edit its name.

ALLEN & HEATH Qu-32 Specifications

General

Sample rate	48 kHz
Channels quantity	32 channels
Digital sound processing	- bit
DJ mixer	-
USB port	Yes
Product color	Black
USB connector type	USB Type-B
XLR out	2
Master (XLR) out	24
RJ-45 ports quantity	1
Power consumption (typical)	- W
Output impedance	75 Ω

Weight and Dimensions

Depth	471 mm
Width	849 mm
Height	190 mm
Weight	20000 g
Package type	Box
Package depth	680 mm
Package width	1000 mm
Package height	350 mm
Package weight	24000 g
