ALLEN & HEATH Qu-32 User Manual

Qu Mixer User Guide 36 AP9372 iss.4

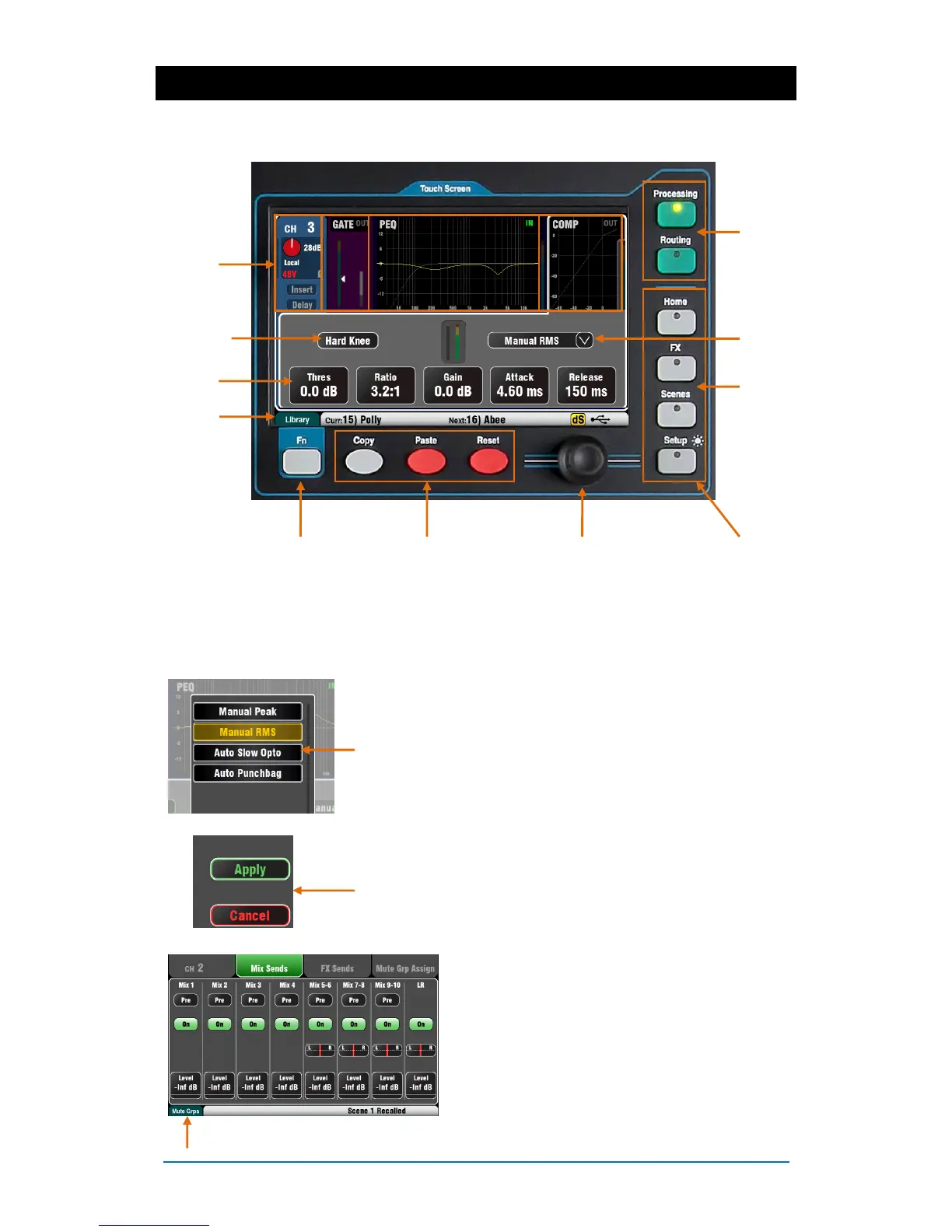

7. Touch Screen Mixing Functions
The Qu features an 800x480 pixel, colour touch screen for quick and intuitive setup and control of the mix.
The Qu-16 and Qu-24 have 5” screens. The Qu-32 has a larger 7” screen.
Button – Touch to select its function or change its state. Some
functions need be touched for at least 1 second to avoid accidental
operation, for example switching 48V phantom power or resetting the
mixer. These are marked ‘(Hold)’.
Parameter box – Touch to change its value. The box highlights
orange to show it is selected and can be adjusted using the screen
rotary.
Option Menu – Touch to open a list of options available. Scroll
using the screen rotary and touch an item in the list to select it. Several
menu lists are available within the screens, for example, to choose a
compressor type.
Screen Rotary – Use this to change the value of the parameter in
the box highlighted orange on the screen, or to scroll through lists.
Apply / Cancel – Some setup screens present several parameters
associated with one function, for example channel linking. These can
be chosen before they are applied. Touch Apply to accept the changes
or Cancel to close the screen without accepting the changes.
Function Key – The Fn key provides access to
further options associated with the currently selected
screen, for example channel source selection and
processing libraries. It is also used to access the Mute
Group and Matrix mix settings. If available, its function
will appear in the lower toolbar above the key. Press
the key again to close the option screen.
This example shows access to the Mute Groups
screens from within a Routing screen.
Status toolbar
Screen select keys
Button
Edit keys
Screen Rotary
Other screens
Sel screens
Function key
Parameter box
TouchChannel
Touch to select
each processing
block
Option menu

ALLEN & HEATH Qu-32 Specifications

General

Sample rate	48 kHz
Channels quantity	32 channels
Digital sound processing	- bit
DJ mixer	-
USB port	Yes
Product color	Black
USB connector type	USB Type-B
XLR out	2
Master (XLR) out	24
RJ-45 ports quantity	1
Power consumption (typical)	- W
Output impedance	75 Ω

Weight and Dimensions

Depth	471 mm
Width	849 mm
Height	190 mm
Weight	20000 g
Package type	Box
Package depth	680 mm
Package width	1000 mm
Package height	350 mm
Package weight	24000 g
