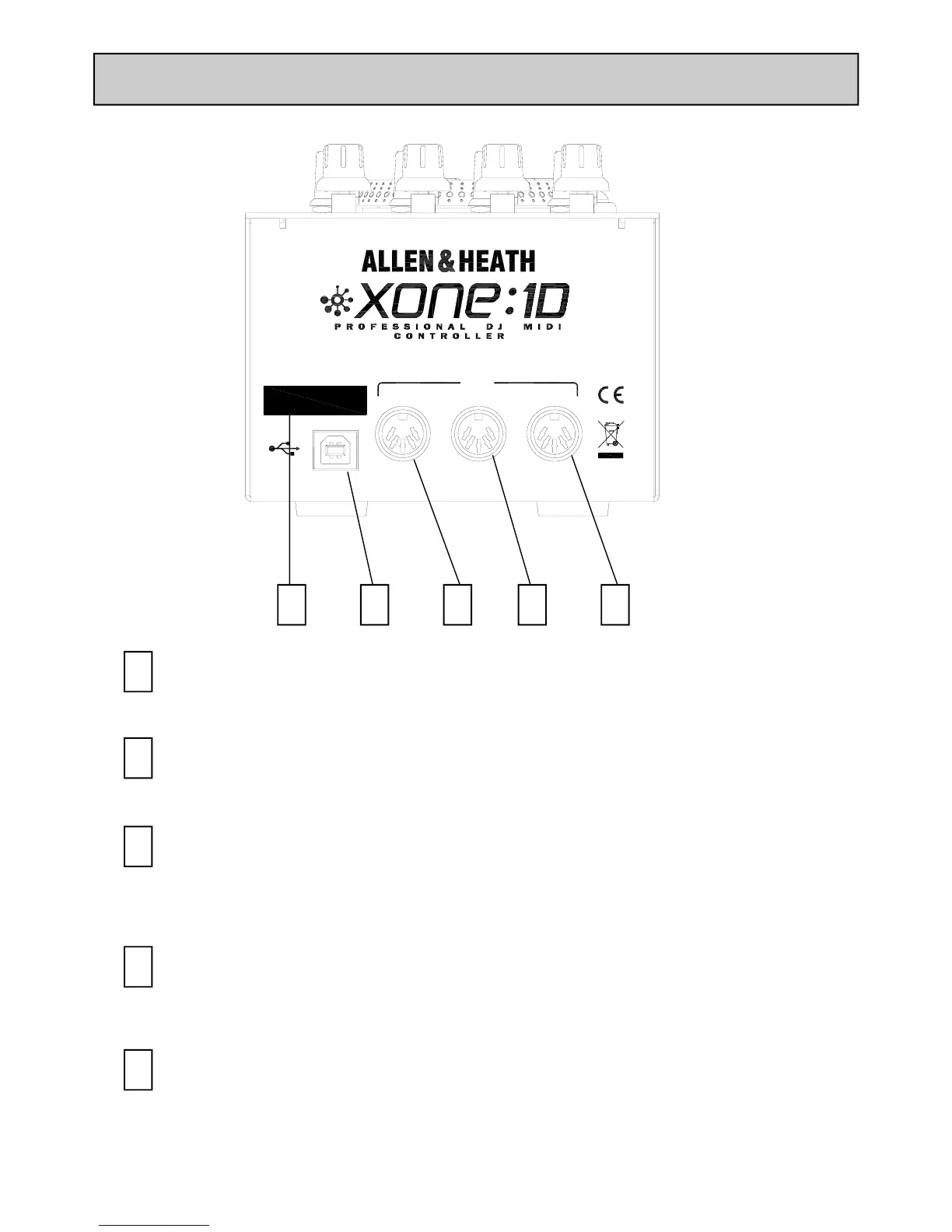

REAR PANEL CONNECTORS
OUTIN
MIDI
SERIAL No:
THRU
TO PC
USB
1 3 2 4 5
1
SERIAL NUMBER
The serial number of your Xone:1D
2
USB Connector
Socket for connecting the Xone:1D to the PC/Mac
3
MIDI In Socket
5-pin DIN style socket for connecting other MIDI devices through the Xone:1D. The
messages from the other device(s) are merged with the MIDI from the Xone:1D
controls before being sent to the PC via USB.
4
MIDI THRU Socket
5-pin DIN style socket for daisy-chaining to other MIDI devices. The MIDI THRU
socket outputs what is coming into the MIDI IN socket.
5
MIDI OUT Socket
5-pin DIN style socket for connecting to other MIDI devices. The data on the MIDI
OUT socket is the Xone:1D data merged with the USB data.
