Allen & Heath 15 XONE:3D User Guide
+6
OF F
+ 10!
1
FILTER
1
CUE
2
OF F
HF
OF F
LF
+6
OF F
MF
+6
LEVEL
-10
+10
0
FX2
0
+6
0
FX1
0
+6
PRE
-15
-20
OO
-6
-3
-10
+3
+6
0
XFADE
X
Y
SC 1 - 2
LINE B
LINE A

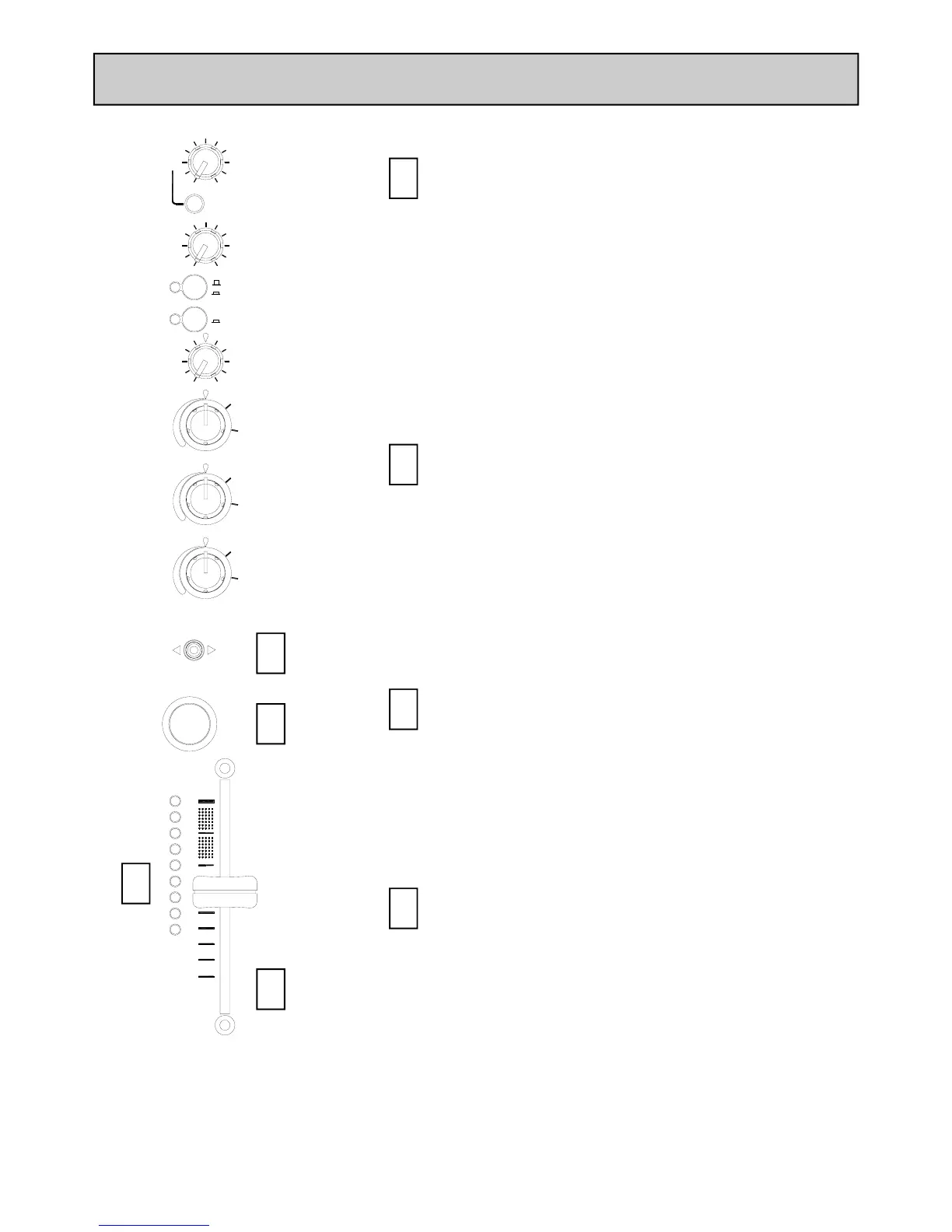

MIXER SECTION — CHANNEL INPUT
5
6
7
8
Filter/Crossfade Assignment
The channel signal can be routed directly
to the main mix or via either of the two
filter/crossfade paths. Note that the
crossfade affects the filter path only.
Set the 3-position switch to its mid
position to route the signal direct to the
mix, or to its left or right positions to
route the signal to filter-1/crossfade-X or
filter-2/crossfade-Y respectively.
To enable the crossfader check that the
XFADE ON switch above the filter1
controls is pressed.
5
Cue Switch
Press the cue switch to listen to the channel
pre-fade signal in the headphones and see its
level on the main meters. The led indicator
ring around the switch lights when selected.
The big red CUE ACTIVE indicator also
lights to warn that you are monitoring the
channel signal rather than the main mix.
Press the switch to deselect cue. The
switches are interlocked; pressing another
one turns off the previous selection.
6
Channel Meter
Displays the channel signal level. It is pre-EQ
and pre-fader. This means it is not affected
by the EQ or fader position.
The channel level control should be set so
that the meter averages around ‘0’ with
loudest peaks no higher than ‘+6’. Turn
down the level control if the +10 peak
indicator lights.
7
Channel Fader
A high quality, smooth travel dual-rail fader
adjusts the channel signal level from fully off
to fully on.
8
