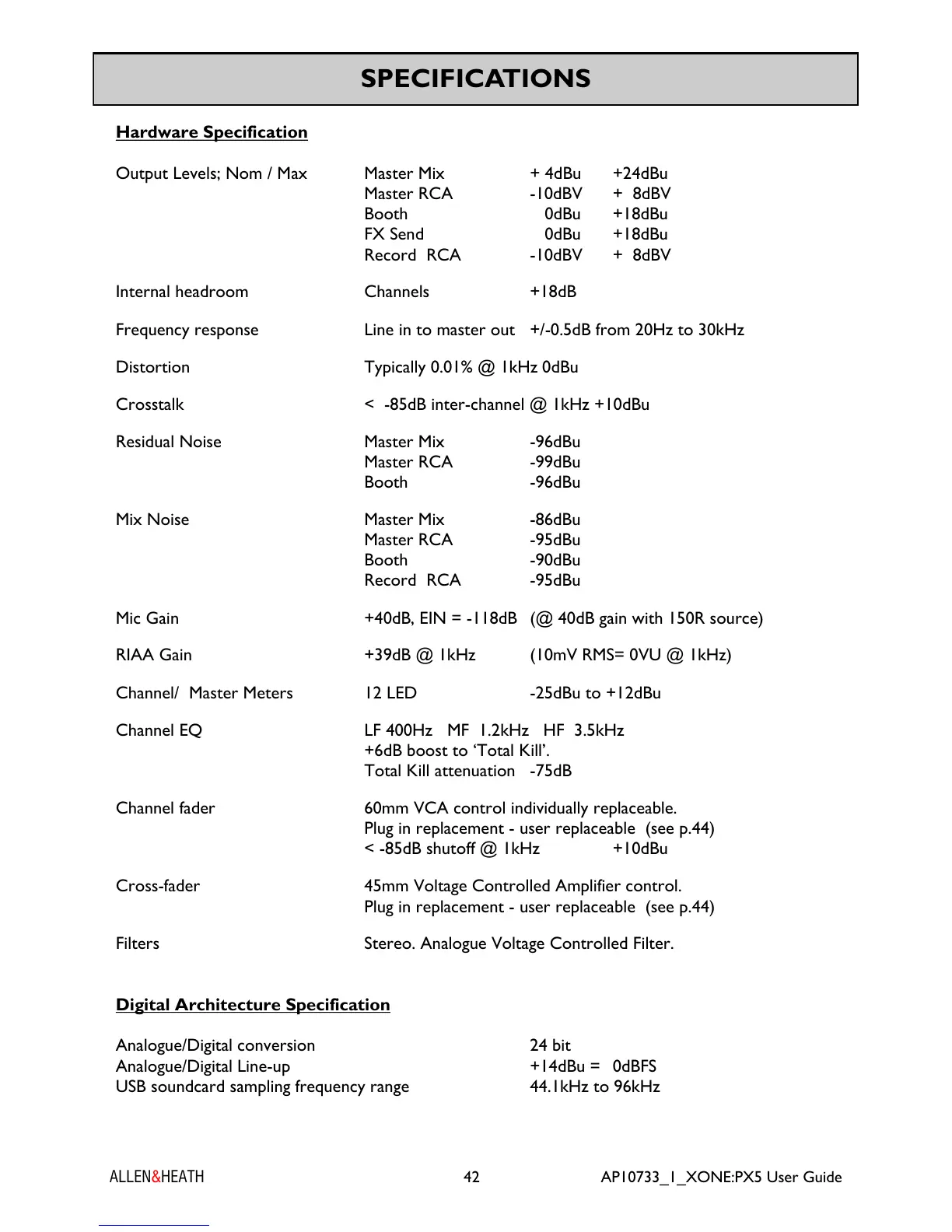

SPECIFICATIONS
Hardware Specification
Output Levels; Nom / Max Master Mix + 4dBu +24dBu
Master RCA -10dBV + 8dBV
Booth 0dBu +18dBu
FX Send 0dBu +18dBu
Record RCA -10dBV + 8dBV
Internal headroom Channels +18dB
Frequency response Line in to master out +/-0.5dB from 20Hz to 30kHz
Distortion Typically 0.01% @ 1kHz 0dBu
Crosstalk < -85dB inter-channel @ 1kHz +10dBu
Residual Noise Master Mix -96dBu
Master RCA -99dBu
Booth -96dBu
Mix Noise Master Mix -86dBu
Master RCA -95dBu
Booth -90dBu
Record RCA -95dBu
Mic Gain +40dB, EIN = -118dB (@ 40dB gain with 150R source)
RIAA Gain +39dB @ 1kHz (10mV RMS= 0VU @ 1kHz)
Channel/ Master Meters 12 LED -25dBu to +12dBu
Channel EQ LF 400Hz MF 1.2kHz HF 3.5kHz
+6dB boost to ‘Total Kill’.
Total Kill attenuation -75dB
Channel fader 60mm VCA control individually replaceable.
Plug in replacement - user replaceable (see p.44)
< -85dB shutoff @ 1kHz +10dBu
Cross-fader 45mm Voltage Controlled Amplifier control.
Plug in replacement - user replaceable (see p.44)
Filters Stereo. Analogue Voltage Controlled Filter.
Digital Architecture Specification
Analogue/Digital conversion 24 bit
Analogue/Digital Line-up +14dBu = 0dBFS
USB soundcard sampling frequency range 44.1kHz to 96kHz
