ALLEN&HEATH 45 AP10733_1_XONE:PX5 User Guide

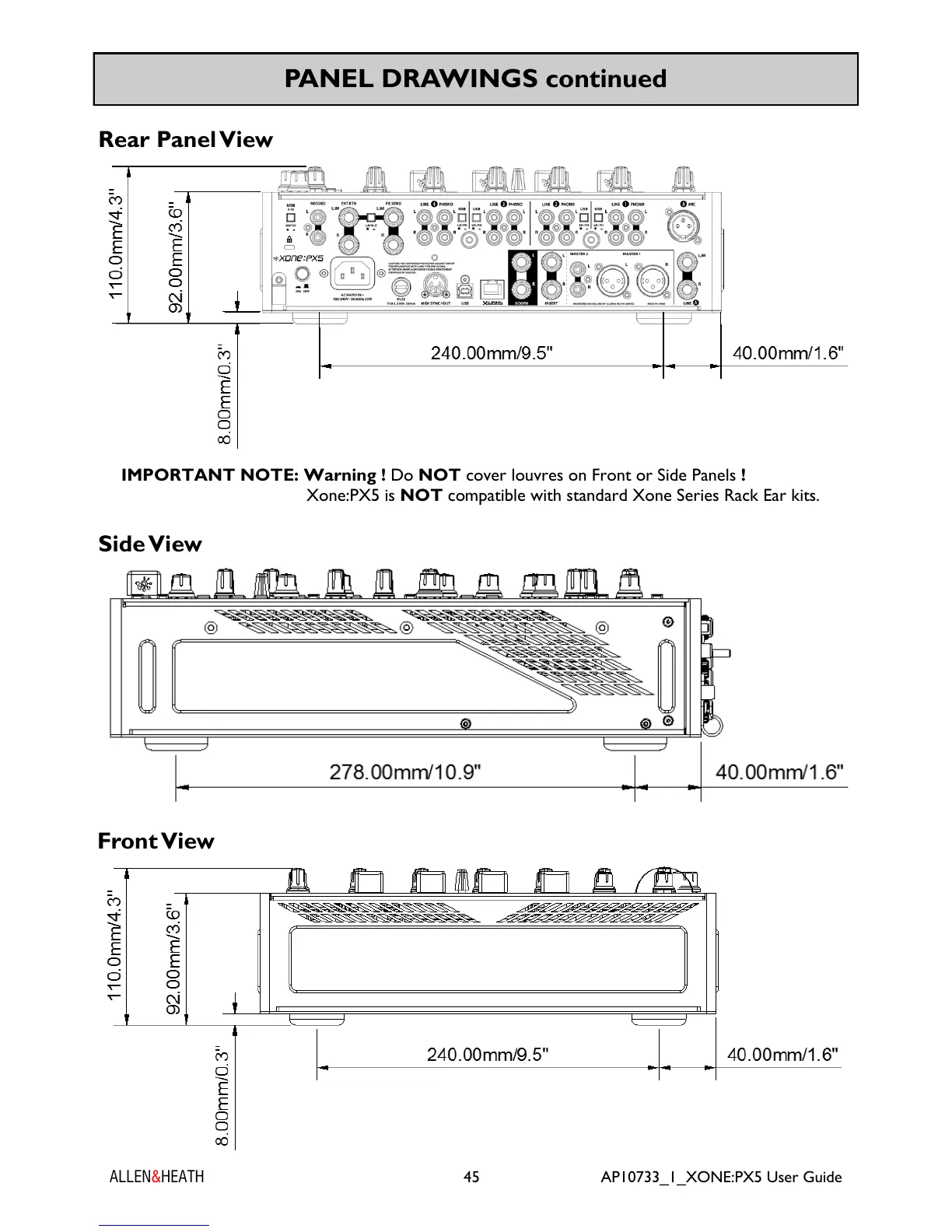

PANEL DRAWINGS continued
Side View
Front View
IMPORTANT NOTE: Warning ! Do NOT cover louvres on Front or Side Panels !
Xone:PX5 is NOT compatible with standard Xone Series Rack Ear kits.
Rear Panel View
