46 Rockwell Automation Publication PFLEX-AP005B-EN-P - May 2019
Chapter 1 Drive Selection Considerations

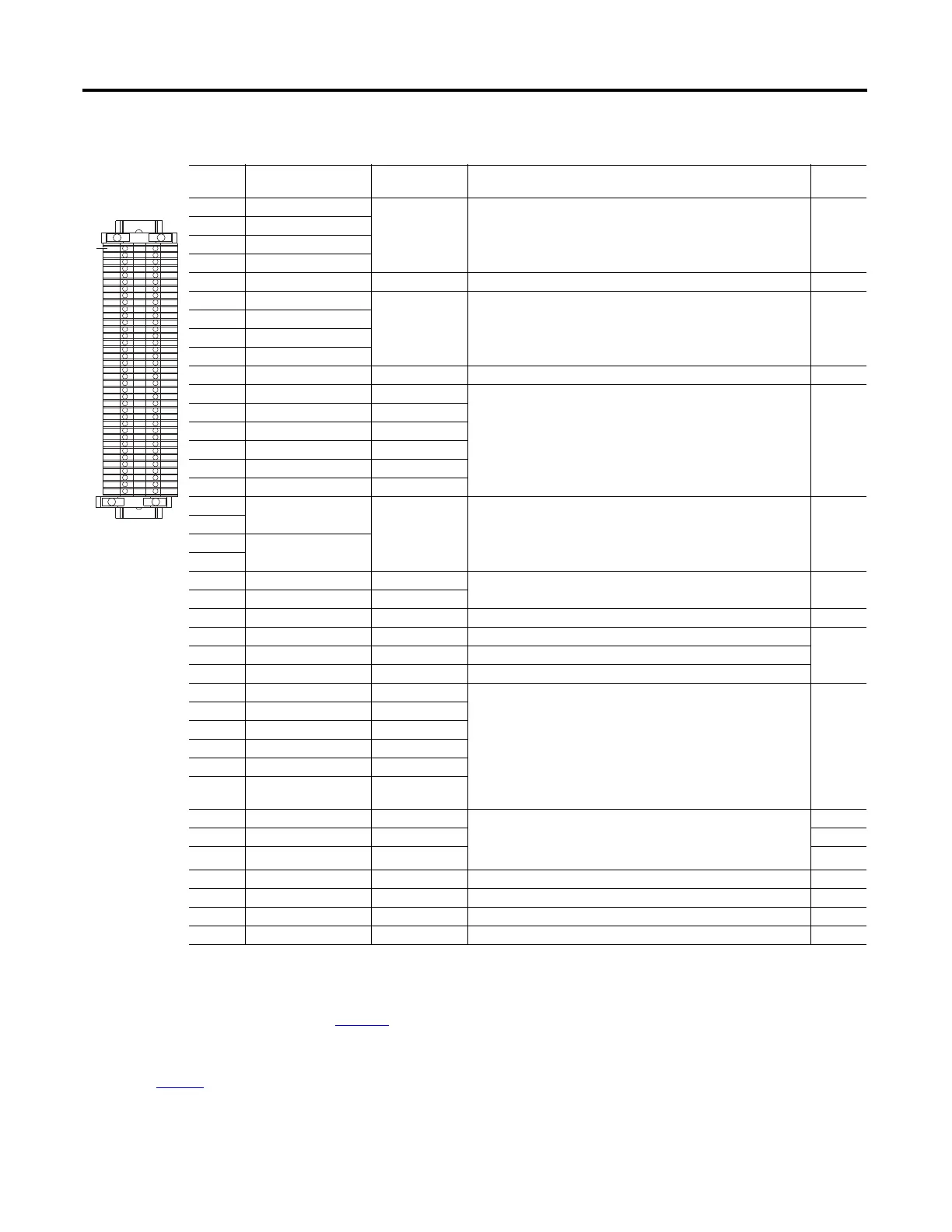

Table 24 - PowerFlex 700 Drives I/O Control Terminal Designations (Frames 7…10)
Terminal Name
Factory
Default Description
Related
Param.
1 Analog In 1 (–)
(1) (3)
Isolated
(4)
, bipolar, differential, 10V/4…20 mA, 11 bit and sign,
88 kohm input impedance
For 4…20 mA, a jumper must be installed at terminals 17 and 18
(or 19 and 20)
320-327
2 Analog In 1 (+)
(1)
3 Analog In 2 (–)
(1)
4 Analog In 2 (+)
(1)
5 Pot Common – For (+) and (–) 10V pot references.
6 Analog Out 1 (–)
(3)
Bipolar (current output is not bipolar),10V/4…20 mA, 11 bit and
sign, voltage mode - limit current to 5 mA.
Current mode - max. load resistance is 400 ohms
340-347
7 Analog Out 1 (+)
8 Analog Out 2 (–)
9 Analog Out 2 (+)
10 HW PTC Input 1 – 1.8 kohm PTC, Internal 3.32 k ohm pull-up resistor 238 259
11 Digital Out 1 – N.C.
(2)
Fault Max. Resistive Load:
240V AC/30V DC – 1200VA, 150 W
Max. Current: 5 A, Min. Load: 10 mA
Max. Inductive Load:
240V AC/30V DC – 840VA, 105 W
Max. Current: 3.5 A, Min. Load: 10 mA
380-391
12 Digital Out 1 Common
13 Digital Out 1 – N.O.
(2)
NOT Fault
14 Digital Out 2 – N.C.
(2)
NOT Run
15 Digital Out 2/3 Com.
16 Digital Out 3 – N.O.
(2)
Run
17 Current In Jumper
(1)
–
Analog In 1
Placing a jumper across terminals 17 and 18 (or 19 and 20) will
configure that analog input for current
18
19 Current In Jumper
(1)
–
Analog In 2
20
21 –10V Pot Reference – 2 kohm minimum load
22 +10V Pot Reference –
23 HW PTC Input 2 – See above.
24 +24VDC
(5)
– Drive supplied logic input power
(5)
25 Digital In Common –
26 24V Common
(5)
– Common for internal power supply.
27 Digital In 1 Stop - CF 115V AC, 50/60 Hz - Opto isolated
Low State: less than 30V AC
High State: greater than 100V AC
24V DC - Opto isolated
Low State: less than 5V DC
High State: greater than 20V DC
11.2 mA DC
361-366
28 Digital In 2 Start
29 Digital In 3 Auto/Man.
30 Digital In 4 Speed Sel 1
31 Digital In 5 Speed Sel 2
32 Digital In 6/
Hardware Enable
Speed Sel 3
33 Digital Out 4 – N.C. Fault Dedicated fault output - Not user configurable
Relay will energize (pick up) when power is applied to drive and
deenergize (drop out) when a fault exists.
See Terminals 11
…16 for specs.
34 Digital Out 4 Common
35 Digital Out 4 – N.O. NOT Fault
PS+ Aux. Control Power (+)
(6)
PS- Aux. Control Power (–)
(6)
PE PE Ground PE Ground
PE PE Ground PE Ground
(1) Important: 0-20 mA operation requires a jumper at terminals 17 and 18 (or 19 and 20). Drive damage may occur if jumper is not installed.
(2) Contacts in unpowered state. Any relay programmed as Fault or Alarm will energize (pick up) when power is applied to drive and deenergize (drop out) when a fault or
alarm exists. Relays selected for other functions will energize only when that condition exists and will deenergize when condition is removed.
(3) These inputs/outputs are dependant on a number of parameters. For more information, see Chapter 3, Programming and Parameters, in the
PowerFlex 700 AC Drives User Manual, publication 20B-UM002
.
(4) Differential Isolation - External source must be maintained at less than 160V with respect to PE. Input provides high common mode immunity.
(5) 150 mA maximum Load. Not present on 115V versions.
(6) For more information, see the Auxiliary Control Power Supply section of the PowerFlex 700 Adjustable Frequency AC Drive - Frames 7…10 Installation Instructions,
publication 20B-IN014
.
