• The user has selected a channel number that does not exist or is
not subscribed to.
- The unit will revert back to the previously selected channel.
• There is no artist name/feature, song/program title, or additional
information associated with the channel at that time.
- No action needed.
• If an error or other problem occurs.
- Change channels or consult your Alpine dealer.
• The iPod is not connected.
- Make sure the iPod is correctly connected (refer to
“Connections”).
Make sure the cable is not bent excessively.
• The iPod’s battery remains low.
- Refer to the iPod’s documentation and charge the battery.
• There are no songs in the iPod.
- Download songs to the iPod and connect to this unit.
• There is no podcast data in the iPod.
- Download podcast data to the iPod and connect to this unit.
• Communication error
- Turn the ignition key off, and then set to ON again.
- Check the display by reconnecting between the iPod and the
adapter, using the iPod cable.
• Caused by the iPod Software Version not being compatible with
this unit.
- Update the iPod Software Version to be compatible with this
unit.
Specifications
FM TUNER SECTION
AM TUNER SECTION
CD PLAYER SECTION
PICKUP
GENERAL
CHASSIS SIZE
NOSEPIECE SIZE
• Due to continuous product improvement, specifications and design
are subject to change without notice.

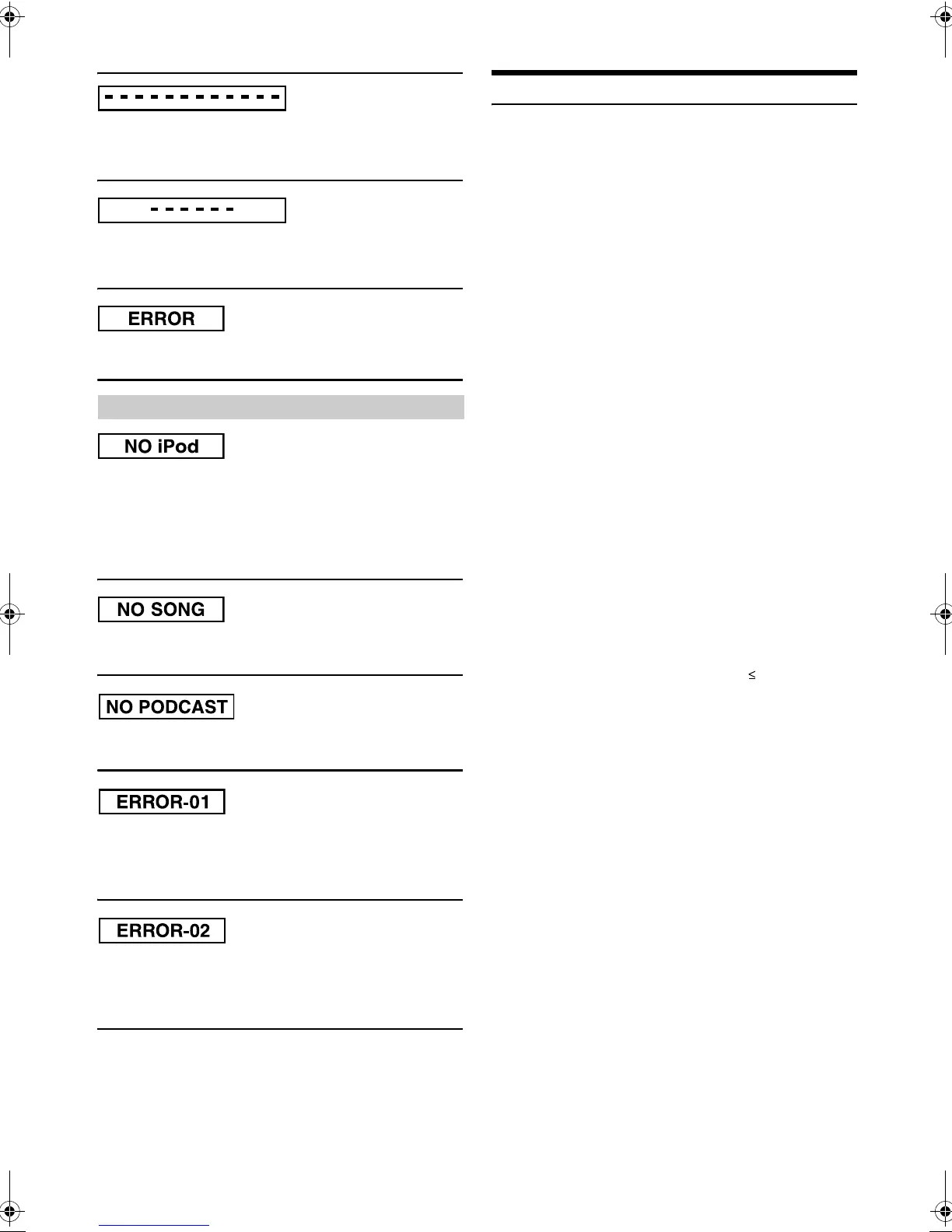

Indication for iPod Mode
Tuning Range 87.7-107.9 MHz
Mono Usable Sensitivity 9.3 dBf (0.8 µV/75 ohms)
50 dB Quieting Sensitivity 13.5 dBf (1.3 µV/75 ohms)
Alternate Channel Selectivity 80 dB
Signal-to-Noise Ratio 65 dB
Stereo Separation 35 dB
Capture Ratio 2.0 dB
Tuning Range 530-1,710 kHz
Sensitivity (IEC Standard) 22.5 µV/27 dB
Frequency Response 5-20,000 Hz (±1 dB)
Wow & Flutter (% WRMS) Below measurable limits
Total Harmonic Distortion 0.008% (at 1 kHz)
Dynamic Range 95 dB (at 1 kHz)
Signal-to-Noise Ratio 105 dB
Channel Separation 85 dB (at 1 kHz)
Wave length 795 nm
Laser power CLASS I
Power Requirement 14.4 V DC
(11-16 V allowable)
Power Output 18 W RMS × 4*
*Primary amplifier ratings per CEA-2006 Standard
• Power output: measured at 4 Ohms and 1% THD+N
• S/N: 80 dBA (reference: 1 W into 4 Ohms)
Maximum Pre-Output Voltage 2 V/10 k ohms
Bass +14/-14 dB at 100 Hz
Treble ±14 dB at 10 kHz
Weight 1.6 kg (3 lbs. 8 oz)
Width 178 mm (7")
Height 50 mm (2")
Depth 162 mm (6-3/8")
Width 170 mm (6-3/4")
Height 46 mm (1-13/16")
Depth 24 mm (15/16")
