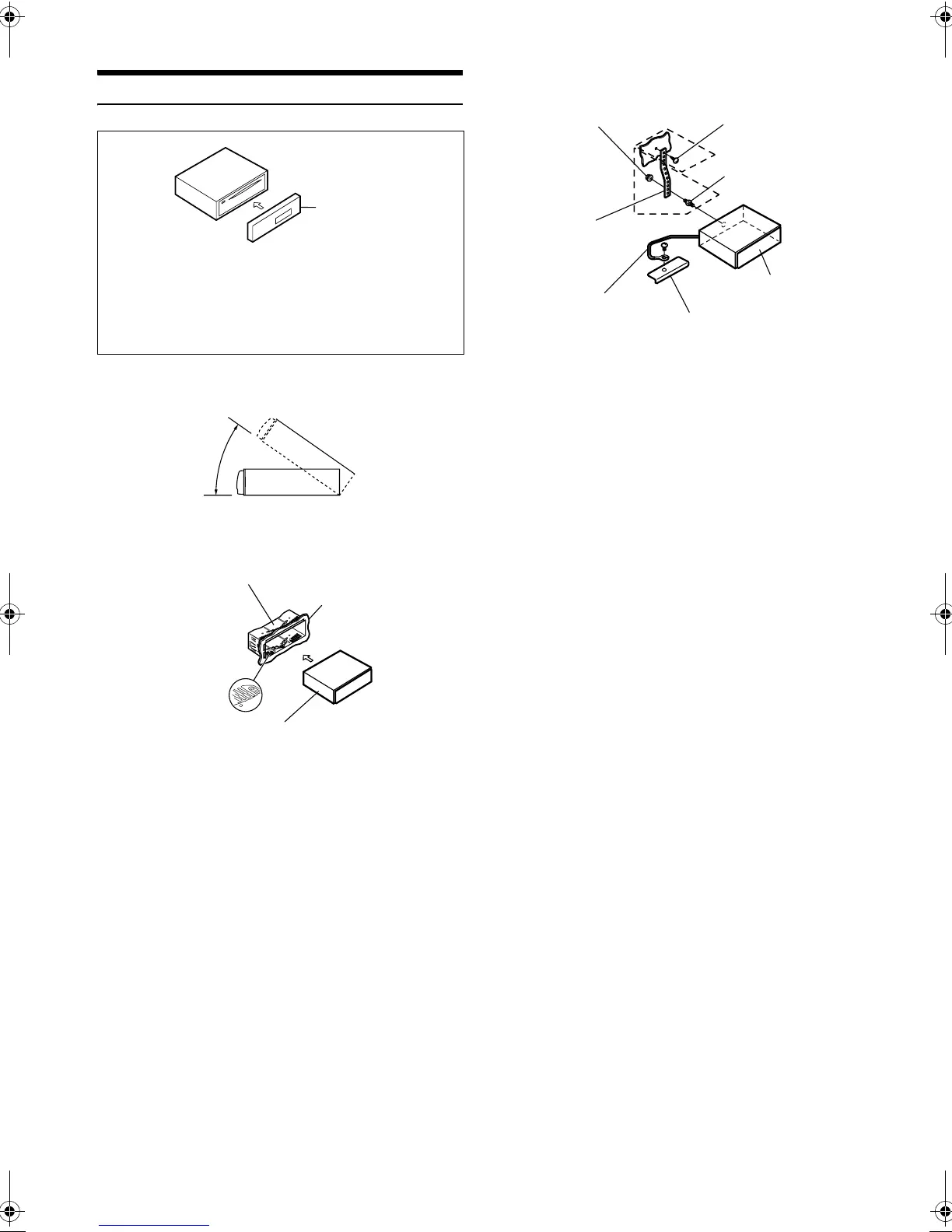

Installation
• The main unit must be mounted within 35 degrees of the horizontal
plane, back to front.
Caution
When you install this unit in your car, do not remove the
detachable front panel.
If the detachable front panel is removed during installation, you
might press too hard and warp the metal plate that holds it in
place.
1
* If the installed mounting sleeve is loose in the dashboard, the
pressure plates may be bent slightly to remedy the problem.
Remove the mounting sleeve from the main unit
(see “Removal” on page 33).
Detachable Front
Panel
Less than 35°
Mounting Sleeve
(Included)
Dashboard
This unit
Pressure Plates*
2
Reinforce the head unit with the metal mounting
strap (not supplied). Secure the ground lead of the
unit to a clean metal spot using a screw (*
1
) already
attached to the vehicle’s chassis.
• For the screw marked “*
2
”, use an appropriate screw for the chosen
mounting location.
Connect each input lead coming from an amplifier or
equalizer to the corresponding output lead coming
from the left rear of the CDA-9883. Connect all other
leads of the CDA-9883 according to details
described in the CONNECTlONS section.
Hex Nut (M5) Screw
Bolt Stud
This unit
Chassis
Ground Lead
Metal
Mounting
Strap
*
2
*
1
68-08564Z10-A_F.book Page 32 Tuesday, November 21, 2006 8:53 AM

Alpine CDA-9883 Specifications

General

Type	CD Receiver
DIN Size	1 DIN
Faceplate Security	Detachable
Peak Power Output	50 watts x 4 channels
RMS Power Output	18 watts x 4 channels
Preamp Outputs	3 Pairs
Subwoofer Output	Yes
Display Type	LCD
AUX Input	Yes
iPod Compatibility	Yes
CD-R/RW Playback	Yes
MP3 Playback	Yes
WMA Playback	Yes
ID3 Tag Display	Yes
Tuner	AM/FM
Radio Data System (RDS)	Yes
AAC Playback	Yes
USB Input	No
iPod Control	Yes
Detachable Faceplate	Yes
Remote Control	Yes
Bluetooth Ready	Yes (with optional adapter)
Preamp Voltage	4V
