18-EN

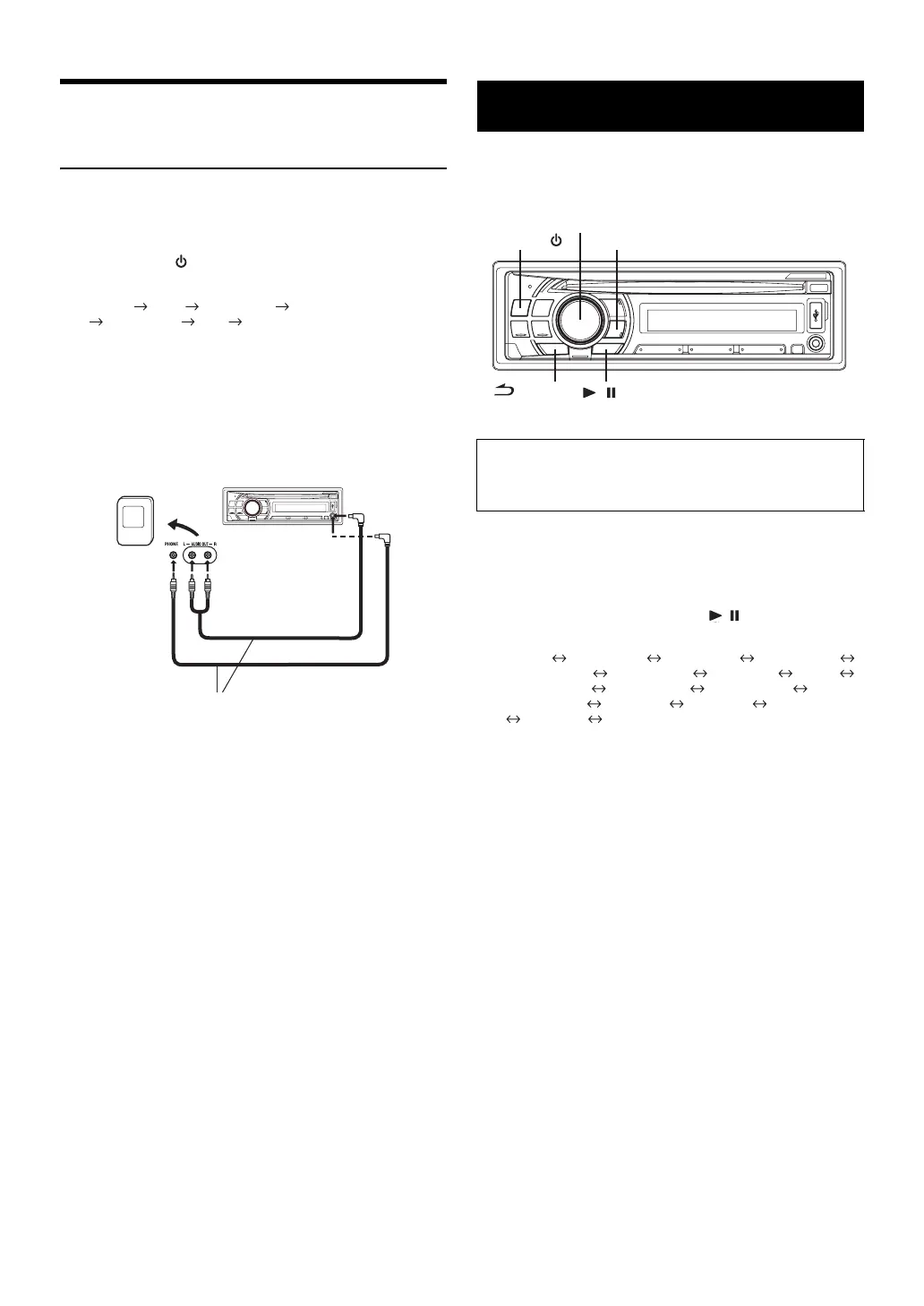

Using the Front AUX Input Terminal
(CDE-102Ri/CDE-103BT/CDE-104BTi
only)
Connect a portable music player, etc. by simply connecting it to the
input on the front panel. An optional adapter cable is required (standard
RCA to 3.5ø mini-phono plug or 3.5ø to 3.5ø mini phono plug).
Press SOURCE/ , and select the AUX mode to listen to
the portable device.
TUNER DISC USB AUDIO iPod*
1
/AUX+*
2
BT AUDIO*
3
AUX TUNER
*
1
Only when the iPhone/iPod is connected and AUX+ SETUP is set to
OFF, refer to
“Setting the AUX+ SETUP Mode” (page 20).
*
2
Displayed only when AUX+ SETUP is set to ON, refer to “Setting the
AUX+ SETUP Mode” (page 20).
*
3
Only for CDE-101R/CDE-101RM/CDE-102Ri and BT IN is set to BT
ADAPTER. Refer to
“Bluetooth Setting” (page 19).
• If a USB memory is directly connected to the USB terminal, the size
or shape may interfere with driving operations, therefore, avoid
connecting an AUX input terminal and a USB memory at the same
time.
You can flexibly customize the unit to suit your own preferences and
usage. From the SETUP menu, Sound Customizing, Visual
Customizing, etc., can be modified.
* The illustrator is for CDE-104BTi.
1
Press and hold FUNC./SETUP for at least
2 seconds to activate the SETUP mode.
2
Turn the Rotary encoder to select the desired
SETUP menu, and then press
/ /ENT.
(e.g. Select SUBWOOFER)
BT IN*
1
PLAY MODE INT MUTE*
2
AUX+ SETUP
AUX+ NAME*
3
AUX NAME*
4
POWER IC DEMO
SUBWOOFER SUBW SYS*
5
ILLUMINATI*
6
SCROLLTYPE TEXT SCR FM-LEVEL REGIONAL*
7
PI SEEK*
8
BT IN
*
1
Displayed only when INT MUTE is set to OFF, and the mode is set to
other than BT AUDIO.
*
2
Displayed only when BT IN is OFF.
*
3
Displayed only when AUX+ SETUP is ON.
*
4
CDE-102Ri/CDE-103BT/CDE-104BTi only.
*
5
Displayed only when SUBWOOFER is ON.
*
6
CDE-102Ri/CDE-103BT only.
*
7
Refer to “Receiving RDS Regional (Local) Stations” (page 10).
*
8
Refer to “PI SEEK Setting” (page 10).
3
Turn the Rotary encoder to change the setting.
(e.g. Select SUBW ON or SUBW OFF.)
Portable player, etc.
Main unit
Optional adapter cable (RCA pin
plugs [red, white] 3.5ø miniplugs)
or (3.5ø miniplugs).
or
SETUP
Use steps 1 to 4 to select one of the SETUP modes to
modify. See the applicable section below for details
about the selected SETUP item.
//ENT
/SOUND
FUNC./SETUP
SOURCE/
Rotary encoder (AUDIO)
