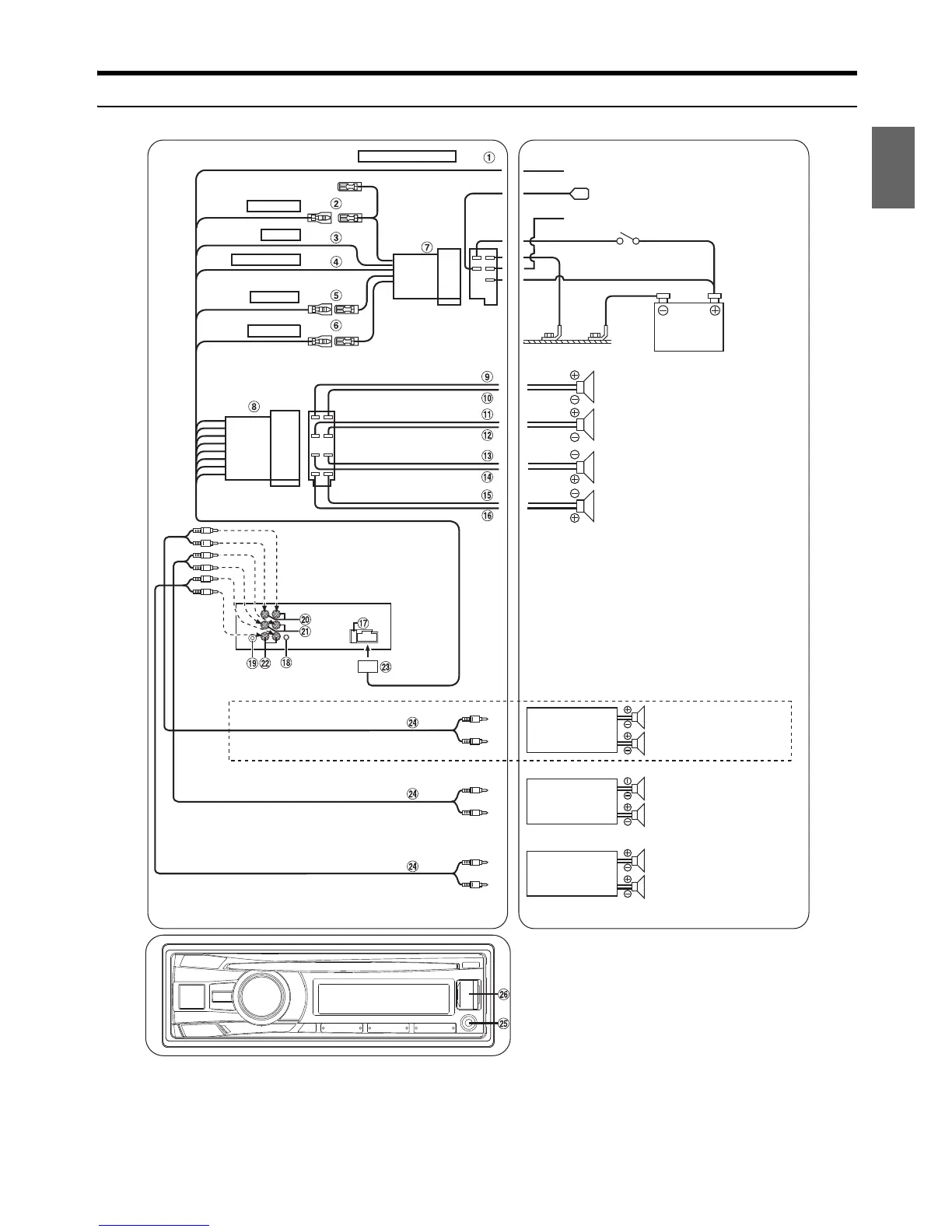

Connections
* When Subwoofer is OFF: Output is for Rear speakers. When Subwoofer is ON: Output is for Subwoofer.
For details on how to set the Subwoofer to ON/OFF, refer to “Turning Subwoofer ON/OFF” on page 16.
REMOTE TURN-ON
IGNITION
GND
POWER ANT
DIMMER
BATTERY
Rear
(CDE-182R only)
Front
(CDE-181 Series/CDE-180 Series only)
Amplier
To amplier
To power antenna
To the instrument cluster illumination lead
Ignition Key
(Blue/White)
(Red)
(Black)
(Blue)
Amplier
Amplier
Battery
Speakers
Rear Left
Front Left
Front Right
Rear Right
Speakers
Front (CDE-182R only)
Subwoofers
(CDE-182R only)
Rear or Subwoofers*
(CDE-181 Series/CDE-180 Series only)
(Green)
(Green/Black)
(White)
(White/Black)
(Grey/Black)
(Grey)
(Violet/Black)
(Violet)
(Orange)
(Yellow)
