Alpine TDM-7529T User Manual

TDM-7529T/F
TDM-7526T/WiF

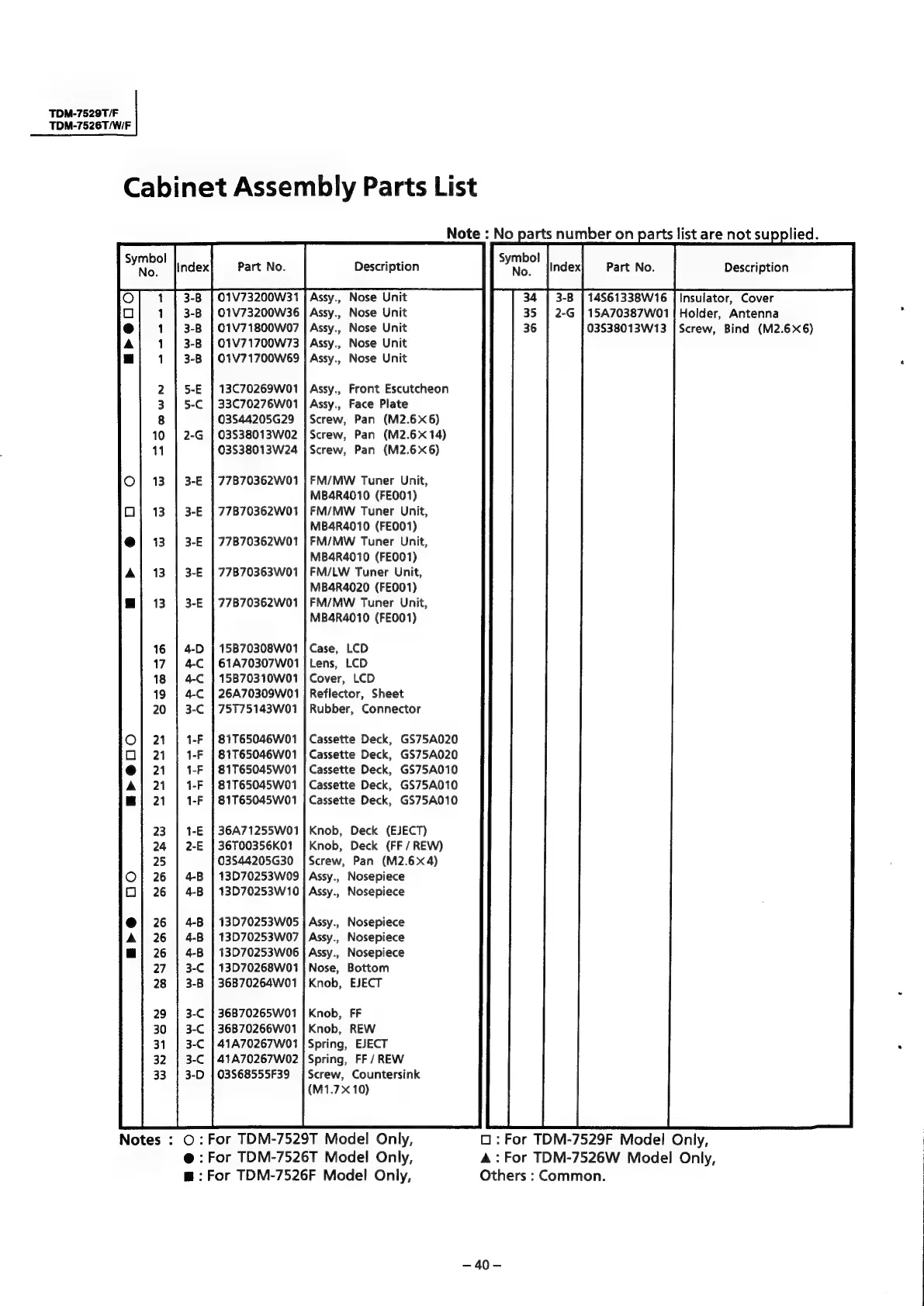

Cabinet Assembly Parts List
Note : No parts number on parts list are not supplied.
|
Symbol
wR
oe
Nace
ac
01V73200W31 | Assy., Nose Unit 14S61338W16 | Insulator, Cover
01V73200W36 | Assy., Nose Unit 15A70387W01 | Holder, Antenna
01V71800W07 | Assy., Nose Unit 03538013W13 | Screw, Bind (M2.6X6)
01V71700W73 | Assy., Nose Unit
01V71700W69 | Assy., Nose Unit
13C70269W01
33C70276W01
03844205G29
03$38013W02
03S38013W24
Assy., Front Escutcheon
Assy., Face Plate
Screw, Pan (M2.6X 6)
Screw, Pan (M2.6x 14)
Screw, Pan (M2.6X6)
77B70362W01 FM/MW Tuner Unit,
MB4R4010 (FEO01)
FM/MW Tuner Unit,
MB4R4010 (FEQ01)
FM/MW Tuner Unit,
MB4R4010 (FEO01)
FM/LW Tuner Unit,
MB4R4020 (FE001)
FM/MW Tuner Unit,
MB4R4010 (FEO01)
77B70362W01
77B70362W01
77B70363W01
77B70362W01
15B70308W01
61A70307W01
15B70310W01
26A70309W01
75T75143W01
Case, LCD
Lens, LCD
Cover, LCD
Reflector, Sheet
Rubber, Connector
81T65046W01
81T65046W01
81T65045W01
81T65045W01
81T65045W01
Cassette Deck, GS75A020
Cassette Deck, GS75A020
Cassette Deck, GS75A010
Cassette Deck, GS75A010
Cassette Deck, GS75A010
36A71255W01
36T00356K01
03844205630
13D70253W09
13D70253W10
Knob, Deck (EJECT)
Knob, Deck (FF / REW)
Screw, Pan (M2.6x4)
Assy., Nosepiece
Assy., Nosepiece
13D70253W05
13D70253W07
13D70253W06
13D70268W01
36B70264W01
Assy., Nosepiece
Assy., Nosepiece
Assy., Nosepiece
Nose, Bottom
Knob, EJECT
36B70265W01
36B70266W01
41A70267W01
41A70267W02
03S68555F39
Knob, FF
Knob, REW
Spring, EJECT
Spring, FF/REW
Screw, Countersink
(M1.7 X 10)
Notes : ©: For TDM-7529T Model Only, O: For TDM-7529F Model Only,
@ : For TDM-7526T Model Only, A: For TDM-7526W Model Only,
m : For TDM-7526F Model Only, Others : Common.
