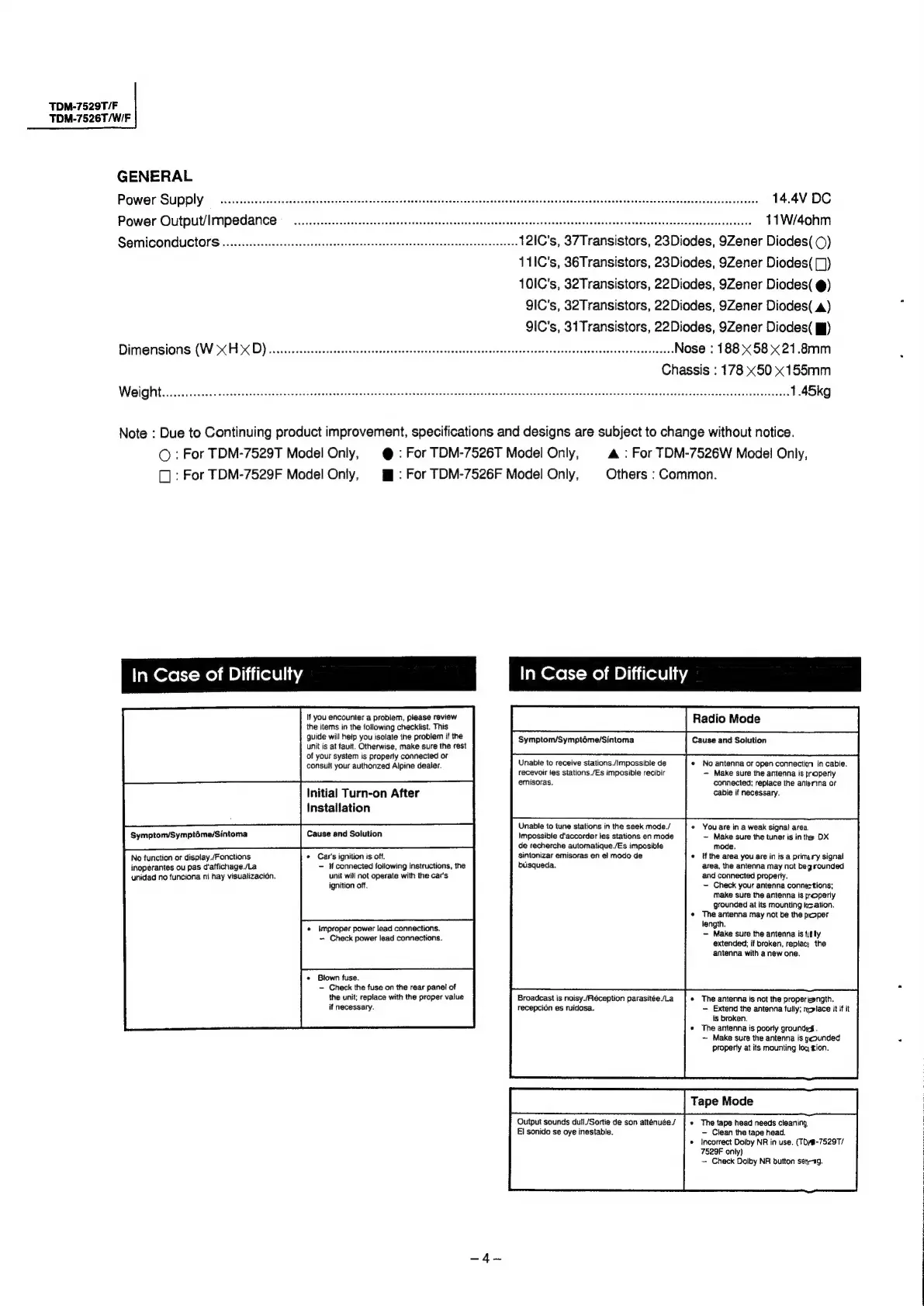

Alpine TDM-7529T User Manual

TDM-7529T/F
TDM-7526T/W/F
GENERAL
POWer. SUDDIY. © ieiitiesii eesvcbesestececasscctbicdsccesttad ora tig ea ctelaiatatocdavavicatas sbodasotaaseytat eaebauctipeasdiveveurspug apcolee beaten 14.4V DC
Power Output/liMPedance < covets. cee caieicacatassscssesedtuadecsisthunsunissaceteeuaateastcactacensctaesde dabasesausinsattciacessesteeuedees 11W/4ohm
SOMICONGUCHOLS .......c.cccceccescessesssnsecececceseesceeecasesecseescesetsneeeneeaeeaties 12IC's, 37Transistors, 23Diodes, 9Zener Diodes( ©)
11IC's, 36Transistors, 23Diodes, 9Zener Diodes([])
10IC's, 32Transistors, 22Diodes, 9Zener Diodes( @)
9IC's, 32Transistors, 22Diodes, 9Zener Diodes( a)
9IC's, 31 Transistors, 22Diodes, 9Zener Diodes( jm)
DimO@nsioniS:(W XH X D) vicscie esis, eceicecvesesezevsges Stzeenevntdsetbenneslsnquedearececeesdasezgss onentueenestevepesbeodeas Nose : 18858 x21.8mm
Chassis : 178 x50 x155mm
Wola litesisccs acces. Scztes costs teveycevelsas died ghosacvspsattssngscassasbatecsavantetcataacitis Resbvesibeaesecueaingnadinsdaudticessh vtepealt a aueeebn a Reeastesaets 1.45kg
Note : Due to Continuing product improvement, specifications and designs are subject to change without notice.
© : For TDM-7529T Model Only,
( : For TDM-7529F Model Only,
Tam@xetx-MelmPiiioreliag
No function or display./Fonctions e Car's ignition is off.
inopérantes ou pas d'affichage/La - If connected following instructions, the
unidad no funciona ni hay visualizaci6n. unit will not operate with the cars
ignition off.
lf you encounter a problem, please review
the items in the following checklist. This
guide will help you isolate the problem if the
unit is at fault. Otherwise, make sure the rest
of your system is properly connected or
consult your authorized Alpine dealer.
Initial Turn-on After
Installation
e improper power lead connections.
- Check power lead connections.
« Blown fuse.
- Check the fuse on the rear panel of
the unit; replace with the proper value
if necessary.
@ : For TDM-7526T Model Only,
lB : For TDM-7526F Model Only,
A : For TDM-7526W Model Only,
Others : Common.
In Case of Difficulty
Unable to receive stations./Impossible de ¢ No antenna or open connection in cabie.
recevoir les stations./Es imposible recibir - Make sure the antenna is properly
emisoras. connected; repiace the antemna or
cable if necessary.
Unable to tune stations in the seek mode./
Impossible d'accorder les stations en mode
de recherche automatique./Es imposible
sintonizar emisoras en el modo de
busqueda.
You are in a weak signal area.
~ Make sure the tuner is in the: DX
mode.
If the area you are in is a primary signal
area, the antenna may not beg rounded
and connected properly.
~ Check your antenna connections;
make sure the antenna is properly
grounded at its mounting lation.
¢ The antenna may not be the pooper
length.
— Make sure the antenna is tusly
extended; if broken, replac: the
antenna with a new one.
Broadcast is noisy./Réception parasitée/La
recepcion es ruidosa.
The antenna is not the properiesngth.
- Extend the antenna fully; reolace it if it
is broken.
The antenna is poorly grounded .
~ Make sure the antenna is younded
property at its mounting lox gion.
Output sounds dull./Sortie de son atténuée/ } ¢ The tape head needs cleaning,
El sonido se oye inestable. - Clean the tape head.
¢ Incorrect Doiby NR in use. (TDy®-7529T/
7529F only)
—- Check Dolby NR button set-sg.
.
