Alpine TDM-7529T User Manual

Cassette Player Operation
Dolby B NR
(Noise Reduction)
(TDM-7529T/7529F
only)
Press the Dolby NR (00) button in the tape
mode to play a Dolby B NR encoded tape.
The 00 indicator appears and the noise level
becomes low.
Press the Dolby NR (00) button again to
deactivate the Dolby NR mode. The 00
indicator disappears from the display.
M.S. (Music Sensor)
(TDM-7529T/7529F
only)
Press the M.S. button during tape play to
N activate the music sensor mode. The display
shows “M.S.°.
Press to deactivate the music sensor mode.
“M.S.” on the display disappears.
Press the «<4 of ®B button to quickly
fetum to the beginning of the current
Programme or skip to the beginning of next
programme.
The player automaticatly stops and begins
Playback when the beginning of the
programme is reached.
Playing Metal Tapes
Press the METAL button to set playback
equalization for metal or any other “high
bias" tape. The display shows "MTL."
Press the METAL button to deactivate the
metal mode. "MTL* disappears from the
display.
Monitoring Radio Dur-
ing Fast Forwarding or
Rewinding
Press the R.M. button until "A.M." appears
‘on the display. You can listen to a radio
Station during the tape rewinding or fast
forwarding,
Press the R.M. button again to deactivate the
Radio Monitor mode.
Note: The R.M. button will only work in the
TAPE mode.
-11-
TOM-7529T/F
TDM-7526T/W/F
TDM-7529T/F
TDM-7526T/W/F

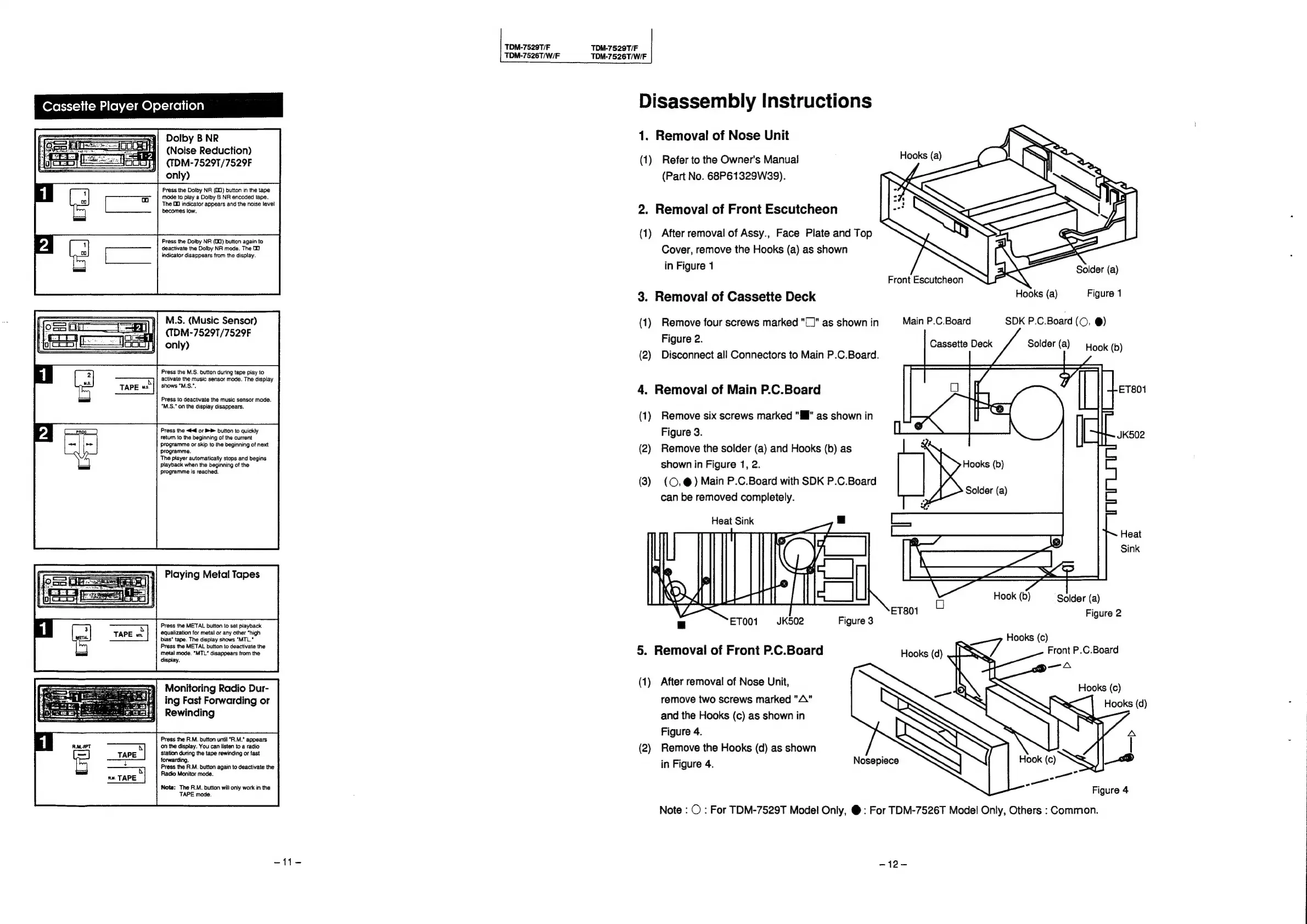

Disassembly Instructions
1. Removal of Nose Unit
(1) Refer to the Owner's Manual
(Part No. 68P61329W39).
2. Removal of Front Escutcheon
(1) After removal of Assy., Face Plate and Top
Cover, remove the Hooks (a) as shown
in
Figure
1
Solder
(a)
3.
Removal
of
Cassette
Deck
Hooks
(a)
Figure
1
(1)
Remove
four
screws
marked
"__)"
as
shown
in
Main
P.C.Board
SDK
P.C.Board
(©,
@)
Figure
2.
Solder
(@)
Hook
6
(2) Disconnect all Connectors to Main P.C.Board.
4. Removal of Main P.C.Board
(1) Remove six screws marked "I" as shown in
Figure 3.
(2) Remove the solder (a) and Hooks (b) as
shown in Figure 1, 2.
(3) (©,@) Main P.C.Board with SDK P.C.Board
can be removed completely.
Heat Sink a
7 oe Heat
StS
Sink
y/
wel +
‘ Al | Lit TT | Ail Hook (b) — Solder (a)
\2
:
ET801
Figure
2
| ET001 JK502 Figure 3
Hooks (c)
5. Removal of Front P.C.Board Hooks (d) </ Front P.C.Board
(1) After removal of Nose Unit,
remove two screws marked "A" Hooks (d)
and the Hooks (c) as shown in
Figure 4. A
(2) Remove the Hooks (d) as shown |
in Figure 4. Nosepiece _—e
—
Figure 4
Note : © : For TDM-7529T Model Only, @ : For TDM-7526T Model Only, Others : Common.
-12—
