AMC UNIKA User Manual

5
www.amcelettronica.com
UNIKA v.1.00

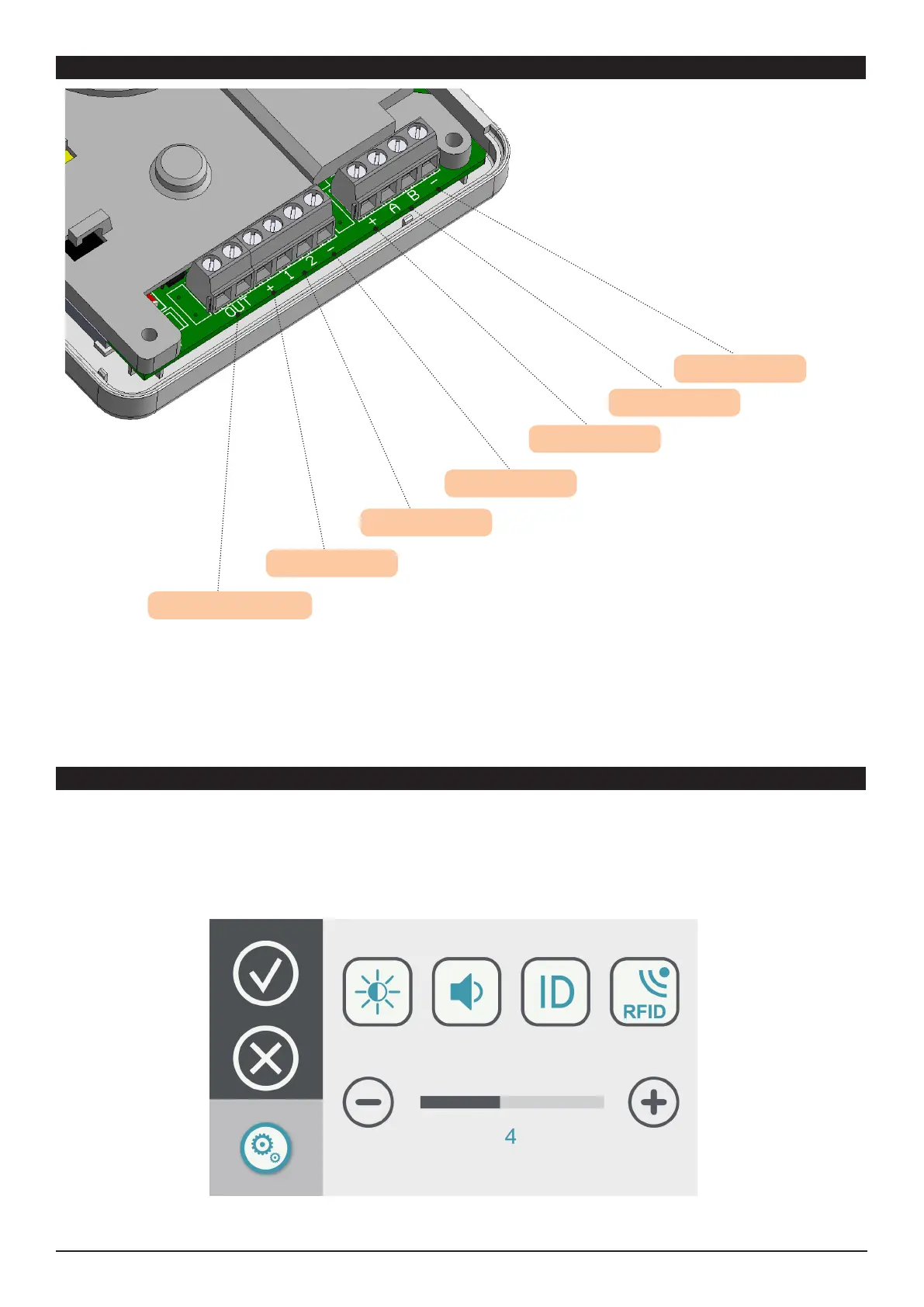

CABLING
relay out (not used)
positive ref.
positive supply
negative ref.
IN/OUT
positive ref.positive ref.negative suply
BUS (A & B)
- Relay out (future use)
- positive reference for connecting sensors and/or conatct
- 1 - 2 input and/or output programmable directely from panel
- negative reference for connecting sensors and/or contact
- A & B RS 485 bus for connection to the panel
CONNECTING PANEL AND START UP
All Unika keypads are configured with address n° 1 (for change address follow the instructions)
Connect the Unika to the bus of panel, withoutpowersupply, A & B and + & -.
After connection power up the panel, if the the Unika is unique keypad connected, after few seconds will show the home screen.
In case there is another different keypad (for ex. K blue) with address n°1 is necessary change the address on UNIKA.
Press with a thin object, ex. screw drive, the high right angle for few seconds (see figure in Home chapter, SETTING AREA).
Select ID for change the address of keypad, use the buttons + & - for modify.

AMC UNIKA Specifications

General

Brand	AMC
Model	UNIKA
Category	Keypad
Language	English
