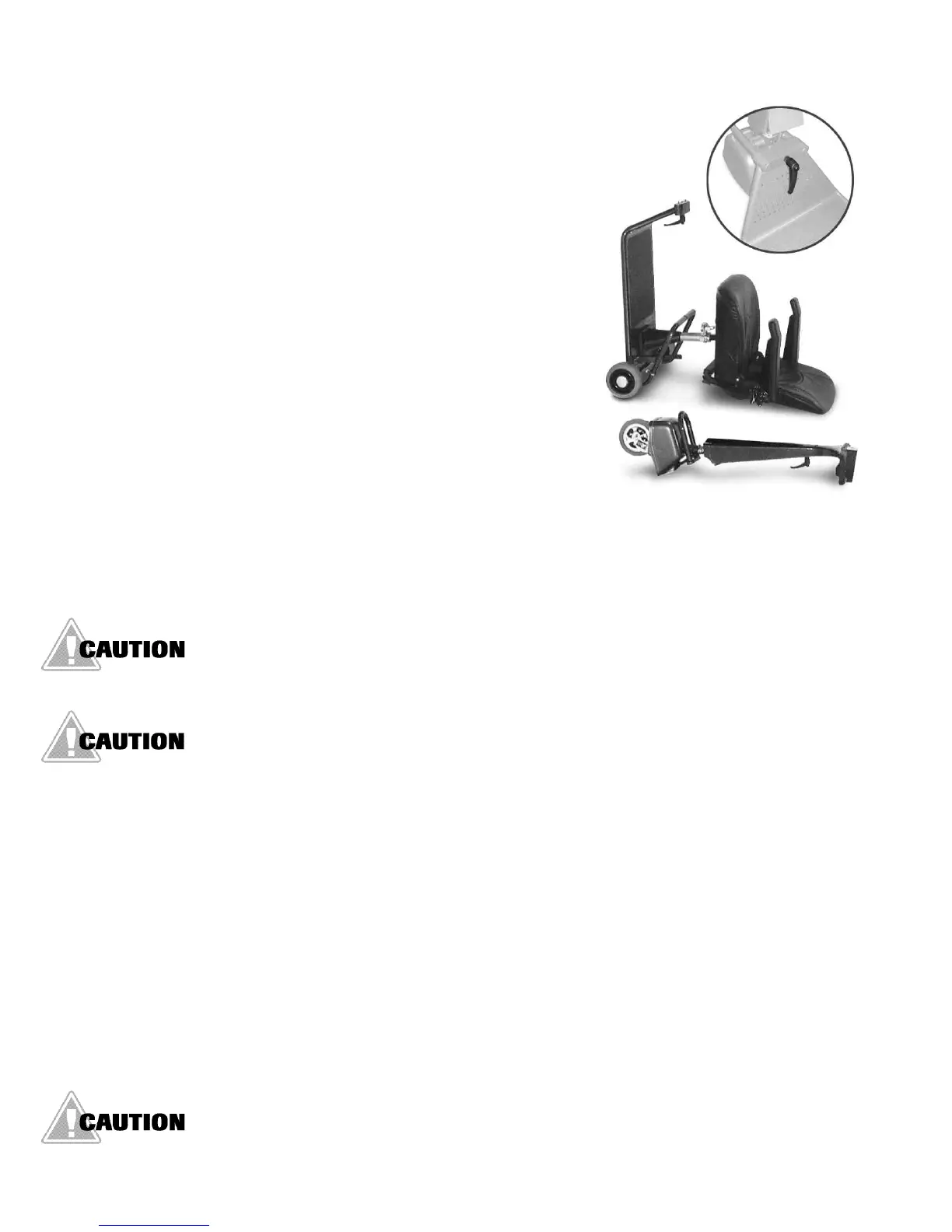

ASSEMBLING YOUR AMIGO
To Assemble the Take Apart Version:
1 Place the Seat in the Seat Post and lock the Seat Lock Lever.
2 Tip Amigo backwards, so it is resting on the Seat back.
3 Lift the Front Assembly (Tiller and Drive Head) up and align the
two posts on the Rear Platform with the two holes on the Front Assembly
(Tiller and Drive Head), keeping both surfaces flush.
4 Turn Take Apart Knob clockwise until tightened (approximately 8 turns).
5 Tip Amigo upright, so it is resting on its wheels.
6 Replace Battery Pack and connect Battery Connector.
Seat Installation
1 Unlock the Seat Lock.
2 Insert the Upper Seat Post into the opening of the Lower Seat Post.
3 Spin Seat around to make sure it rotates freely.
4 To lock the Seat, pull the Seat Lock Lever toward the rear of the Seat.
Battery Pack Installation
1 Set the Battery Case on the Battery Case Hanging Bracket.
2 Center the Battery Case with Handle and swing it into the Handle, ensuring that the Velcro engages
at the bottom of the Battery Case. The Latch on the top of the Battery Case will engage itself.
3 Connect the Battery Power Connector to the Battery Case by aligning the Connector.
ENSURE THE LATCH AND VELCRO ARE FULLY ENGAGED TO AVOID THE
BATTERY CASE DISLODGING DURING OPERATION OR TRANSPORTING.
ENSURE THAT THE BATTERY POWER CONNECTOR IS CONNECTED TO THE BATTERY
CASE SECURELY DURING OPERATION. WHILE CHARGING ENSURE THAT THE BATTERY
CHARGER CONNECTOR IS ATTACHED SECURELY TO THE BATTERY CASE.
To Disassemble and Transport your Amigo
by taking apart the Front Assembly:
1 Turn Amigo OFF.
2 Unplug Battery Connector and remove Battery Pack.
3 Tip Amigo backward, so it is resting on the Seat back..
4 Turn Take Apart Knob counterclockwise (approximately 8 turns), and lift Front Assembly
(Tiller and Drive Head) off Frame.
5 Tip Amigo upright, so it is resting on its wheels.
6 Unlock and remove Seat.
7 Lift Rear Platform into trunk of vehicle. Place parts in trunk.
DO NOT LIFT THE AMIGO CLASSIC TILLER BY THE BATTERY CASE HANDLE.
