Modero X Series® Touch Panels
4
MXD/T-700 7" Modero X Series® Touch Panels
Connector Locations
With the unit facing you, the two USB ports for peripherals are located on the rear right corner of the device (FIG. 3).
The RJ45 connector for PoE is also located on the back of the device.
Memory
The MXT-700 comes with 512 MB of SDRAM and 4 GB of Flash memory, neither of which can be upgraded. A
maximum of 2.4 GB is available to the user for projects.
Basic Operation
The MXT-700 is operated using its integral touchscreen, as well as the Sleep button on the top of the device (FIG. 1). If
the device has gone into its Sleep Mode, a touch of the touchscreen or of the Sleep button will reactivate it.
Powering on the MXT-700
The MXT-700 may be powered on by touching and holding the Sleep button on the top of the device.
MXT-700 Specifications (Cont.)
Audio:
Streaming/File Formats: WAV, MP3
Intercom: Full Duplex VoIP, SIP v2.0 (supported with AMX-CSG)
Operating Environment: • Operating Temperature: 32° F to 104° F (0° C to 40° C)
• Storage Temperature: 4° F to 140° F (-20° C to 60° C)
• Humidity Operating: 20% to 85% RH
• Humidity Storage: 5% to 85% RH
• Power ("Heat") Dissipation: On: 27.3 BTU/hr, Standby: 10.9 BTU/hr
Dimensions (HWD):
5" x 7 5/16" x 4 1/8" (126 mm x 187 mm x 105 mm)
Weight:
1.8 lbs (0.82 Kg)
Certifications: • UL
• FCC Part 15 Class B
• C-Tick CISPR 22 Class B
• CE EN 55022 Class B and EN 55024
• CB Scheme IEC 60950-1
•IC
• IEC/EN-60950
•RoHS
Included Accessories: • MXT-700 Installation Guide (93-5968-03)
• MXA-CLK Modero X Series Cleaning Kit (FG5968-16)
• HPG-10 .75-inch Hydraport .75-IN. Grommet (FG570-01)
• MXA-USB-C USB Cover Kit (FG5968-18)
Other AMX Equipment: • PS-POE-AF-TC, POE Injector, 802.3af Compliant (FG423-83)
• MXA-BT Bluetooth USB Adaptor (FG5968-19)
• MXA-CLK, Modero X Series Cleaning Kit (FG5968-16)
• NXA-ENET8-2POE, Gigabit Switch, 8 Port POE, 2 Port SFP (FG2178-63)

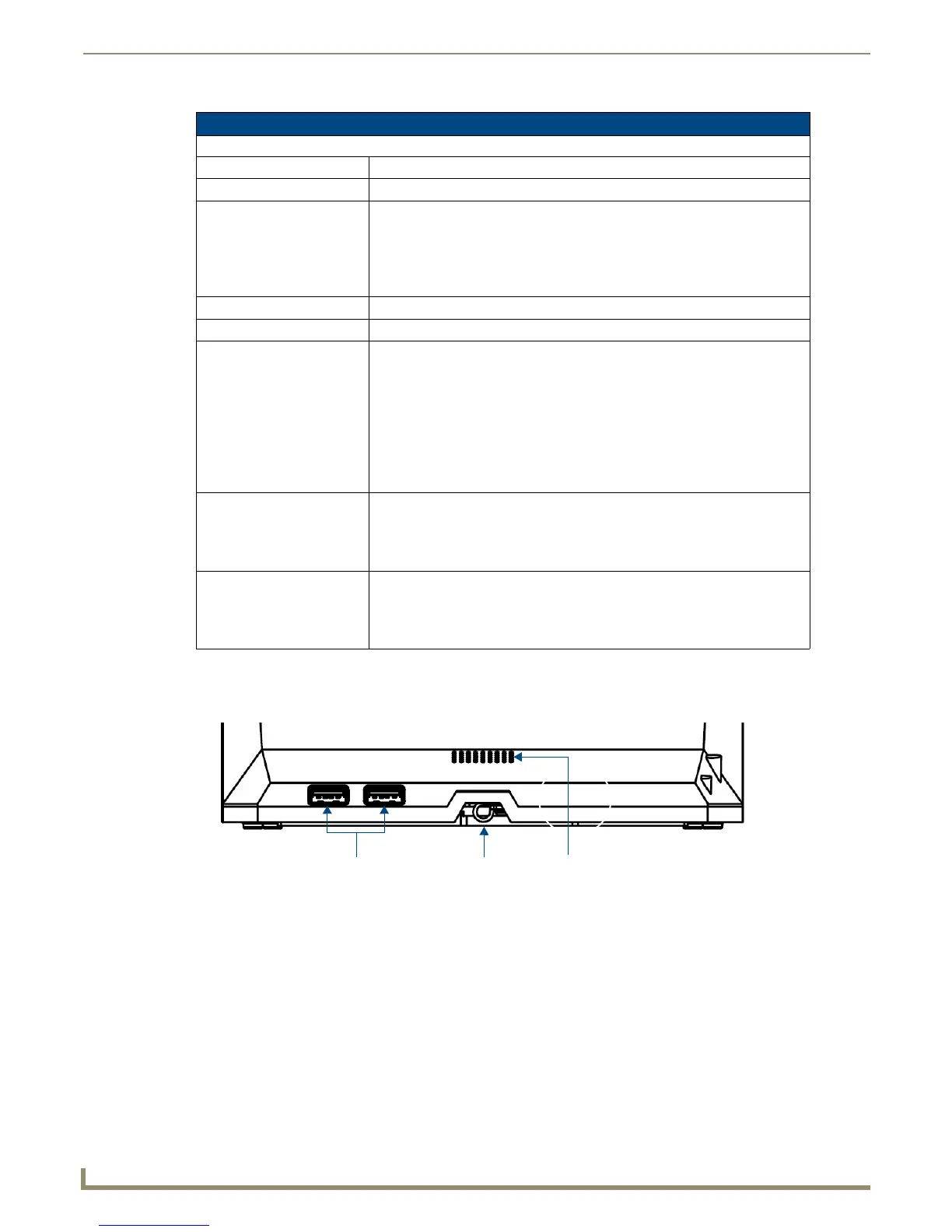

FIG. 3
MXT-700 USB port location
USB Ports
Entry for RJ45/
PoE Cable
Speaker
